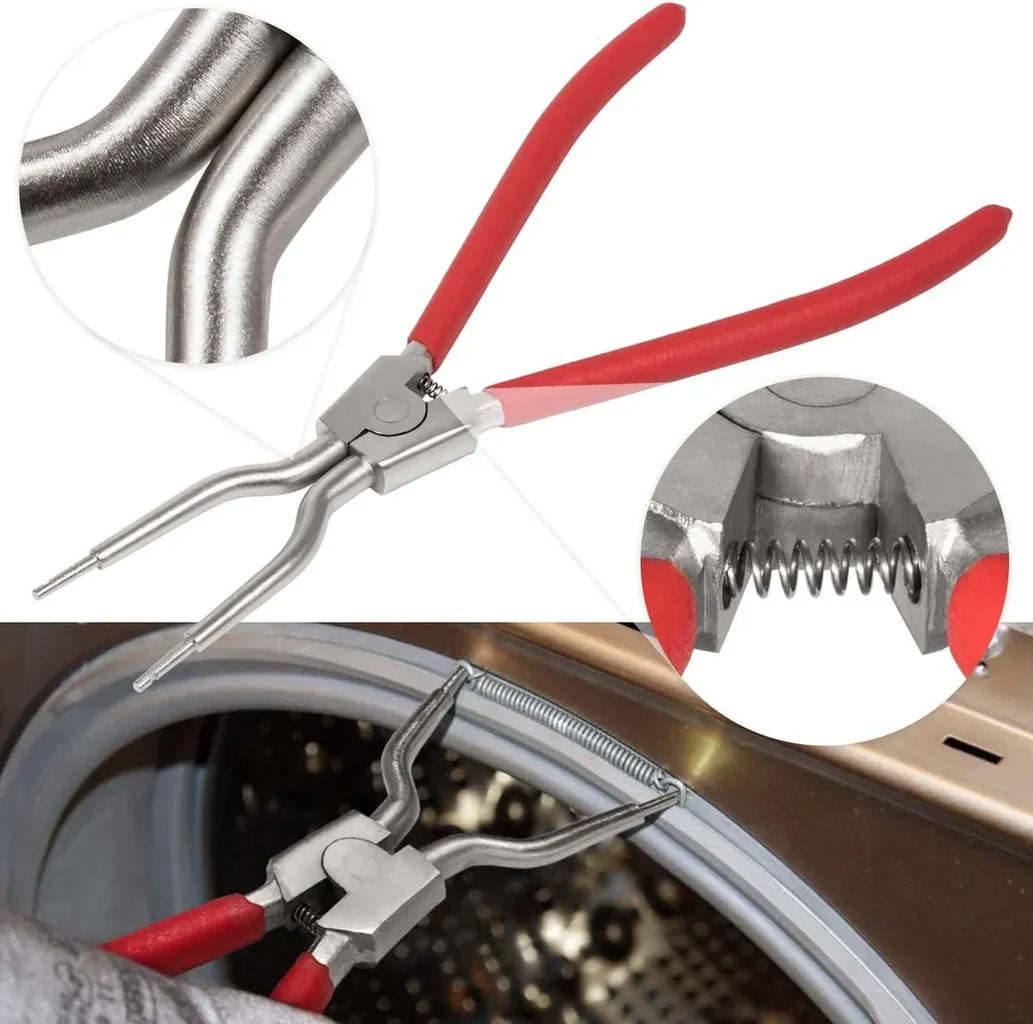

LG Washer Door Boot/bellow Outer Spring Clamp Removal And Installation Pliers 383EER4001A – Superseded by 383EER4001B

Specialized pliers used to remove and install the outer spring clamp securing the door boot/bellow seal to the outer tub of compatible front-load washers. Some sources describe the tool more generally as a washer bellow or gasket spring removal tool.

Is This the Right Part?

Common Symptoms

• Door-boot or bellow replacement work is stalled because the outer retaining spring is difficult to expand safely.
• The retaining clamp cannot be positioned evenly around the outer lip of the door boot during reassembly.
• A generic tool does not properly engage the spring clamp, increasing the risk of slipping or damaging the boot.

Check Before Replacing

• Disconnect power from the washer before service.
• Visually confirm that the work involves the outer spring clamp around the door boot, not the inner boot-retaining ring.
• Inspect the clamp and boot lip for visible displacement, damage, or incomplete seating before attempting removal or installation.
• Confirm that the plier jaws engage the spring clamp securely and are aligned with the clamp before applying controlled force.
• If the clamp or boot appears damaged, stop and follow the washer’s service documentation or use qualified service assistance.

Pro Tip

Part Details

Key Features

• Genuine LG/OEM-designated washer service tool.
• Designed for front-load washer door-boot or bellow spring-clamp service.
• Provides controlled expansion of the outer retaining spring during boot removal and installation.
• Helps reduce slipping and accidental damage compared with improvised tools.

Installation Notes

• This is a service tool rather than a permanently installed appliance component.
• Disconnect the washer from power before servicing the door boot or clamp.
• Wear appropriate hand protection and keep fingers clear of the spring-clamp path while expanding or releasing it.
• Verify the clamp is fully and evenly seated around the boot after installation; consult the washer’s service documentation for model-specific procedures.
• Do not use this part as a substitute for the separate tool used for an inner boot-retaining ring.

Verified Compatible Models

WM2016CW, WM2140CW, WM2350HWC, WM2487HWMA, WM2501HVA, WM2650HWA, WM2688HNM, WM2688HNMA, WM2801HLA, WM3001HRA, WM3360HVCA, WM3400CW, WM3470HWA, WM3997HWA, WM8100HWA

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
