AUTOMOTIVE PART

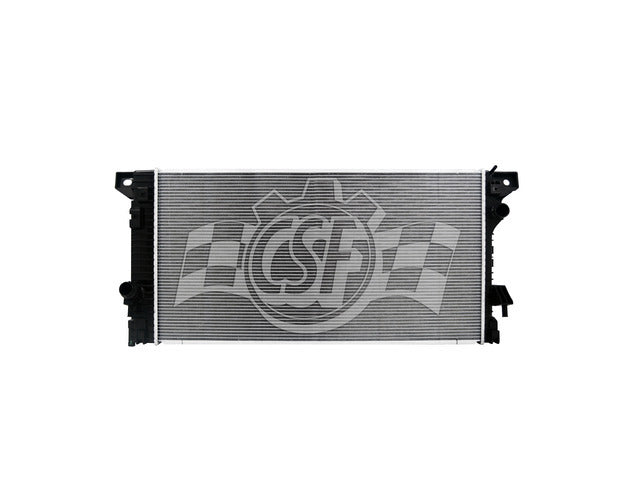

CSF Radiator 3846
Radiator, Aluminum Core
Part 3846CSFRadiator
Match your exact vehicle configuration to the verified applications below.
Confirm the year, make, model, engine, drivetrain and required position before ordering.
Confirm the year, make, model, engine, drivetrain and required position before ordering.
Is This the Right Part?
Manufacturer Part Number3846
ManufacturerCSF
Part TypeRadiator
Part Details
Part Specifications
| Box Height (in) | 8 7/16 |
|---|---|
| Box Length (in) | 45 3/16 |
| Box Weight (lbs) | 17 |
| Box Width (in) | 21 3/4 |
| Core Length (in) | 34 3/4 IN |
| Core Material | Aluminum |
| Core Thickness | 1 1/4 IN |
| Core Width | 17 11/16 IN |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 1/2 Right IN |
| Inlet Length (in) | 18 3/8 |
| Inlet Width (in) | 1 1/2 |
| No. Of Rows | 1 |
| Outlet Diameter | 1 1/2 Left IN |
| Outlet Length (in) | 18 3/8 |
| Outlet Width (in) | 2 5/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. Style Radiator |
Verified Vehicle Fitment
Make: Ford, Lincoln
Model: 3 verified models — see exact combinations below.
Years: 2015–2024 — varies by model and configuration.
Check before ordering: Match the year, make, model, position, and every engine, transmission or other restriction in the same row. Listed years do not apply to every model.
View vehicle applications (6 configuration groups)
| Years | Make | Model | Position | Engine / transmission / notes |
|---|---|---|---|---|
| 2018–2024 | Ford | Expedition | — | Std Duty, Upgraded Heavy Duty Core. 15% Thicker 30mm vs OEM 26mm |
| 2018–2020 | Ford | F-150 | — | Engine: 3.3 V6; w/ Towing Pkg Heavy Duty, Upgraded Heavy Duty Core. 15% Thicker 30mm vs OEM 26mm |
| 2015–2017 | Ford | F-150 | — | Engine: 5.0 V8; w/ Towing Pkg Heavy Duty, Upgraded Heavy Duty Core. 15% Thicker 30mm vs OEM 26mm |
| 2017 | Ford | F-150 | — | Aspiration: Turbo; Engine: 3.5 V6; w/o Towing Pkg, w/ Towing Pkg Medium Duty, Upgraded Multi-fit Model, Upgraded Heavy Duty Core. 15% Thicker 30mm vs OEM 26mm |
| 2018–2020 | Ford | F-150 | — | Engine: 3.5 V6; w/o Towing Pkg, w/ Towing Pkg Medium Duty, Upgraded Multi-fit Model, Upgraded Heavy Duty Core. 15% Thicker 30mm vs OEM 26mm |
| 2018–2021 | Lincoln | Navigator | — | Std Duty, Upgraded Heavy Duty Core. 15% Thicker 30mm vs OEM 26mm |
Source: supplier-verified applications for CSF 3846. A vehicle not listed is not confirmed compatible.
