Supco RCO410 Refrigerator 3-in-1 Relay Overload and Start Capacitor
The Supco RCO410 is a 3-in-1 hard start kit combining the start relay, overload protector, and start capacitor in a single plug-on unit. It fits refrigerator compressors rated at 1/4 to 1/3 HP, 125 VAC. When the start relay fails, the compressor cannot start — the fridge stops cooling entirely, often with a clicking sound every few minutes as the compressor tries and fails to kick on. The RCO410 replaces the original relay and overload in one step, and the added start capacitor gives the compressor extra torque to start reliably — especially on aging or struggling compressors.
Supco Refrigerator RCO410
Is This the Right Part?
Confirm the complete model number before ordering. Similar parts may use different connectors, dimensions, hose positions, electrical ratings, or mounting points.
- Refrigerator not cooling — compressor not running
- Clicking sound every 2–5 minutes as compressor tries to start
- Compressor hums briefly then shuts off
- Fridge warm but evaporator fan still running
- Compressor hot to the touch on the back of the fridge
- Relay rattles when shaken (broken internal contact)
- Part Number: RCO410
- Replaces: HS410 · RCO-410
- Type: 3-in-1 Start Relay, Overload Protector & Start Capacitor
- Horsepower Range: 1/4 – 1/3 HP
- Voltage: 125 VAC
- Compatible Brands: Whirlpool · Kenmore · Maytag · Amana · GE and other brands using 1/4–1/3 HP compressors
- Condition: New — Supco OEM-spec replacement
- Skill Level: Beginner — no special tools required
- Unplug the refrigerator before beginning
- Access the compressor by removing the lower rear access panel

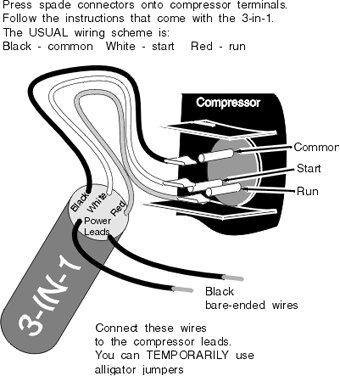

- Pull the old relay/overload off the compressor pins — note orientation before removal
- Shake the old relay — if it rattles, the internal contact is broken and confirms failure

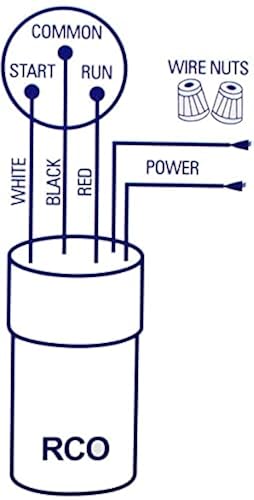

- Plug the RCO410 onto the compressor pins, restore power, and listen for a clean compressor start
Before replacing the relay, shake the old one — if it rattles, the relay is confirmed dead. If it doesn’t rattle, test the compressor windings with a multimeter (start, run, and common pins). A relay that tests bad but a compressor that also tests bad means the compressor itself has failed — and a new relay won’t fix it. Confirm the relay first, then order.
Part Details
Use a qualified technician when diagnosis or installation is outside your experience. Gas parts should be installed by a licensed technician.
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
