Whirlpool Dryer Repair Kit 4392067

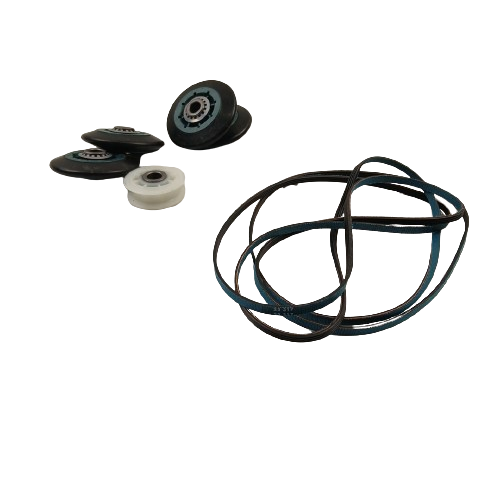

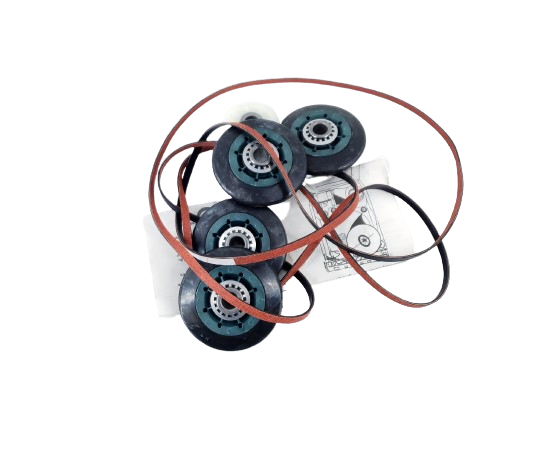

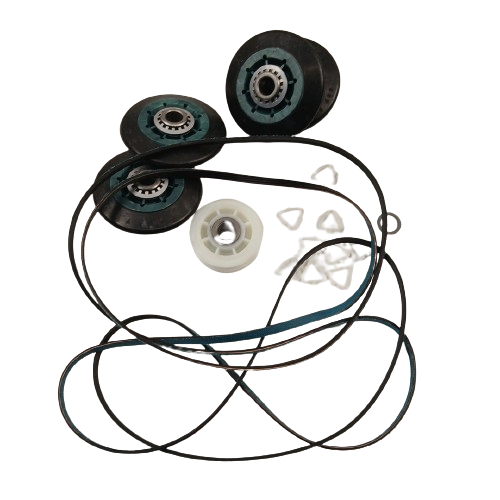

Whirlpool OEM 27-inch dryer repair kit containing a multi-rib drive belt, four drum-support rollers, an idler assembly, roller tri-rings, and a washer.

Is This the Right Part?

Common Symptoms

• Squealing, grinding, or screeching during drum rotation
• Drum not spinning
• Drum movement problems

Check Before Replacing

• With power disconnected, inspect the belt for fraying, stretching, or breakage.
• Rotate the drum by hand and listen for abnormal roller or idler noise.
• Inspect drum-support rollers and the idler pulley for visible wear or rough rotation.
• Verify the model number before installation because not every kit component fits every dryer model listed for the kit.

Pro Tip

Part Details

Key Features

• Whirlpool OEM/Factory Certified repair accessory
• For 27-inch dryers

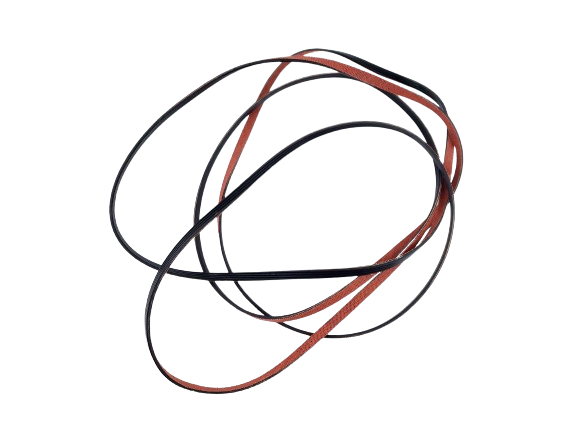

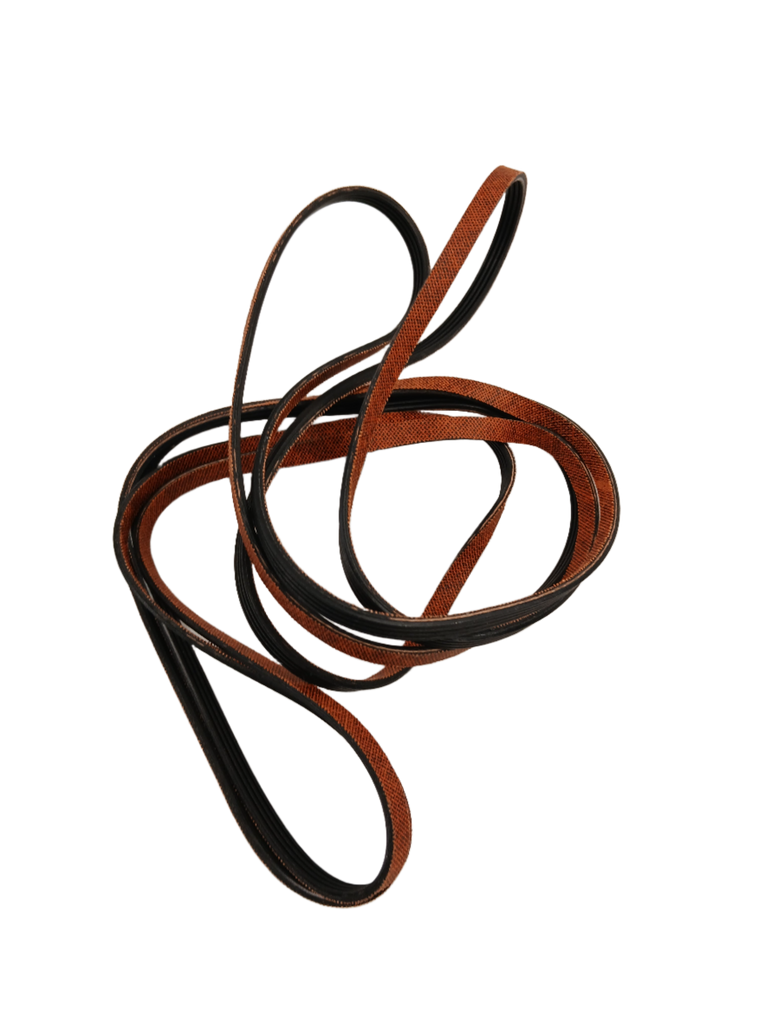

• One multi-rib belt, part 661570

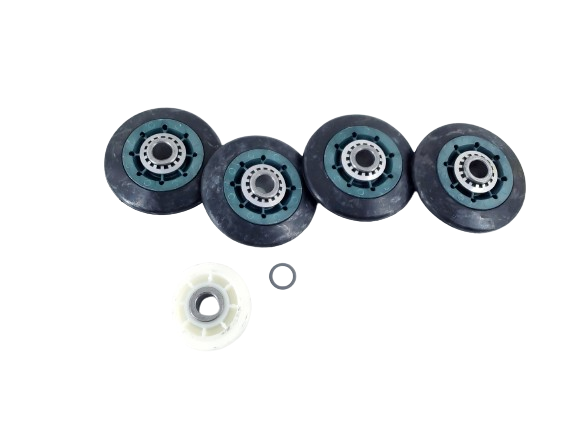

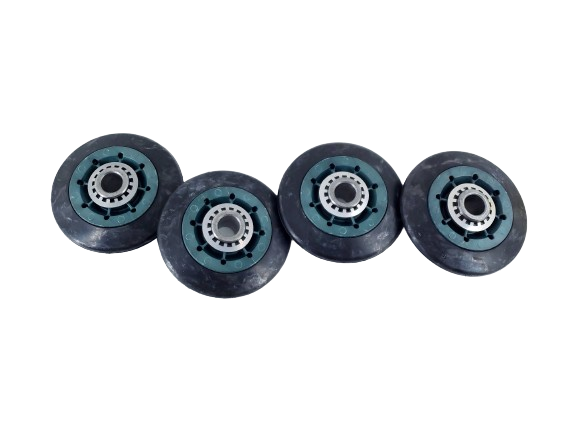

• Four drum-support rollers, part 3396802

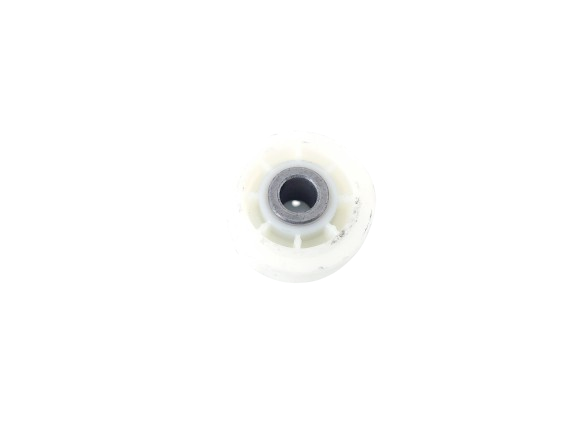

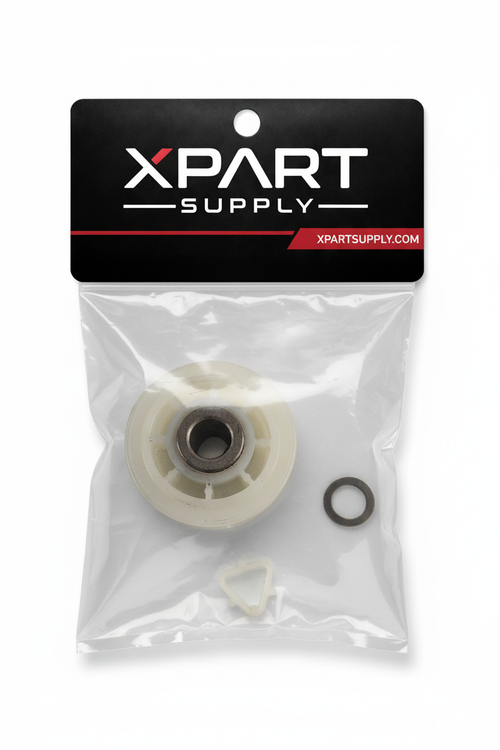

• One idler assembly, part 3388672
• Nine roller tri-rings, part 690997

Installation Notes

• Disconnect power and shut off the dryer circuit breaker before servicing.
• The dryer drum must be removed for installation.
• Basic hand tools are required.
• Confirm exact model compatibility before ordering or installing.

Verified Compatible Models

3LCED9100WQ0, 3LCED9100WQ1, 3LCED9100WQ2, 3LCGD9100WQ0, 3LCGD9100WQ1, 3LCGD9100WQ2, 3LCGD9100WQ3, 3LMEDC100YW0, 3LMEDC100YW1, 3LMEDC100YW2, 3LMEDC300YW1, 3LMEDC300YW2, 3LWED4730FW0, 3LWED4800YQ0, 3LWED4800YQ1, 3LWED4800YQ2, 3LWED4900YW0, 3LWED4900YW2, 3LWED5500YW0, 3LWED5500YW1, 3LWED5500YW2, 3LWGD4800YQ0, 3LWGD4800YQ2, 3LWGD4800YQ3, 3RAED3005TQ0, 3RLEC8600RL0, 3RLEC8600SL0, 3RLEC8600SL1, 3RLEC8600SL2, 3RLEC8646KQ0, 3RLEC8646KQ1, 3RLEC8646KQ2, 3RLEC8646KQ3, 3RLEC8646KQ4, 3RLEQ8000KQ0, 3RLEQ8000KQ1, 3RLEQ8000KQ2, 3RLEQ8000KQ3, 3RLEQ8000KQ4, 3RLEQ8033RW0, 3RLEQ8033SW0, 3RLEQ8033SW1, 3RLEQ8033SW2, 3RLEQ8600WW0, 3RLER5437KQ0, 3RLER5437KQ1, 3RLER5437KQ2, 3RLER5437KQ3, 3RLER5437KQ4, 3RLGR5437KQ1, 3RLGR5437KQ2, 3RLGR5437KQ3, 3RLGR5437KQ4, 3RMED4905TW0, 3RMED4905TW1, 3RMED4905TW2, 3XLEC8647KQ1, 3XLEQ8000KQ0, 3XLEQ8000KQ1, 3XLER5437KQ0, 3XLER5437KQ1, 3XLER5437KQ2, 3XLER5437KQ3, 3XLER5437KQ4, 3XLER5437KQ5, 3XLER5437KQ6, 3XLGR5437KQ1, 3XLGR5437KQ2, 3XLGR5437KQ3, 3XLGR5437KQ4, 3XWED5705SW0, 3XWED5705SW1, 3XWED5705SW2, 3XWED5705SW3, 3XWGD5705SW0, 3XWGD5705SW2, 3XWGD5705SW3, 3XWGD5705SW4, 3XWGD5705SW5, 4GWED5500YW0, 4GWED5500YW1, 4GWED5500YW2, 4GWED5500YW3, 4KMEDC410JW0, 4KMEDC420JW0, 4KMEDC430JW0, 4KMEDC440JW0, 4KNED3100JW0, 4KNED3200JW0, 4KWED4605FW0, 4KWED4705FW0, 4KWED4900BQ0, 4KWED4900BQ1, 4KWED4900BW0, 4KWED4900BW1, 4KWED5600JW0, 4KWED5700JW0, 4KWED5800JW0, 4KWED5900JW0, 7EWED5550YW0, 7EWED5550YW1, 7EWGD1510YM0, 7MGGQ9800ML0, 7MGGQ9800PL0, 7MGGQ9800PL1, 7MGGW9200MW0, 7MGGW9200MW1, 7MGGW9200MW2, 7MGGW9200MW3, 7MGGW9868KL1, 7MGGW9868KQ1, 7MMEDX655EW1, 7MMGD6630HC0, 7MMGD6630HC1, 7MMGD6630HW0, 7MMGD6630HW1, 7MMGE9959TB0, 7MMGE9959TW0, 7MWED81HEDW0, 7MWED90HEFW0, 7MWED90HEFW1, 7MWED90HEFW2, 7MWED5600BW0, 7MWED5620HW0, 7MWED5620HW1, 7MWED6613HC0, 7MWED6613HC1, 7MWED6613HW0, 7MWED6613HW1, 7MWGD72HEDW0, 7MWGD72HEDW1, 7MWGD75HEFW0, 7MWGD81HEDW0, 7MWGD87HEDC0, 7MWGD87HEDC1, 7MWGD90HEFC0, 7MWGD90HEFC1, 7MWGD90HEFW0, 7MWGD90HEFW1, 7MWGD95HEDU0, 7MWGD97HDBD0, 7MWGD1900DW2, 7MWGD5550XW0, 7MWGD5550XW1, 7MWGD5600BW0, 7MWGD5622HW0, 7MWGD5622HW1, 7MWGD5700BC0, 7MWGD5700YW0, 7MWGD5700YW1, 7MWGD6620HW0, 7MWGD6620HW1, 7MWGD6621HC0, 7MWGD6621HC1, 7MWGD7800XW0, 7MWGD8300SW0, 7MWGD8300SW1, 7MWGD8500EC0, 7MWGD8500EC1, 7MWGD8500EC2, 7MWGD8500SR0, 7MWGD8500SR1, 7MWGD8500SR2, 7MWGD8620HC0, 7MWGD8620HC1, 7MWGD8800AW0, 7MWGD8800AW1, 7MWGD9150XW0, 7MWGD9150XW1, 7MWGD9150XW2, 7MWGD9150XW3, 7MWGD9200TQ0, 7MWGD9200TQ1, 7MWGD9270XL0, 7MWGD9270XL1, 7MWGD9270XR0, 7MWGD9270XR1, 7MWGD9400TU0, 7MWGD9400TU1, 7MWGD9400TU2, 8TCEM2760KQ0, 8TCEM2760KQ1, 8TCEP2760KQ0, 8TMGD6630HW0, 8TMGD6630HW1, 8TWED5620HW0, 8TWED5620HW1, 8TWGD5620HW0, 8TWGD5620HW1, 8TWGD6622HW0, 8TWGD6622HW1, 8TWGD8620HW0, 8TWGD8620HW1, 110.C95081402, 110C66112310, 110C67032601, 110C72442512, 110C76112310, 110798328, 1106992310, 11060372710, 11061632610, 11061632611, 11061633611, 11062062101, 11062062102, 11062064101, 11062064102, 11062066101, 11062066102, 11062082101, 11062082102, 11062084101, 11062084102, 11062086101, 11062086102, 11062182102, 11062972101, 11062972102, 11062974101, 11062974102, 11062982101, 11062982102, 11062992101, 11062992102, 11062994101, 11062994102, 11062996101, 11062996102, 11063012101, 11063012102, 11063014100, 11063014101, 11063014102, 11063022100, 11063022101, 11063022102, 11063024100, 11063024101, 11063024102, 11063032100, 11063032101, 11063032102, 11063034100, 11063034101, 11063034102, 11063036100, 11063036101, 11063036102, 11063042100, 11063042101, 11063042102, 11063046101, 11063046102, 11063052100, 11063052101, 11063052102, 11063062100, 11063062101, 11063062102, 11063064100, 11063064101, 11063064102, 11063066100, 11063066101, 11063066102, 11063932100, 11063932101, 11063932102, 11063942100, 11063942101, 11063942102, 11063952100, 11063952101, 11063952102, 11063954100, 11063954101, 11063954102, 11063956100, 11063956101, 11063956102, 11064082200, 11064082201, 11064084200, 11064084201, 11064086200, 11064086201, 11064942300, 11064944300, 11064946300, 11064952300, 11064954300, 11064956300, 11064962300, 11064964300, 11064966300, 11064972300, 11064976300, 11064982300, 11064992300, 11064994300, 11064996300, 11066002010, 11066922500, 11066926500, 11066926501, 11066972501, 11067022710, 11067741600, 11067751600, 11067761600, 11067841600, 11067861600, 11067862600, 11068002011, 11068132411, 11069133411, 11070372710, 11072062101, 11072062102, 11072064101, 11072064102, 11072066101, 11072066102, 11072082101, 11072082102, 11072084101, 11072084102, 11072086101, 11072086102, 11072182100, 11072182101, 11072182102, 11072182103, 11072972102, 11072972103, 11072974102, 11072974103, 11072982102, 11072982103, 11072992101, 11072992102, 11072994101, 11072994102, 11072996101, 11072996102, 11073012100, 11073012101, 11073012102, 11073014100, 11073014101, 11073014102, 11073022100, 11073022101, 11073022102, 11073024100, 11073024101, 11073024102, 11073032100, 11073032101, 11073032102, 11073034100, 11073034101, 11073034102, 11073036100, 11073036101, 11073036102, 11073042100, 11073042101, 11073042102, 11073046100, 11073046101, 11073046102, 11073052100, 11073052101, 11073062100, 11073062101, 11073062102, 11073064100, 11073064101, 11073064102, 11073066101, 11073066102, 11073932101, 11073932102, 11073932103, 11073942100, 11073942102, 11073952100, 11073952101, 11073952102, 11073954100, 11073954101, 11073954102, 11073956100, 11073956101, 11073956102, 11074082200, 11074082201, 11074084200, 11074084201, 11074086200, 11074086201, 11074942300, 11074944300, 11074946300, 11074952300, 11074954300, 11074956300, 11074962300, 11074964300, 11074966300, 11074972300, 11074976300, 11074982300, 11074992300, 11074994300, 11074996300, 11075822400, 11076152500, 11076922501, 11076924500, 11076924501, 11076926502, 11077022710, 11077761600, 11077861600, 11077862600, 11078002010, 11078002011, 11078002012, 11079132411, 11082822102, 11082824102, 11082826102, 11082832100, 11082834100, 11082836100, 11084832200, 11084832201, 11084834200, 11084834201, 11084836200, 11084836201, 11085091400, 11086572501, 11087566601, 11087581601, 11091932511, 11092822102, 11092824102, 11092826102, 11092832100, 11092834100, 11092836100, 11094832200, 11094832201, 11094832202, 11094834200, 11094834201, 11094834202, 11094836200, 11094836201, 11095874402, 11095876402, 11096562500, 11096562501, 11096572500, 11096572501, 11097561601, 11097562601, BSG17B6ANA0, BSG17BVANA0, BSG17CCANA0, CDG8990XW1, CED7464GW1, CED8990XW0, CED8990XW1, CEE2760KQ1, CEE2760KQ2, CEE2790KQ1, CEE2790KQ2, CEM2743BQ0, CEM2745FQ0, CEM2750KQ1, CEM2750KQ2, CEM2750KQ3, CEM2750TQ0, CEM2750TQ2, CEM2760KQ1, CEM2760KQ2, CEM2760KQ3, CEM2760TQ0, CEM2760TQ1, CEM2760TQ2, CEM2763BQ0, CEM2765FQ0, CEM2793BQ0, CEM2795FQ0, CEP2760KQ0, CEP2760KQ1, CEP2760KQ2, CGE2761KQ1, CGE2761KQ2, CGE2791KQ1, CGE2791KQ2, CGM2751KQ2, CGM2751KQ3, CGM2761KQ2, CGM2761KQ3, CGP2761KQ1, CGP2761KQ2, CSP2740KQ0, CSP2740KQ1, CSP2740KQ2, CSP2740KQ3, CSP2741KQ1, CSP2741KQ2, CSP2760KQ0, CSP2760KQ1, CSP2760KQ2, CSP2760KQ3, CSP2761KQ0, CSP2761KQ1, CSP2770KQ1, CSP2770KQ2, CSP2771KQ0, CSP2771KQ1, GEQ8811KQ0, GEQ8811KT0, GEQ8811LG0, GEQ8811LG1, GEQ8811LL0, GEQ8811LL1, GEQ8811LW0, GEQ8811LW1, GEQ8811PG0, GEQ8811PL0, GEQ8811PW0, GEQ8821KQ0, GEQ8821KT0, GEQ8821LL0, GEQ8821LL1, GEQ8821LW0, GEQ8821LW1, GEQ8831LL0, GEQ8831LW0, GEQ8858KQ0, GEQ8858KT0, GEQ9800LG0, GEQ9800LG1, GEQ9800LW0, GEQ9800LW1, GEQ9800PB0, GEQ9800PB1, GEQ9800PG0, GEQ9800PG1, GEQ9800PW0, GEQ9800PW1, GEW9200LL1, GEW9200LQ0, GEW9200LT1, GEW9200LW0, GEW9250PL0, GEW9250PL1, GEW9250PW0, GEW9250PW1, GEW9868KL1, GEW9868KL2, GEW9868KL3, GEW9868KQ1, GEW9868KQ2, GEW9868KQ3, GGW9200LL1, GGW9200LQ0, GGW9200LW0, GGW9200LW1, GGW9250PW0, GGW9250PW3, IES5000RQ0, LEQ8611LW0, LGQ8611LW1, WED8300SW0, WED8500SR0, WED9200SQ0, WED9400SW0, WGD8300SW0, WGD9400SU0, YMEDB750YW2, YWED72HEDW0, YWED8300SW0, YWED9050XW2, YWHD3090GW0, YWHD5090GW0

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
