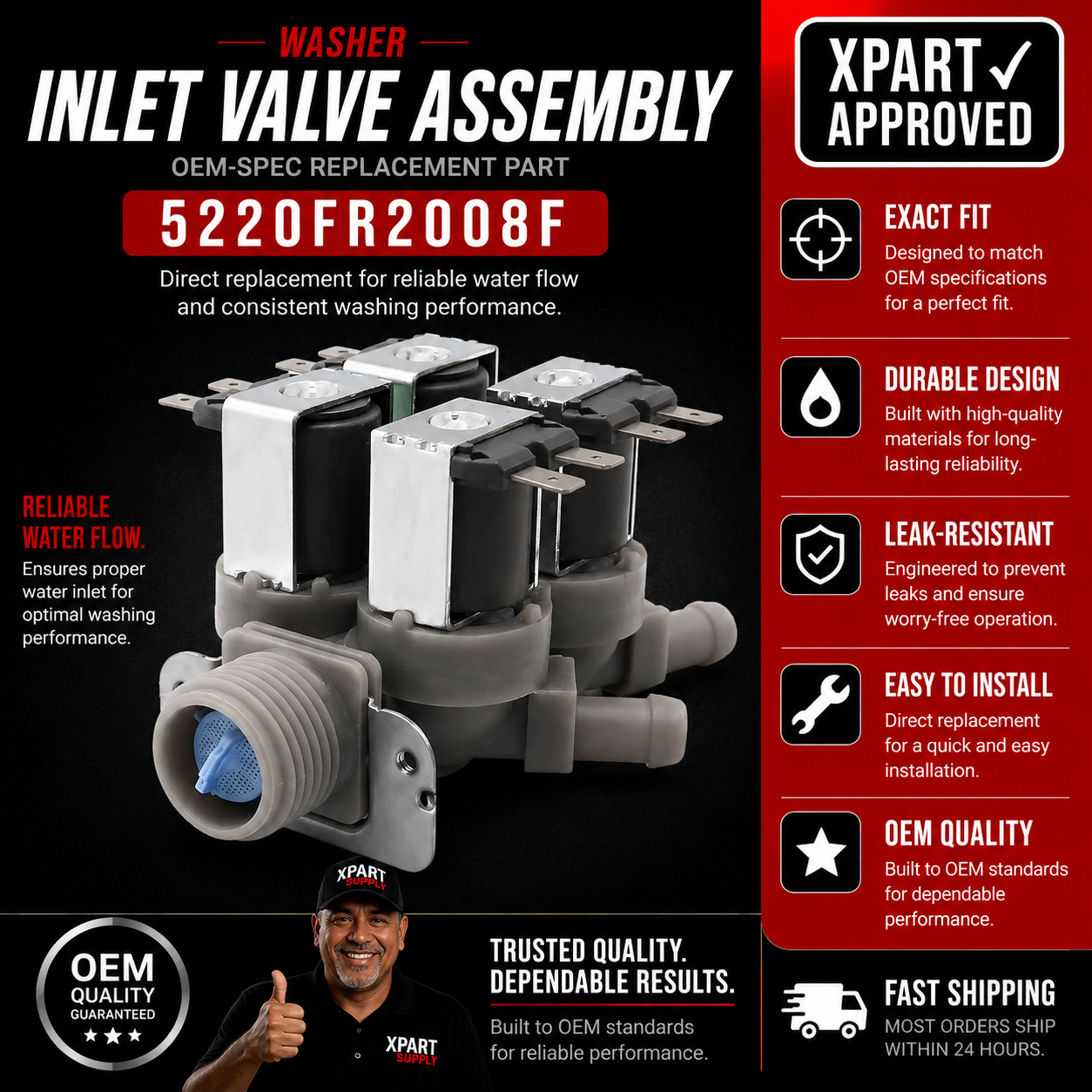

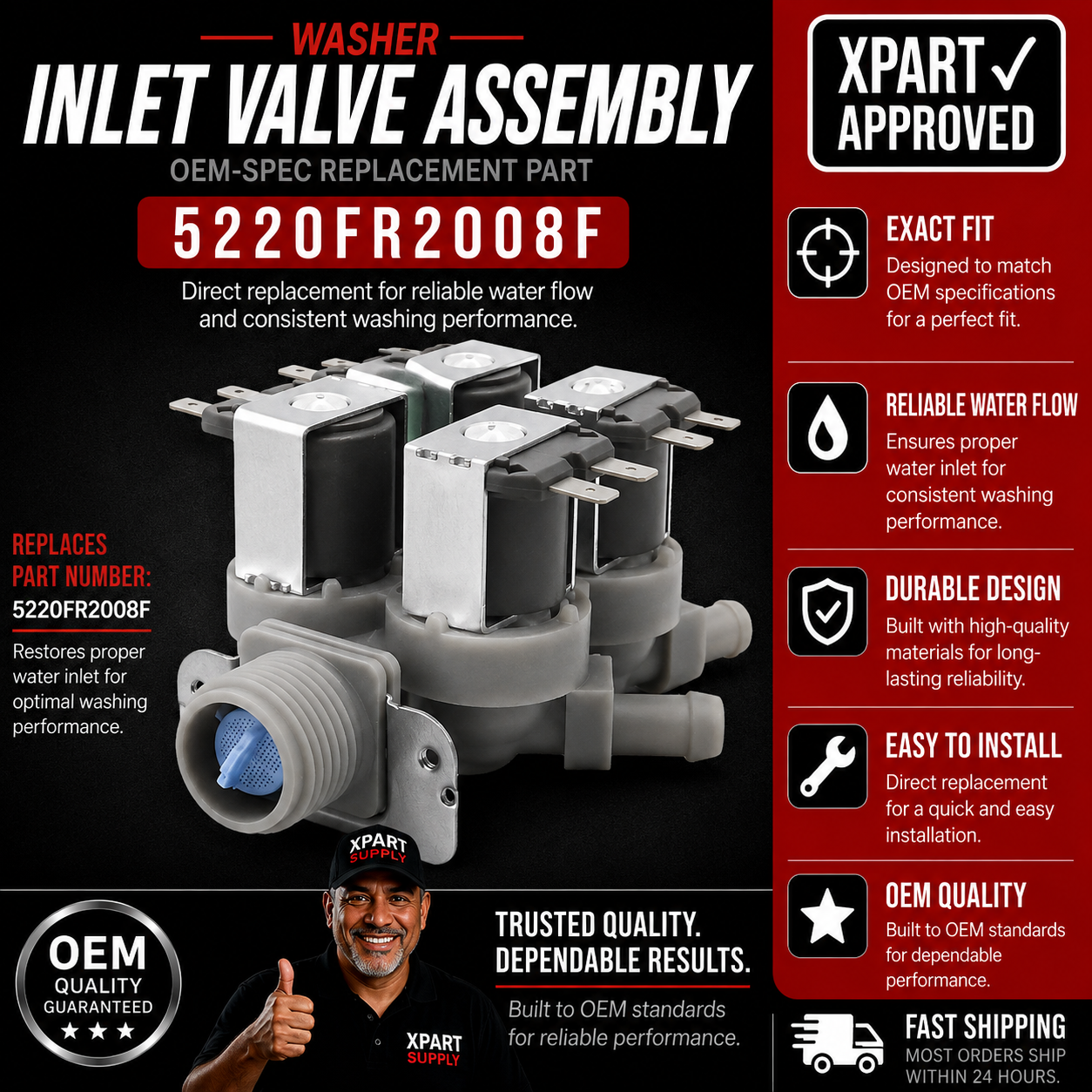

LG Washer Water Inlet Valve Assembly 5220FR2008F, Replaces 5221ER1002B

Genuine LG front-load washer water inlet valve assembly with one inlet and four outlets.

Is This the Right Part?

Common Symptoms

• Washer does not fill properly
• Washer fills slowly
• Water continues entering after the washer is full
• Water leaks into the tub while the washer is not in use
• Water leaking from the inlet-valve area

Check Before Replacing

• Verify that the household water supply is turned on and the inlet screens are not externally obstructed before condemning the valve.
• If the washer continues filling when it should not, disconnect power and water, then inspect the valve assembly for leakage or damage.
• Confirm the replacement has the same one-inlet/four-outlet configuration and connector layout as the installed valve.

Pro Tip

Part Details

Key Features

• Genuine LG OEM part
• Front-load washing-machine inlet valve assembly
• One inlet
• Four outlets
• Sold individually

Installation Notes

• Disconnect electrical power and shut off the washer's water supply before installation.
• Relieve hose pressure and protect against residual water when removing the valve.
• Verify hose routing and electrical connections before restoring water and power.

Verified Compatible Models

F1305FDM, F1314FDS1, F1314FDS2, WD13513BDM, WD13517BDA, WD13517BDM, WM2487HRM, WM2487HWM, WM2487HWMA, WM2688HNM, WM2688HNMA, WM2688HWM, WM2801HRA, WM2801HWA, WM3001HWA, WM3360HRCA, WM2501HVA, 796.41029900, WM3360HRCA-ACREECI, WM2501HWA, 796.41549110, WM2901HVA, WM2487WHM, 796.41542210, WM2487HRMA, WM3001HRA, WM0001HTMA

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
