AUTOMOTIVE PART

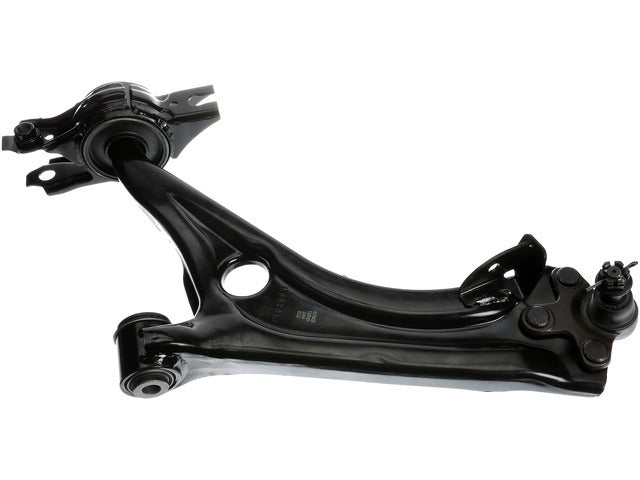

Dorman OE Solutions Control Arm 527-067
Control Arm, OE Solutions
Part 527-067Dorman OE SolutionsControl Arm
Match your exact vehicle configuration to the verified applications below.
Confirm the year, make, model, engine, drivetrain and required position before ordering.
Confirm the year, make, model, engine, drivetrain and required position before ordering.
Is This the Right Part?
Manufacturer Part Number527-067
ManufacturerDorman OE Solutions
Part TypeControl Arm
Part Details
Part Specifications
| Adjustable | No |
|---|---|
| Ball Joint Included | Yes |
| Ball Joint Installed | Yes |
| Ball Joint Mounting Type | Taper |
| Ball Joint Stud Length | 16.8 MM |
| Ball Joint Stud Type | Threaded |
| Ball Joint Thread Diameter | 14 MM |
| Ball Joint Thread Diameter | 14 mm MM |
| Bushing Material | Rubber |
| Bushing Material | Steel |
| Bushing(s) Included | Yes |
| Control Arm Color | Black |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Control Arm Maximum Length | 368 MM |
| Control Arm Maximum Width | 334.7 MM |
| Control Arm Type | Stamped |
| Grade Type | Regular |
| Grade Type | Standard Replacement |
| Grease Fitting Included | No |
| Greaseable | No |
| Mount Hole Diameter | 14.2 mm; 14 mm; 18.5 mm |
| Mount Hole Quantity | 3 |
| Mounting Hardware Included | Yes |
| Mounting Hole Diameter | 14 MM |
| Mounting Hole Diameter | 14.2 MM |
| Mounting Hole Diameter | 18.5 MM |
| Mounting Hole Quantity | 3 |
| Package Contents | 1 Ball Joint |
| Package Contents | 1 Castle Nut |
| Package Contents | 1 Control Arm |
| Package Contents | 1 Cotter Pin |
| Pre-Greased | Yes |
| Suspension Grade Type | Light |
Verified Vehicle Fitment
Make: Honda
Model: 1 verified model — see exact combinations below.
Years: 2016–2021 — varies by model and configuration.
Check before ordering: Match the year, make, model, position, and every engine, transmission or other restriction in the same row. Listed years do not apply to every model.
View vehicle applications (12 configuration groups)
| Years | Make | Model | Position | Engine / transmission / notes |
|---|---|---|---|---|
| 2016 | Honda | Civic | Front Left Lower | W/ BALL JOINT ASSEMBLY |
| 2017–2020 | Honda | Civic | Front Left Lower | Sub Model: DX; W/ BALL JOINT ASSEMBLY |
| 2017–2021 | Honda | Civic | Front Left Lower | Sub Model: EX-L; W/ BALL JOINT ASSEMBLY |
| 2017–2018 | Honda | Civic | Front Left Lower | Sub Model: EX-T; W/ BALL JOINT ASSEMBLY |
| 2017–2021 | Honda | Civic | Front Left Lower | Sub Model: EX; W/ BALL JOINT ASSEMBLY |
| 2017–2018 | Honda | Civic | Front Left Lower | Sub Model: LX-P; W/ BALL JOINT ASSEMBLY |
| 2017–2021 | Honda | Civic | Front Left Lower | Sub Model: LX; W/ BALL JOINT ASSEMBLY |
| 2018 | Honda | Civic | Front Left Lower | Sub Model: SE; W/ BALL JOINT ASSEMBLY |
| 2017–2020 | Honda | Civic | Front Left Lower | Sub Model: Si; W/ BALL JOINT ASSEMBLY |
| 2017–2021 | Honda | Civic | Front Left Lower | Sub Model: Sport Touring; W/ BALL JOINT ASSEMBLY |
| 2017–2021 | Honda | Civic | Front Left Lower | Sub Model: Sport; W/ BALL JOINT ASSEMBLY |
| 2017–2021 | Honda | Civic | Front Left Lower | Sub Model: Touring; W/ BALL JOINT ASSEMBLY |
Source: supplier-verified applications for Dorman OE Solutions 527-067. A vehicle not listed is not confirmed compatible.
