NOISY DRUM ROTATION FROM A WORN REAR BEARING
Frigidaire Dryer Rear Drum Bearing Kit 5303281153, Fixes Noisy drum rotation from a worn rear bearing

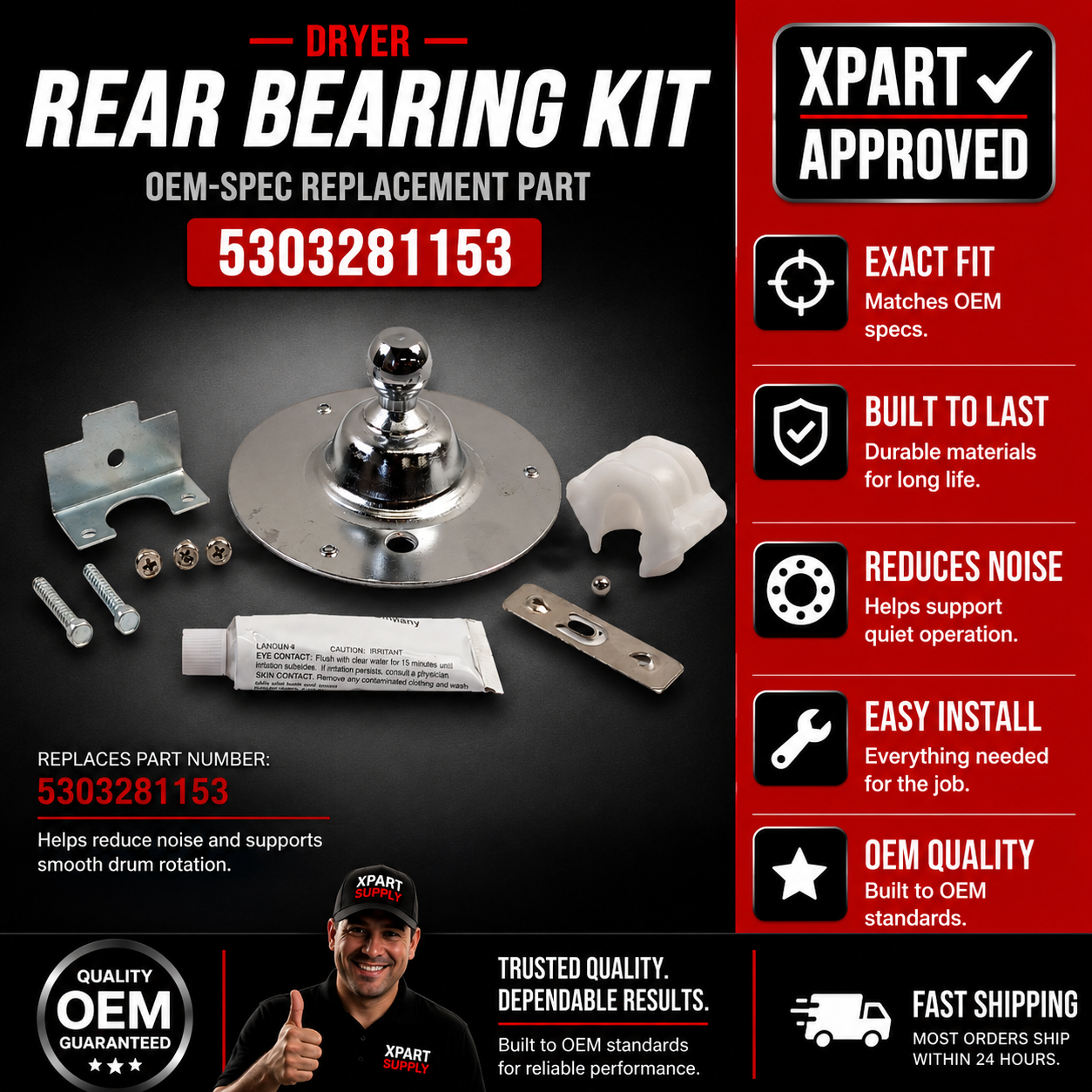

Genuine Frigidaire OEM rear drum bearing kit. The kit includes the rear drum bearing, ball shaft, ball bearing, ball-bearing retainer, high-temperature lubricant, and installation screws. The kit supports smooth drum rotation and is used in dryers and some washer-dryer laundry centers.
Part 5303281153Replaces 3281153, Q000142850, WQ142850Frigidaire
Guaranteed to Fit — or your money back.
Confirm your full appliance model number before ordering.
Confirm your full appliance model number before ordering.
Is This the Right Part?
Part Number5303281153
Replaces3281153, Q000142850, WQ142850
ManufacturerFrigidaire
Appliance TypeDryer
Part TypeDryer Rear Drum Bearing Kit
✅ Cross Reference Information
Current Part Number5303281153
Replaces3281153, Q000142850, WQ142850
Common Symptoms
- Squealing or squeaking during operation
- Grinding or rattling noise during drum rotation
- Drum may become difficult to turn or stop turning if the bearing is severely worn
Check Before Replacing
- Disconnect power before inspection or service.
- With the dryer empty and unplugged, manually rotate the drum and listen for scraping, squealing, grinding, or rough resistance.
- Check for noticeable rear-drum looseness or wobble while rotating the drum by hand.
- Confirm that the noise is associated with drum rotation rather than the motor, idler, belt, or other components.
Pro Tip
The metal bearing-hitch plate holes are not pre-threaded; use the supplied self-tapping screws and apply the included high-temperature lubricant to the bearing hitch and support cup during installation.
Part Details
Part Number5303281153
Part TypeDryer Rear Drum Bearing Kit
ManufacturerFrigidaire
Appliance TypeDryer
Primary FunctionSupports the rear of the dryer drum and allows smooth drum rotation.
Installation Notes
- Disconnect electrical power before beginning service.
- Installation requires access to the drum and rear bearing components; the drum and relevant dryer panels must be removed according to the appliance's model-specific procedure.
- Remove and replace the bearing hitch and support-cup components as an assembly using the supplied hardware.
- Apply the included lubricant to the bearing hitch and support cup before reinstalling the drum.
- After reassembly, rotate the drum by hand to confirm smooth movement and verify that panels, belt, and wiring are properly reinstalled before restoring power.
Verified Compatible Models
41749012890, 41749022890, 41759012890, 41759022890, 41761712510, 41761712511, 41761722510, 41761722511, 41761723510, 41761723511, 41761732810, 41761732811, 41761733810, 41761733811, 41764182300
Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
