Frigidaire Refrigerator Evaporator Fan Motor Kit - 120V 60Hz 5303918549

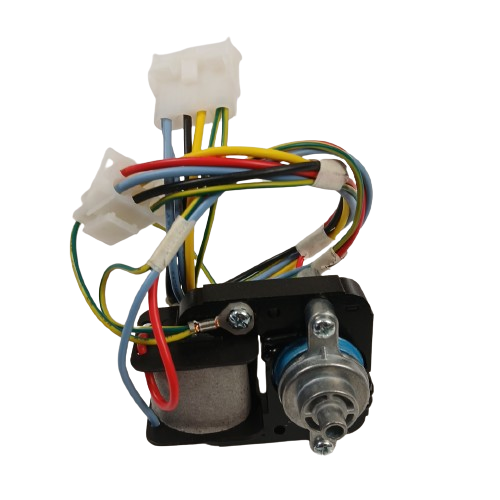

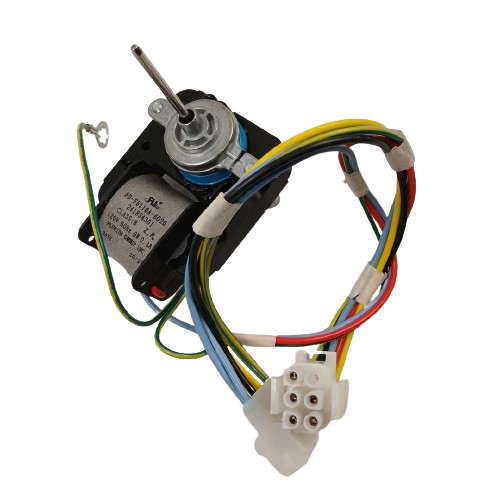

OEM evaporator fan motor service kit for refrigerators. Includes the motor, clips, terminal connectors, and instruction sheet. The motor is installed in the freezer compartment and circulates air over the evaporator coils to distribute cooled air.

Is This the Right Part?

Common Symptoms

• Fresh-food section warm while the freezer remains cold
• Both refrigerator and freezer sections too warm
• Unusual grinding, squealing, rattling, or other noise from the freezer
• Little or no airflow from the freezer vents
• Fan runs intermittently or does not start

Check Before Replacing

• Disconnect power before accessing the freezer evaporator-fan area.
• With power disconnected, inspect the fan blade and motor area for ice, debris, or physical obstruction; do not force the blade.
• After reassembly and safe restoration of power, observe whether the evaporator fan operates when the refrigerator calls for cooling; do not bypass door or safety switches.
• If electrical testing is performed, it should be done only by a qualified person using the appliance wiring diagram and appropriate electrical-safety procedures.
• Confirm that a no-airflow condition is not caused by heavy frost, blocked vents, or another cooling-system fault before replacing the motor.

Pro Tip

Part Details

Key Features

• Genuine Frigidaire evaporator fan motor service kit
• 120V, 60Hz refrigerator application
• Kit includes the motor, clips, terminal connectors, and instruction sheet
• Motor is installed in the freezer compartment
• Updated service-kit design may require using the included connection components on older installations

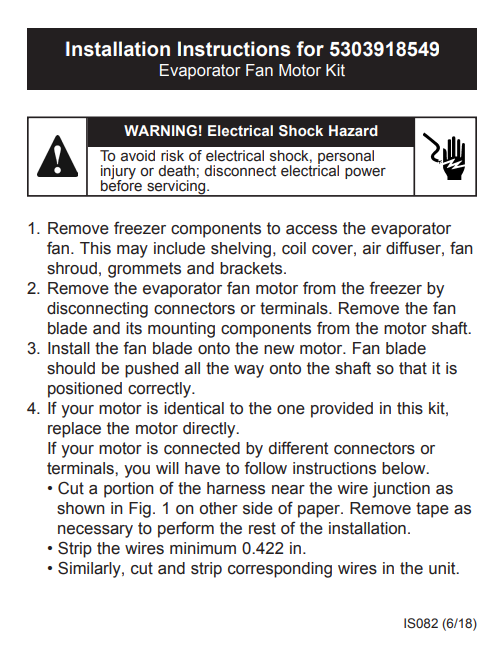

Installation Notes

• Disconnect refrigerator power before servicing.
• Access is through the freezer evaporator-fan area and may require removal of interior freezer panels according to the appliance's model-specific service instructions.

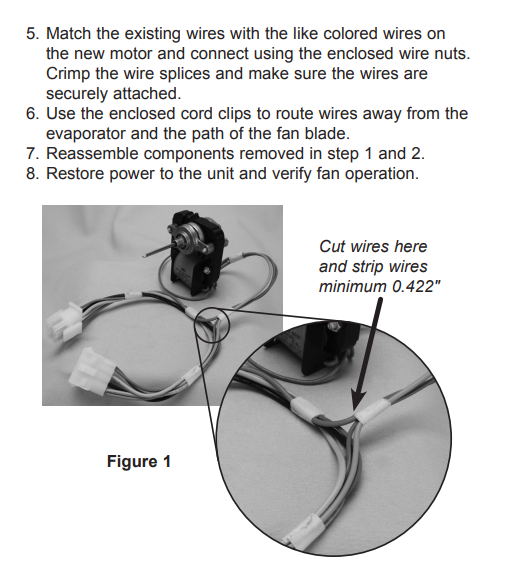

• Use the included clips, terminal connectors, and instructions as applicable to the existing wiring.
• Ensure the fan blade and motor are securely mounted and that wiring is routed clear of the blade before reinstalling the freezer cover.
• Restore power only after the fan assembly and interior panels are properly reassembled.

Verified Compatible Models

2533111330A, 2533111330B, 2533111330C, 2533111330D, 2533111330E, 2533111330F, 2533111330G, 25331113300, 25331113302, 25331113304, 25331113308, 25331115300, 25331115302, 25331115304, 25331115308

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
