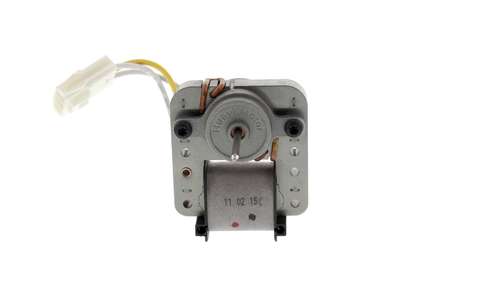

Frigidaire Refrigerator/Freezer Evaporator Fan Motor Kit 5304436055, Replaces 216787000, 216822500

Genuine Frigidaire 115V evaporator fan motor kit for refrigeration appliances. It circulates air around the evaporator/freezer compartment for cooling; fan blade is not included.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Freezer temperature warmer than normal
• Little or no airflow from the evaporator-fan area
• Fan motor does not start or stops running
• Squealing, buzzing, grinding, or other abnormal fan noise

Check Before Replacing

• With the appliance unplugged, visually inspect the evaporator-fan area for ice, debris, or an obstructed fan blade.
• Restore power only after the fan area is clear, then listen for abnormal motor noise and observe whether the fan starts during normal cooling operation.
• Check that the fan wiring and connector are seated and undamaged; do not bypass safety devices or alter wiring unless following the appliance-specific service documentation.
• Confirm that the fan blade rotates freely when power is disconnected; a seized blade or obstruction can produce symptoms similar to a failed motor.

Pro Tip

Part Details

Key Features

• Genuine Frigidaire evaporator/freezer fan motor kit
• 115-volt motor
• Designed for installation in the freezer compartment near the evaporator
• Fan blade is not included
• Kit documentation identifies screws or mounting hardware with the motor assembly

Installation Notes

• Disconnect electrical power before accessing or replacing the motor.
• The motor is located at the rear of the freezer compartment near the evaporator area; access procedures vary by appliance model.
• Confirm whether the existing fan blade is reusable because the blade is not included with this part.
• Inspect the wiring connector and routing before removal, and restore the wiring to its original arrangement.
• Use compatible mounting screws; the replacement mounting holes may require self-tapping screws rather than the original fasteners.

Verified Compatible Models

253.60721006, 253.60721008, 25321021103, 25321021104, 25321021105, 25321041103, 25321041104, 25321041105, 25321041107, 25321041108, 25321082100, 25321082101, 25321082102, 25321082103, 25321082104, 25321082106, 25321082107, 25321411102, 25321411103, 25321411104, 25321421100, 25321421102, 25321421103, 25321421104, 25321421105, 25321721101, 25321721102, 25321721103, 25321741100, 25321741101, 25321741102, 25321741103, 25323024101, FFU11FK1CW0, FFU14F3AW0, FFU17FC4AW1, FFU17FC8CW0, FFU17FG4AW0, FFU20F3AW0, FFU20F3AW4, FFU20FG6AW1, FFU20IC8CW1, FRU17G4JW4, FRU17G4JW5, FRU17G4JW6, GFU17F5AW2, GFU20F5AW3, GRU17B2JW5, WFU14FK3BW0, WFU14FK3BW1

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
