Front-Load Washer Leaking or Has Mold? Door Bellow 5304505004 – Fix Door Seal Failure Fast
A leaking or mold-covered front-load washer door is almost always caused by a failed door bellow seal. In most Electrolux and Frigidaire front-load washers, the door bellow creates the watertight seal between the drum and the door glass. When it fails, water leaks from the front of the machine during every cycle, mold and mildew accumulate in the accordion folds, and the drum may become visible through tears or cracks in the rubber. ⚡ Common failure point in Electrolux-built front-load washers. Part 5304505004 is the genuine OEM replacement that restores a complete watertight seal, eliminates leaks, and removes the source of mold and odour immediately.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Washer powers on and runs normally
- ✔ Drum spins and all wash functions work correctly
- ✔ Water supply and drain lines confirmed OK
- ✔ ONLY problem is water leaking from the door area, visible tears or cracks in the bellow, mold in the gasket folds, or musty odour from the drum
Not sure? Send us your model number — we'll confirm before you order.
🔧 Common Symptoms
- Water pooling on the floor in front of the washer during or after a cycle
- Visible tears, cracks, or holes in the rubber door gasket
- Persistent black mold, mildew, or foul odour in the door seal folds
- Door does not seal tightly — drum visible through gap in bellow
- Clothes or small items getting caught between the door and drum
- Bellow pulling away from the front panel or tub during operation
✔ If these symptoms match, this is the most likely failed component in the system.
✔ In most cases, replacing this door bellow restores normal watertight operation immediately.

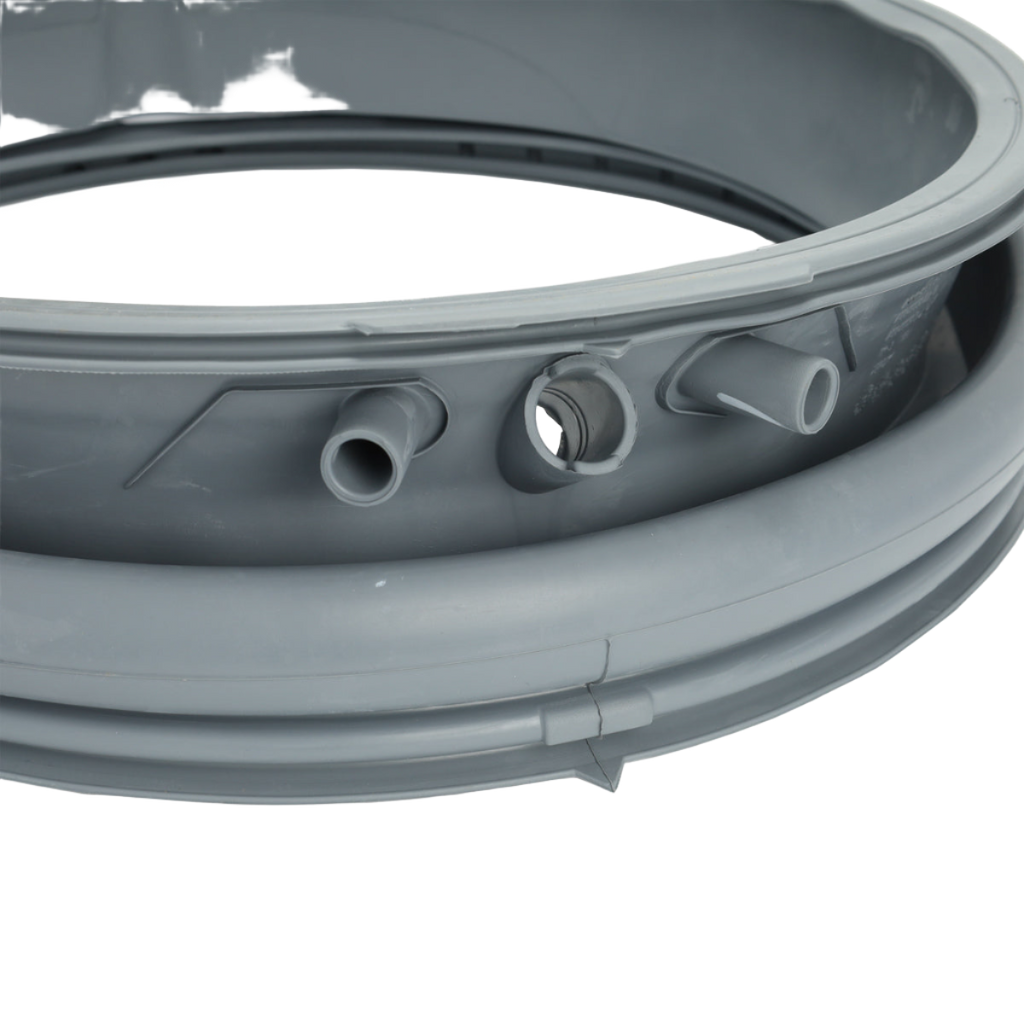

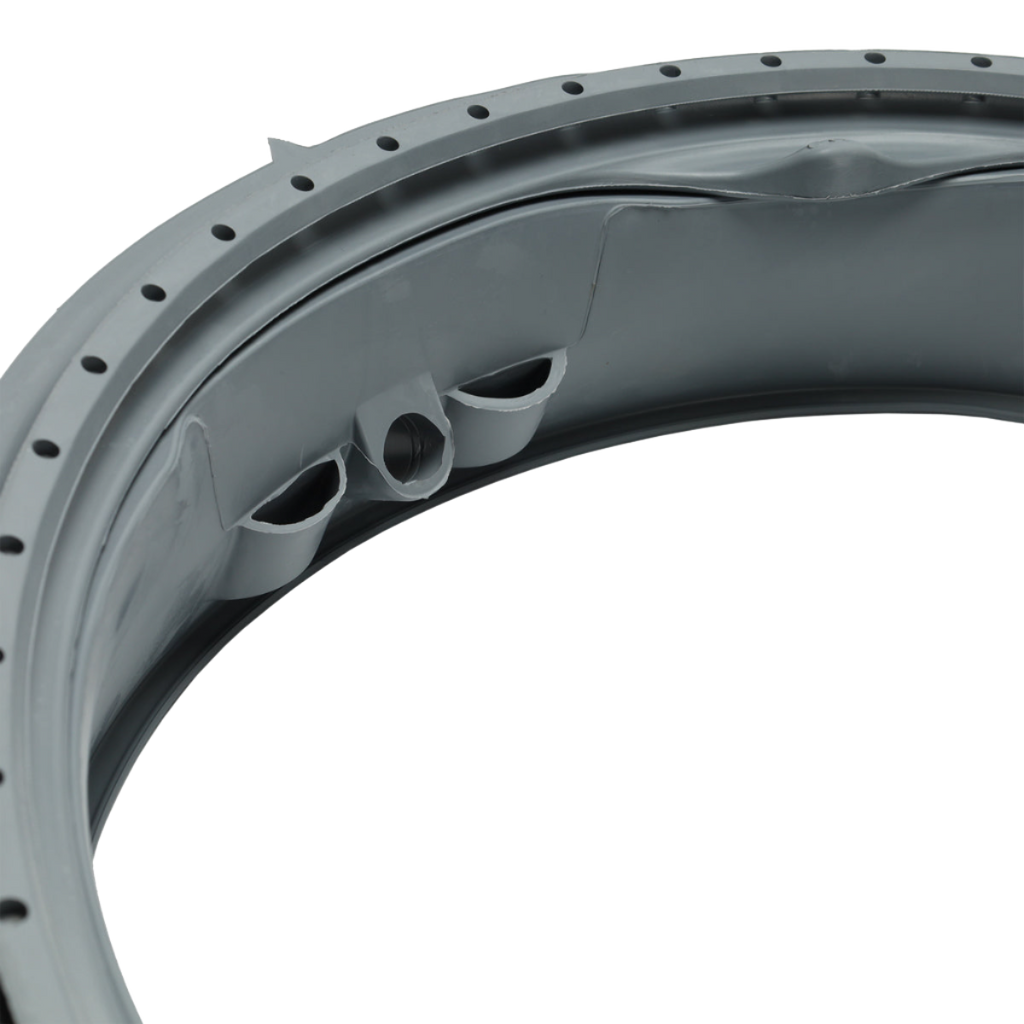

📦 Part Details
- Part Number: 5304505004
- Replaces: 5304505239, 5304516744, PS12731388, 4931397
- Type: Front Load Washer Door Bellow / Boot Gasket Seal
- Brands: Electrolux, Frigidaire
- OEM: Genuine Electrolux replacement part
Inspect the door bellow retaining clamp (spring band or wire clamp) while the bellow is removed — if it's stretched, corroded, or deformed, replace it at the same time. A worn clamp on a new bellow is the #1 cause of repeat leaks within 6 months.
⚙️ Installation
Skill Level: Moderate — 45–75 minutes. Disconnect power before servicing. Remove the front panel or door boot retaining ring to access the bellow, carefully peel the old gasket off the drum lip and door frame, seat the new bellow ensuring the drain hole is positioned at the bottom (6 o'clock), and reinstall the retaining clamp securely. Run a short rinse cycle to confirm no leaks before reassembling panels.
✓ Compatible Models
Confirmed compatible with EFLS517SIW0, EFLS527UIW0, EFLS617SIW0, EFLS627UIW0, EFLS628WTT00, ELFW7537AT0, ELFW7637AT0, ELFW7637BT0 plus additional Electrolux and Frigidaire front-load models. Contact us to verify your model number before ordering.
💡 Pro Tip
Wipe the drum lip and front panel mounting groove with a clean cloth and mild detergent before seating the new bellow. Old detergent residue and mold debris prevent the bellow from seating flush, which causes micro-leaks even with a brand-new gasket. Two minutes of prep saves a callback.
✓ Model-Specific Repair Pages
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
