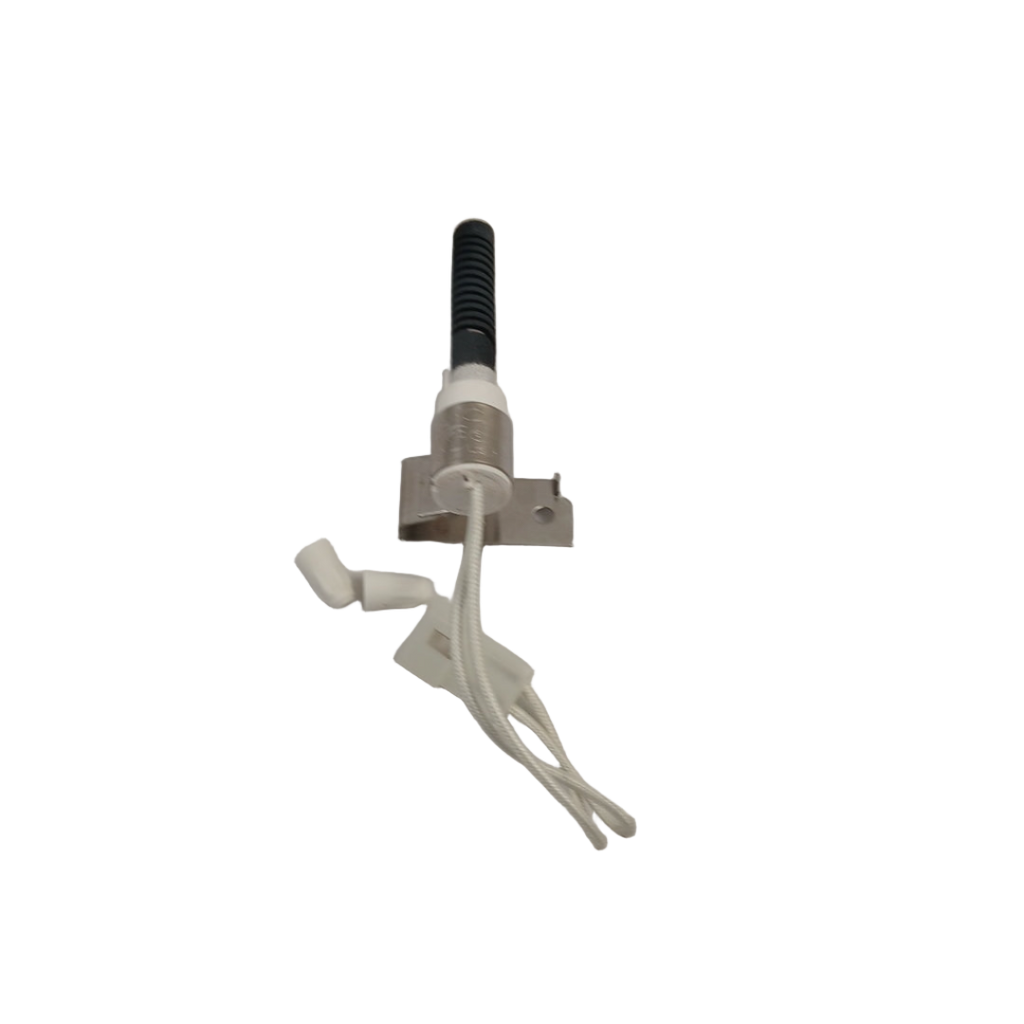

5304511446 Frigidaire Glow-Coil Igniter for Gas Dryers, Restores Burner Ignition and Heating
Gas dryer tumbling but producing no heat? In select Frigidaire gas dryers, a cracked or electrically open burner igniter is one possible cause of a dryer that runs but fails to heat or ignite the burner. When it fails, the igniter cannot reach the operating condition required to open the gas valve, so the burner does not light and the dryer produces no heat. Part 5304511446 is the genuine Electrolux and Frigidaire OEM glow-coil igniter used in select Frigidaire gas dryers.
❓ Is This the Right Part?
A failed igniter is one possible cause of a no-heat condition. Complete model-specific gas-appliance diagnosis before ordering. Confirm the complete dryer model and verify your model is in the compatible list below before ordering.
- ✔ Dryer powers on and drum tumbles normally
- ✔ Gas supply confirmed on and pressure verified
- ✔ Thermal fuse and thermostats confirmed functional
- ✔ ONLY problem is no heat or burner failing to ignite
Not sure? Send us your model number — we’ll confirm before you order.
🔧 Common Symptoms
- Gas dryer tumbles but produces no heat
- Dryer heats intermittently or inconsistently
- Burner fails to ignite at the start of the heat cycle
- Dryer takes much longer than normal to dry a load
May restore dryer heat when diagnosis confirms that the original burner igniter is cracked, electrically open or unable to reach the required operating condition. Inspect the gas-valve coils, flame sensor, thermostats, thermal protection and wiring before replacing the igniter.
📦 Part Details
- Part Number: 5304511446
- Type: Gas Dryer Burner Ignitor (Glow-Coil Igniter)
- Cross-References: 4584386, AP6261724, EAP12176564, PS12176564, PD00079270, AFR1251797, FRI5304511446, WCI5304511446, HD12176564
- Brands: Frigidaire, Electrolux
- Application: Gas dryers only — confirm complete model before ordering
- Condition: Genuine OEM — New & XPart Available
A failed igniter often fails alongside weak gas-valve coils or a defective flame sensor — these components work together in the ignition sequence. If the igniter glows but the burner still does not light, the gas-valve coils are the next component to test. Replacing only the igniter when the coils are also marginal can result in a repeat no-heat call. Confirm the mounting bracket, connector and electrical specifications match the original before installing.
⚙️ Installation
Skill Level: Advanced. Gas-appliance diagnosis and installation should be completed by a qualified appliance technician. Disconnect electrical power and shut off the gas supply before accessing the burner system. The igniter is fragile — handle only by the mounting bracket and avoid contact with the ceramic element. Photograph the wiring connections before disconnecting, install the new igniter in the original mounting position, reconnect the connector and restore power and gas before running a heat cycle to confirm ignition.
✓ Compatible Models
Confirmed compatible with: FFRG4120SW, FFRG4120SW1, FFRG4120SW2, FLVG7000AW, FLVG7523BW plus additional Frigidaire gas dryer models.
Contact us to verify your model number before ordering.
💡 Pro Tip
The igniter must reach a specific operating temperature to trigger the gas-valve coils to open. An igniter that glows dimly or takes too long to reach temperature will fail to open the valve even though it appears to be working. If the igniter glows but the burner never lights, test the gas-valve coils before replacing the igniter a second time.
✓ Model-Specific Repair Pages
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
