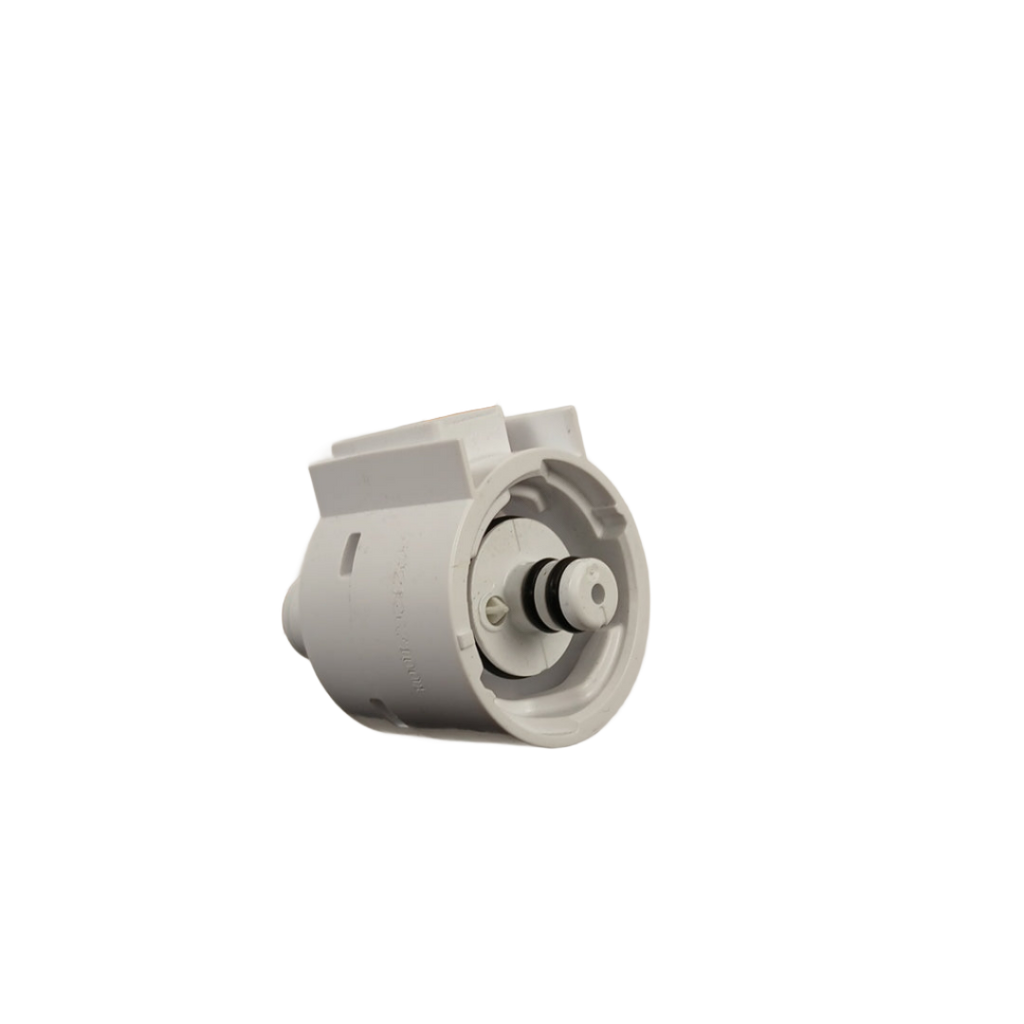

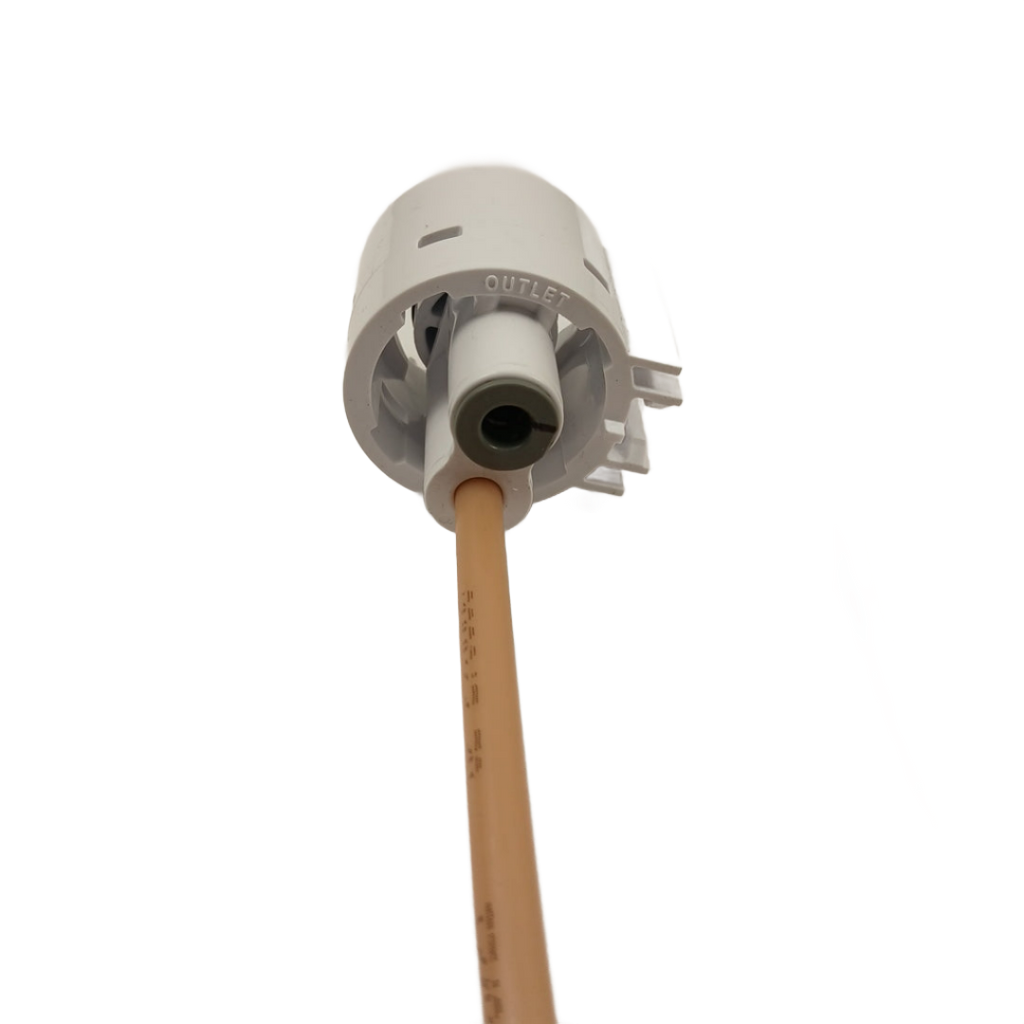

Frigidaire / Electrolux Refrigerator Water filter head (manifold, water filter) 5304522623, Replaces 5304521650, 807931801

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Water leaking from the filter housing or manifold area
• Slow or absent dispenser water flow when the filter head is restricted or not opening correctly
• Filter difficult to install, engage, or seal
• Water dispenser or ice-maker water supply interrupted through the filter path

Check Before Replacing

• Confirm the refrigerator water supply valve is fully open and inspect the tubing connections around the filter head for visible leaks.
• Remove and reinstall the filter, checking that it is fully seated and locked according to the refrigerator owner's instructions.
• Temporarily test with a known-good filter or the manufacturer-approved bypass filter to help distinguish a clogged filter from a filter-head/manifold problem.
• With water and power safely controlled, inspect the filter-head inlet and outlet areas for cracked plastic, damaged seals, or obvious physical damage; do not disassemble the manifold.

Pro Tip

Part Details

Installation Notes

• Shut off the refrigerator water supply and unplug the refrigerator before service; protect or remove perishable food as appropriate.
• Follow the refrigerator model's service or owner's instructions for accessing and replacing the filter head/manifold.
• After installation, restore water and power, inspect every serviced connection for leaks, and flush or discard initial water as directed by the refrigerator instructions.

Verified Compatible Models

20462151B, 90462157B, CFEH272ITD0, CFEH272ITD1, CFEH272ITS0, CFEH272ITS1, CFEH272ITW1, DGHD2361TF0, DGHD2361TF1, DGHD2361TF2, DGHD2361TF3, DGHK2355TF0, DGHX2655TF0, DGHX2655TF5, DGHX2655TF6

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
