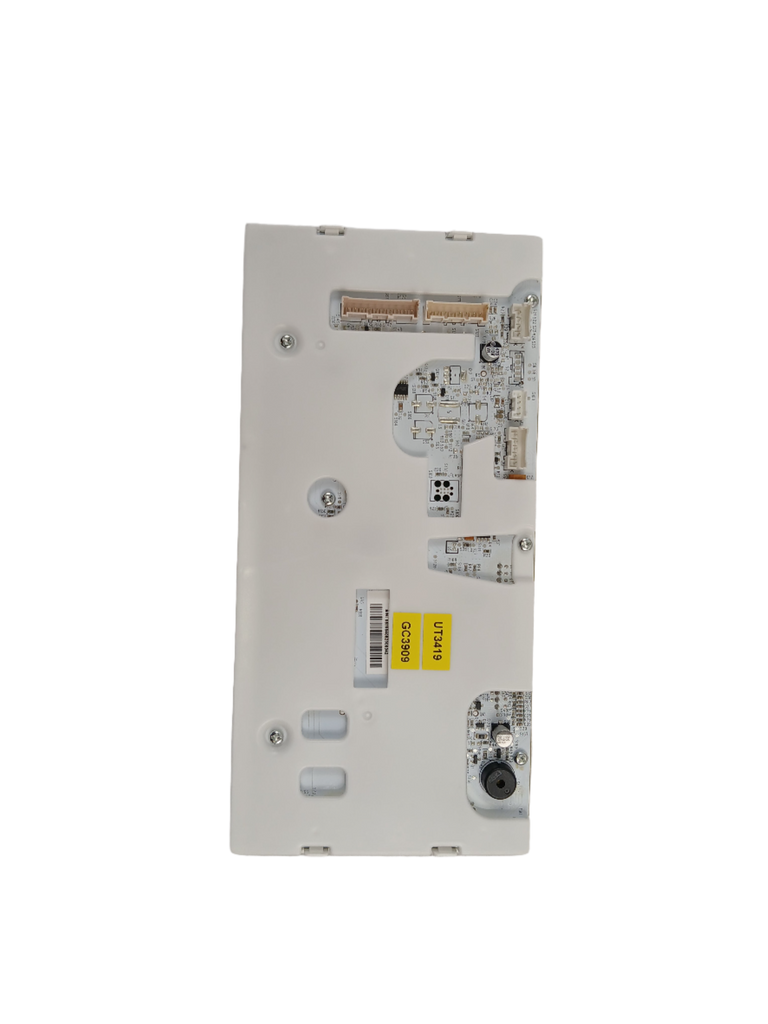

Frigidaire Refrigerator PC Board Display, Assembly, Dispenser 5304528575
Genuine Frigidaire refrigerator display PC-board assembly used in the dispenser/display control system. It is listed in the FG4H2272UF05 parts catalog as “Pc Board Display” at schematic location 38.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ QUALIFIER 1 — Refrigerator powers on and compressor runs normally
- ✔ QUALIFIER 2 — Cooling and freezer functions are otherwise intact
- ✔ QUALIFIER 3 — Power supply to the board confirmed OK
- ✔ ONLY problem is a blank, frozen, or unresponsive display panel
Not sure? Send us your model number — we'll confirm before you order.
🔧 Common Symptoms
- Display panel is completely blank or dark
- Temperature settings cannot be adjusted or saved
- Refrigerator displays error codes or flashing indicators
- Inconsistent cooling — fridge runs but temperatures fluctuate
✔ If these symptoms match, this is the most likely failed component in the system.
✔ In most cases, replacing this display control board restores normal operation immediately.
✅ Cross Reference Information
Part Number: 5304528575
Previous Part Numbers: 5304519200, 5304526178
Part Details
- Part Number: 5304528575
- Part Type: PC Board Display, Assembly, Dispenser
- Manufacturer: Frigidaire
- Appliance Type: Refrigerator
While the refrigerator is open for service, inspect the main control board and temperature sensors — these components are often stressed by the same failure event and may show early signs of wear. Replacing them together saves a second service call.
⚙️ Installation
Skill Level: MODERATE — 30–45 minutes. Disconnect power before servicing. Remove the interior panel to access the display board housing, disconnect the wiring harness, swap the board, reconnect, and restore power. No soldering required — plug-and-play OEM fit.
Verified Compatible Models
FG4H2272UF, FG4H2272UF01, FG4H2272UF02, FG4H2272UF03, FG4H2272UF04, FG4H2272UF05, FG4H2272UF06
Fitment reminder: Match the complete appliance model number before ordering.
💡 Pro Tip
Before installing the new board, inspect the wiring harness connector for corrosion or burnt pins — a damaged harness can kill a new board within weeks. If the connector shows any discolouration, replace the harness at the same time to protect your investment.
✓ Model-Specific Repair Pages
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
