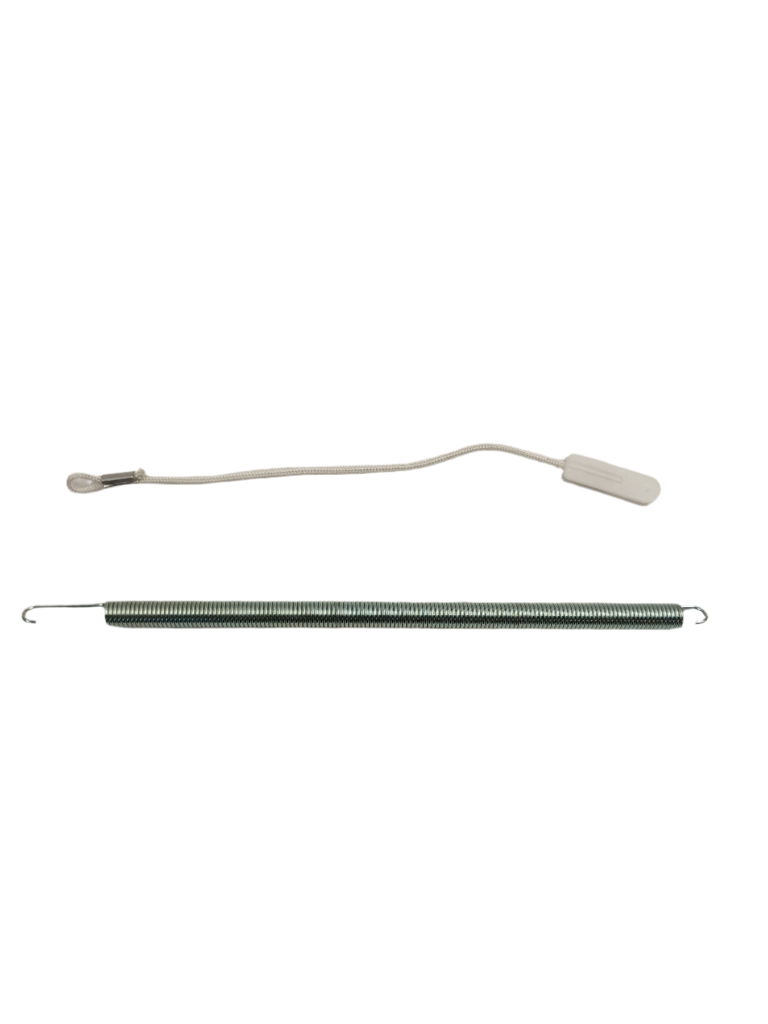

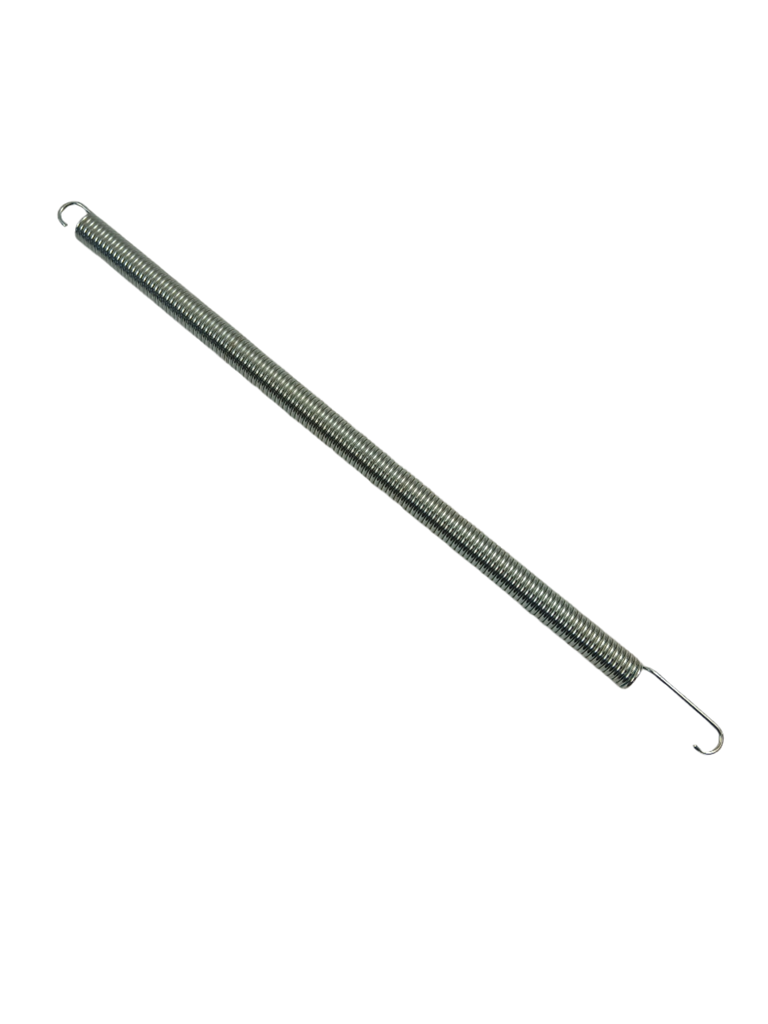

Frigidaire / Electrolux Dishwasher Door Spring and Cable Assembly 5304530071, Replaces 5304475581, 5304475582

Genuine OEM spring-and-cable assembly that applies tension through the dishwasher door hinge, helping prevent the door from dropping too quickly and supporting proper door opening and closing.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Door feels unusually heavy when opened
• Door flops or drops open
• Door will not close or latch correctly
• Visible broken or detached door cable or spring
• Uneven door movement caused by failure on one side

Check Before Replacing

• With the dishwasher empty and not running, observe whether the door drops rapidly or feels substantially heavier than normal when opened.
• Visually inspect the accessible door-balance components for a broken, detached, or visibly slack cable or spring; do not pull or stretch the spring.
• Check whether the door closes evenly and engages the latch without forcing it.
• If one side appears damaged, compare the visible routing and tension with the opposite side without disturbing either assembly.
• Verify the appliance model before ordering, because door-balance components can vary by model.

Pro Tip

Part Details

Key Features

• Genuine Frigidaire OEM door spring and cable kit
• Controls dishwasher door opening and closing speed
• Provides counterforce through the door hinge
• Replaces manufacturer numbers 5304475581 and 5304475582
• Applicable to selected Frigidaire, Electrolux, and Kenmore dishwashers

Installation Notes

• Disconnect power and follow the appliance-specific service or installation instructions before beginning work.
• Use caution and appropriate hand protection because the spring is under tension.
• Confirm the cable routing and spring attachment points for the exact dishwasher model before removing the old assembly.
• Do not force the door or stretch the spring beyond its normal mounting position.
• After installation, test the door movement and latch operation carefully before operating the dishwasher.

Verified Compatible Models

58715412100A, 58715413100A, EIDW5705PB0A, EIDW5705PS0A, EIDW5705PW0A, FGHD2455LB0, FGHD2455LF0, FGHD2455LW0, FGHD2472PB0, FGHD2472PF0, FGHD2472PF1A, FGHD2472PW0, FGHD2491LB0, FGHD2491LW0, FPHD2491KF0

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
