🇺🇸 Matching U.S. Part Number: 5304533448
Frigidaire Range Oven Temperature Sensor Probe 5304533448 — Fixes Temperature Errors / Restores Oven Temperature Sensing
5304533448 is a genuine Electrolux/Frigidaire oven temperature-sensor probe used in select electric, gas and induction ranges. The probe monitors the temperature inside the oven cavity and sends resistance-based temperature information to the electronic oven control. The control uses this information to regulate oven heating.
A defective sensor may contribute to inaccurate oven temperatures, excessive heating, insufficient heating, inconsistent preheating or a temperature-sensor fault code. Similar symptoms can also result from damaged wiring, loose connectors, an electronic oven control fault, incorrect calibration, heating-element or ignition problems, or heat loss through the oven door. Confirm the complete range model before ordering. Disconnect electrical power before testing or replacing the sensor.
❓ Is This the Right Part?
This may be the correct part if ALL of the following are true:
- ✔ MODEL CONFIRMED — your range is one of the 19 verified Frigidaire/Electrolux models listed below
- ✔ SENSOR CIRCUIT TESTED — the probe resistance has been measured and falls outside the expected range for the oven temperature
- ✔ WIRING CONFIRMED — the sensor wiring and connector have been inspected and are not damaged or loose
- ✔ OTHER CAUSES RULED OUT — oven control calibration, heating element/ignition and door seal have been checked
May correct oven-temperature problems when testing confirms that the original sensor or its connection is defective. Not sure? Send us your model number — we’ll confirm before you order.
🔧 Common Symptoms
- Oven temperature is consistently higher or lower than the set temperature
- Oven overheats or shuts off before reaching the set temperature
- Inconsistent preheating — preheat time varies significantly between cycles
- Temperature-sensor fault code displayed on the oven control
- Oven will not heat at all — sensor open-circuit fault
- Baking or roasting results are inconsistent despite correct settings
✔ If the sensor resistance tests outside the expected range for the oven temperature, this is the correct replacement part.
📦 Part Details

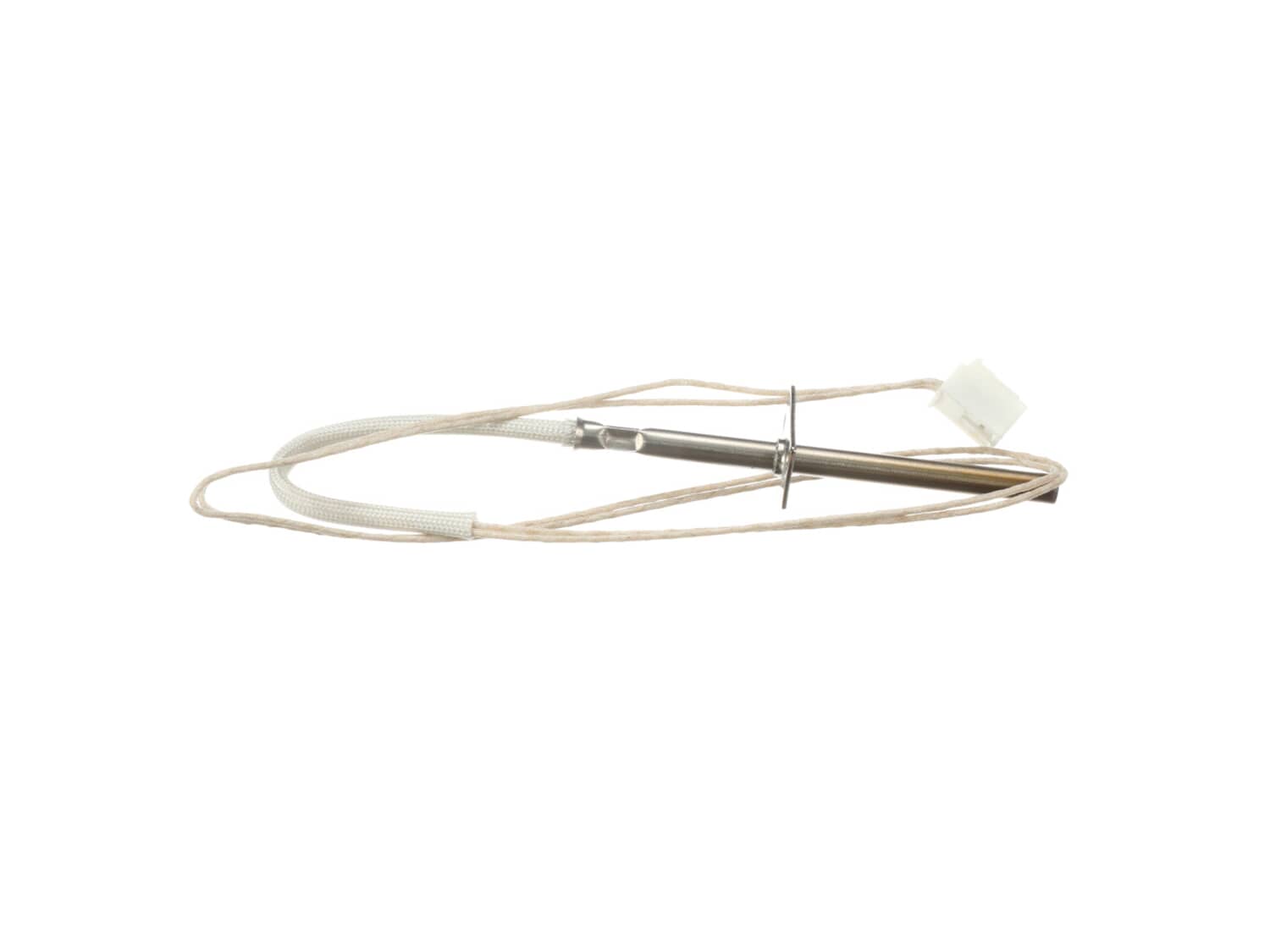

- Part Number: 5304533448
- Type: Range oven temperature-sensor probe — monitors oven-cavity temperature and sends resistance-based temperature information to the electronic oven control to regulate oven heating.
- No verified OEM predecessor number. 5304533448 is the current service number with no confirmed directional supersession.
- Manufacturer: Electrolux / Frigidaire
- Canadian / U.S. Part Number: Identical — 5304533448
- Note: Confirm the complete model and revision before ordering — similar-looking probes can use different connectors, resistance characteristics and mounting arrangements.
An oven temperature sensor can be tested with a multimeter in resistance (ohm) mode. At room temperature, most Frigidaire/Electrolux NTC sensors read approximately 1,000–1,100 ohms. Consult your model’s service manual for the exact expected resistance at a known temperature. If the reading is within spec, the fault may be in the wiring, connector or electronic oven control — not the sensor itself.
⚙️ Installation
Skill Level: EASY to MODERATE — 15 to 30 minutes. Disconnect electrical power before beginning. The oven temperature sensor is typically mounted inside the oven cavity at the rear wall and secured with one or two screws. Remove the mounting screws, pull the sensor forward to access the wiring connector, disconnect the connector, and install the new 5304533448 in the same position. Reconnect the wiring, secure the mounting screws, restore power and verify oven temperature accuracy.
✓ Compatible Models
Confirmed compatible with FCFE3062ABB, FCFE3062ABC, FCFE3062ASB, FCFE3062AWB, FCFE3062AWC, FCFE306CAFB, FCFE306CASB, FCFE3083ASB, FCFE308CASB, FCFE308LAFB, FCFG3062ABB, FCFG3062AWB, FCFG308LAFA, FCFI3083ASA, FCFI308CASA, FCRE3083ASA, FCRE3083ASB, FCRE308CASA, FCRE308CASB. Contact us to verify your model number before ordering.
💡 Pro Tip
A single resistance reading at room temperature can be misleading if the sensor has an intermittent fault that only appears at oven temperature. For a more reliable test, measure resistance at room temperature, then heat the oven to a known temperature (e.g. 350°F / 175°C), wait for it to stabilize, and measure again. Compare both readings against the values in your model’s service manual. A sensor that reads correctly at room temperature but drifts at operating temperature is defective and should be replaced.
✓ Model-Specific Repair Pages
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
