AUTOMOTIVE PART

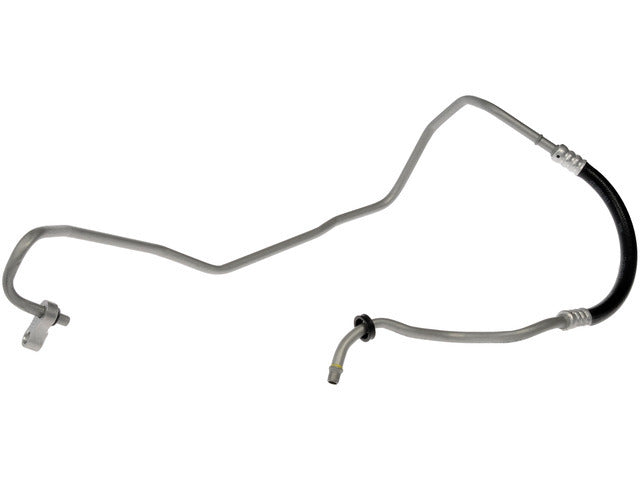

Dorman AT Oil Cooler Hose Assembly 624-555
AT Oil Cooler Hose Assembly
Part 624-555DormanAT Oil Cooler Hose Assembly
Match your exact vehicle configuration to the verified applications below.
Confirm the year, make, model, engine, drivetrain and required position before ordering.
Confirm the year, make, model, engine, drivetrain and required position before ordering.
Is This the Right Part?
Manufacturer Part Number624-555
ManufacturerDorman
Part TypeAT Oil Cooler Hose Assembly
Part Details
Part Specifications
| Contains Spring | No |
|---|---|
| End 1 Inside Diameter | 0.278 IN |
| End 1 Type | Clamp |
| End 2 Type | Clamp |
| Flexible | Yes |
| Gasket Or Seal Included | No |
| Hose Material | Metal |
| Hose Material | Rubber |
| Hose Shape | Molded Assembly |
| Length | 7.874 IN |
| Maximum Operating Temperature (° | 329 Deg. F. FA |
| Maximum Working Pressure | 100 PS |
| Minimum Operating Temperature (° | -40 Deg. F. FA |
| Package Contents | 1 Transmission Line |
Verified Vehicle Fitment
Make: Buick, Chevrolet
Model: 2 verified models — see exact combinations below.
Years: 2011–2014, 2016–2019 — varies by model and configuration.
Check before ordering: Match the year, make, model, position, and every engine, transmission or other restriction in the same row. Listed years do not apply to every model.
View vehicle applications (3 configuration groups)
| Years | Make | Model | Position | Engine / transmission / notes |
|---|---|---|---|---|
| 2016–2019 | Buick | Cascada | Auxiliary Cooler Outlet (Upper | No additional restrictions supplied; confirm exact configuration. |
| 2014 | Chevrolet | Cruze | Outlet (Upper) | Engine: 1.4 L4; w/External Transmission Oil Cooler |
| 2011–2013 | Chevrolet | Cruze | Outlet (Upper) | Engine: 1.4 L4 |
Source: supplier-verified applications for Dorman 624-555. A vehicle not listed is not confirmed compatible.
