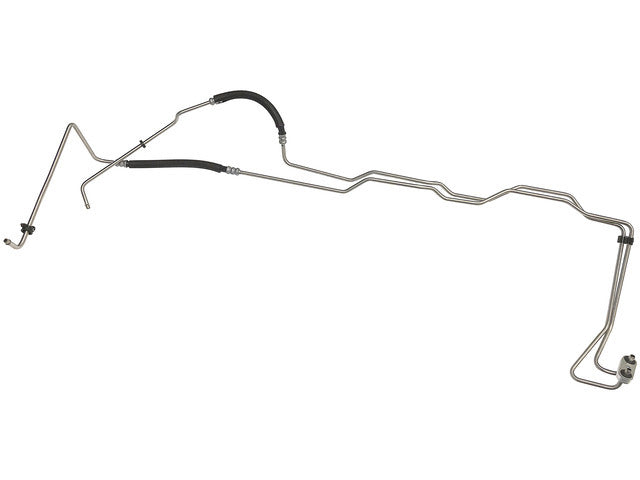

Dorman AT Oil Cooler Hose Assembly 624-573

XPart Number XP10154614
$265.90
Available by special order
Buying Options: OEM Genuine

Choose an available buying option.
Check Fit & Find Parts
Bubba checks verified models, product descriptions, cross-references and store data. Find your model number →

Frequently Bought Together
AUTOMOTIVE PART

Dorman AT Oil Cooler Hose Assembly 624-573

AT Oil Cooler Hose Assembly

Part 624-573DormanAT Oil Cooler Hose Assembly
Match your exact vehicle configuration to the verified applications below.
Confirm the year, make, model, engine, drivetrain and required position before ordering.

Is This the Right Part?

Manufacturer Part Number624-573
ManufacturerDorman
Part TypeAT Oil Cooler Hose Assembly

Part Details

Part Specifications

Contains Spring No
End 1 Inside Diameter 0.26 IN
End 1 Type Quick Disconnect
End 2 Type Block Connector
Flexible Yes
Gasket Or Seal Included Yes
Hose Material Metal
Hose Material Rubber
Hose Shape Molded Assembly
Length 82 IN
Maximum Operating Temperature (° 329 Deg. F. FA
Maximum Working Pressure 100 PS
Minimum Operating Temperature (° -40 Deg. F. FA
Package Contents 1 Retaining Clip
Package Contents 1 Transmission Line

Verified Vehicle Fitment

Make: Chevrolet, GMC
Model: 5 verified models — see exact combinations below.
Years: 2009–2019 — varies by model and configuration.

Check before ordering: Match the year, make, model, position, and every engine, transmission or other restriction in the same row. Listed years do not apply to every model.

View vehicle applications (17 configuration groups)
Years Make Model Position Engine / transmission / notes
2010 Chevrolet Express 2500 Inlet and Outlet Engine: 4.8 V8; Exc. 14,200 Lb. GVW
2010 Chevrolet Express 2500 Inlet and Outlet Engine: 6.0 V8; Exc. 14,200 Lb. GVW
2011–2017 Chevrolet Express 2500 Inlet and Outlet Engine: 4.8 V8
2011–2019 Chevrolet Express 2500 Inlet and Outlet Engine: 6.0 V8
2010 Chevrolet Express 3500 Inlet and Outlet Engine: 4.8 V8; Exc. 14,200 Lb. GVW
2010 Chevrolet Express 3500 Inlet and Outlet Engine: 6.0 V8; Exc. 14,200 Lb. GVW
2011–2017 Chevrolet Express 3500 Inlet and Outlet Engine: 4.8 V8
2011–2019 Chevrolet Express 3500 Inlet and Outlet Engine: 6.0 V8
2017–2019 Chevrolet Express 4500 Inlet and Outlet No additional restrictions supplied; confirm exact configuration.
2010 GMC Savana 2500 Inlet and Outlet Engine: 4.8 V8; Exc. 14,200 Lb. GVW
2010 GMC Savana 2500 Inlet and Outlet Engine: 6.0 V8; Exc. 14,200 Lb. GVW
2011–2017 GMC Savana 2500 Inlet and Outlet Engine: 4.8 V8
2011–2019 GMC Savana 2500 Inlet and Outlet Engine: 6.0 V8
2010 GMC Savana 3500 Inlet and Outlet Engine: 4.8 V8; Exc. 14,200 Lb. GVW
2010 GMC Savana 3500 Inlet and Outlet Engine: 6.0 V8; Exc. 14,200 Lb. GVW
2009, 2011–2017 GMC Savana 3500 Inlet and Outlet Engine: 4.8 V8
2009, 2011–2019 GMC Savana 3500 Inlet and Outlet Engine: 6.0 V8

Source: supplier-verified applications for Dorman 624-573. A vehicle not listed is not confirmed compatible.
