AUTOMOTIVE PART

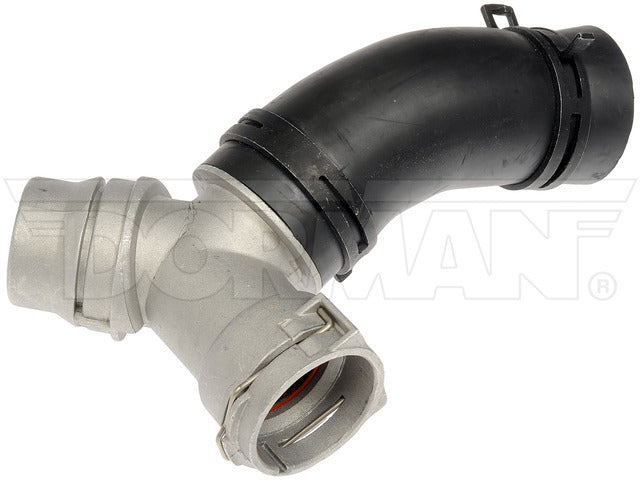

Dorman Heater Hose Assembly 626-541
Heater Hose Assembly, - AluminumY-Connector
Part 626-541DormanHeater Hose Assembly
Match your exact vehicle configuration to the verified applications below.
Confirm the year, make, model, engine, drivetrain and required position before ordering.
Confirm the year, make, model, engine, drivetrain and required position before ordering.
Is This the Right Part?
Manufacturer Part Number626-541
ManufacturerDorman
Part TypeHeater Hose Assembly
Part Details
Part Specifications
| Branch Quantity | 3 |
|---|---|
| Centerline Length | 5.69 IN |
| Color | Natural |
| Contains Spring | No |
| Coolant Hose Heat Shield Include | No Heat Shield Required |
| Coolant Hose Type | Branched |
| End 1 Attachment Type | Quick Disconnect |
| End 1 Inside Diameter | 1.56 IN |
| End 2 Attachment Type | Quick Disconnect |
| End 2 Inside Diameter | 1.57 IN |
| End 3 Attachment Type | Hose |
| End 3 Inside Diameter | 1.26 IN |
| Grade Type | Standard |
| Grade Type | Standard Replacement |
| Hose End (1) Inside Diameter (In | 1.25 In. |
| Hose End (1) Outside Diameter (I | 1.77 In. |
| Hose End (2) Inside Diameter (In | 1.56 In. |
| Hose End (2) Outside Diameter (I | 1.8 In. |
| Hose End (3) Inside Diameter (In | 1.45 In. |
| Hose End (3) Outside Diameter (I | 1.9 In. |
| Hose Shape | Molded Assembly |
| Material | Metal |
| Material | Plastic |
| Material | Rubber |
| Maximum Working Pressure | 50 PS |
| Maximum Working Pressure (psi) | 100 PSI |
| Package Contents | Heater Hose Assembly |
| Protective Sleeve Attached | No |
| Thermostatically Controlled | No |
| With Clamps | Yes |
Verified Vehicle Fitment
Make: Ford
Model: 2 verified models — see exact combinations below.
Years: 2011–2018 — varies by model and configuration.
Check before ordering: Match the year, make, model, position, and every engine, transmission or other restriction in the same row. Listed years do not apply to every model.
View vehicle applications (4 configuration groups)
| Years | Make | Model | Position | Engine / transmission / notes |
|---|---|---|---|---|
| 2011–2018 | Ford | F-150 | Upper - Tee To Thermostat | Engine: 5.0 V8; From Thermostat Housing to Water Outlet |
| 2011–2018 | Ford | F-150 | Upper | Engine: 5.0 V8; From Thermostat Housing to Water Outlet |
| 2011–2017 | Ford | Mustang | Upper - Tee To Thermostat | Engine: 5.0 V8; From Thermostat Housing to Water Outlet |
| 2015–2018 | Ford | Mustang | Upper - Tee To Thermostat | Engine: 5.2 V8; From Thermostat Housing to Water Outlet |
Source: supplier-verified applications for Dorman 626-541. A vehicle not listed is not confirmed compatible.
