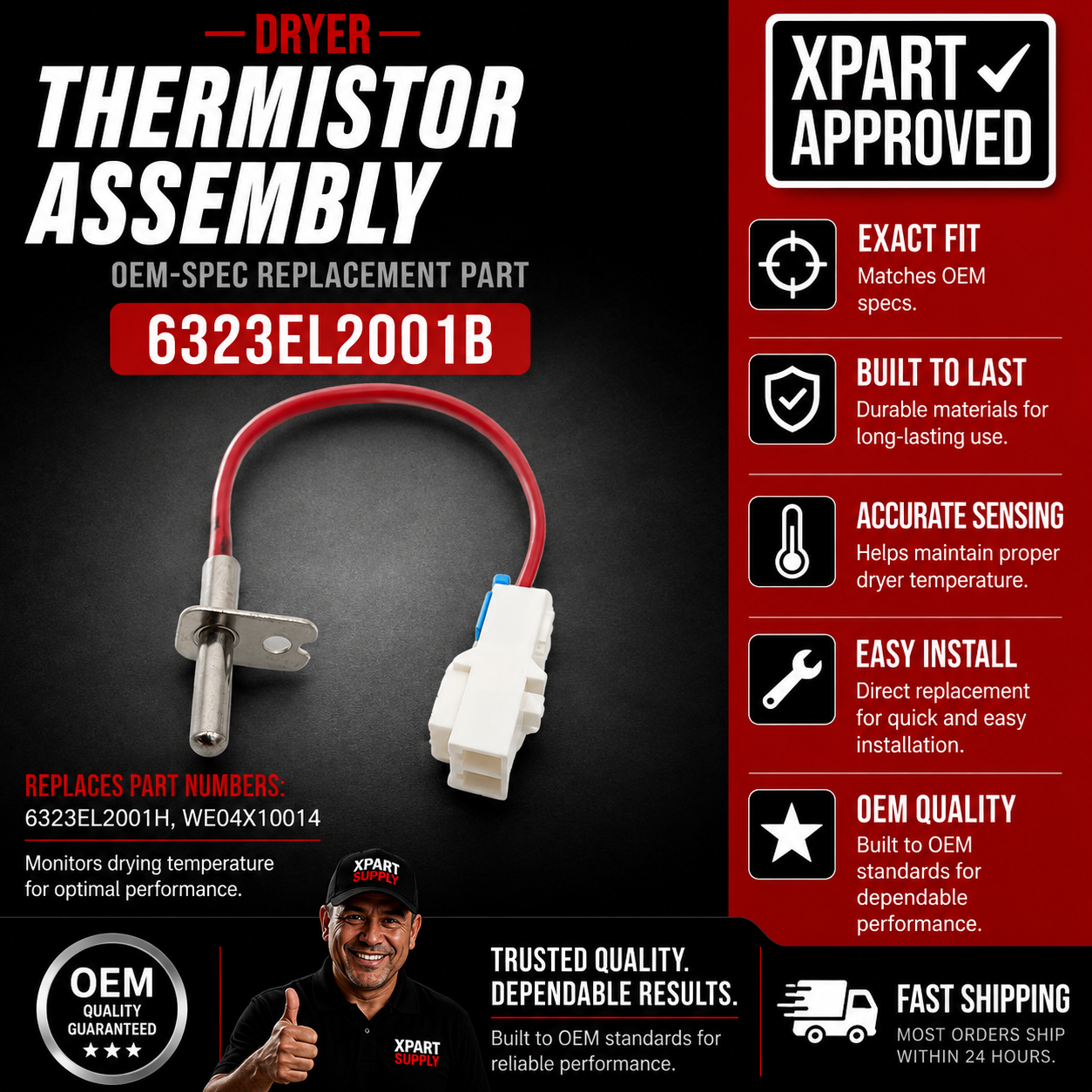

LG Dryer Thermistor 6323EL2001B, Replaces 6323EL2001H

The LG 6323EL2001B Dryer Thermistor mounts to the blower housing and changes electrical resistance as exhaust-air temperature changes. The dryer's electronic control uses this signal to monitor and regulate heating during the cycle. It replaces discontinued LG OEM number 6323EL2001H.

A failed or inaccurate thermistor may contribute to incorrect heat, long drying times, premature shutdown, overheating or a temperature-sensor error code. Similar symptoms can also result from restricted venting, lint buildup, a failed heating element, gas-ignition problem, defective thermostat, damaged wiring or electronic-control failure. Test the thermistor and inspect the exhaust system before replacing parts.

Note: WE04X10014 appears in aftermarket cross-reference listings for this thermistor family but was not verified as a directional LG OEM predecessor. It is included as a reference-only number.

Is This the Right Part?

Confirm the complete dryer model and revision before ordering. Disconnect electrical power and allow the dryer to cool before opening the cabinet.

Common Symptoms

• Dryer runs but clothes come out damp — cycle ends before load is dry
• Dryer overheats or shuts off before the cycle completes
• tE1, tE2 or tE3 temperature-sensor error codes displayed
• Dryer starts normally but heat cuts out after a few minutes
• Auto-sense cycles fail while timed-dry cycles run
• Drum temperature is unstable or inconsistent between cycles

Check Before Replacing

• Test the thermistor resistance with a multimeter — compare to the specification in the service manual for your model; an open or shorted reading confirms failure
• Inspect and clean the lint trap, exhaust duct and exterior vent — restricted airflow causes overheating that can mimic or cause thermistor failure
• Check the thermal fuse (commonly 6931EL3003D) — a blown fuse cuts heat entirely and is a separate component from the thermistor
• Verify the wiring harness and connector at the thermistor for corrosion, damage or a loose connection before ordering a replacement sensor

Part Details

Installation Notes

1. Disconnect electrical power and allow the dryer to cool completely before opening the cabinet.
2. Photograph the thermistor mounting position and wire harness routing before disconnecting.
3. Remove the rear panel to access the blower housing and exhaust duct area.
4. Disconnect the two-wire harness and unscrew the probe from the duct or housing.
5. Compare the new 6323EL2001B with the original — verify probe dimensions and connector before installing.
6. Ensure the probe seats flush against the duct wall for accurate temperature readings, then run a test cycle.

Use a qualified technician when diagnosis or installation is outside your experience.

Verified Compatible Models

DLE0332W, DLE0442W, DLE2512W, DLE2514W, DLE2515S, DLE2516W, DLE3733S, DLE3733W, DLE3777W, DLE5955G, DLE5955W, DLE5977B, DLE5977S, DLE5977SM, DLE5977W, DLE6942W, DLE7177RM, DLE7177WM, DLE8377NM, DLE8377WM, DLE9577SM, DLE9577WM, DLEX3470W, DLEX5000V, DLEX7177RM, DLEX7177WM, DLEX8500W, DLEX8900B/00, DLEY1701WE, DLG0332W, DLG0452W, DLG2522W, DLG2524W, DLG2525S, DLG2526W, DLG2532W, DLG3744S, DLG3744W, DLG3788W, DLG5002W, DLG5932S, DLG5932W, DLG5966G, DLG5966W, DLG5988B, DLG5988S, DLG5988SM, DLG5988W, DLG6952W, DLG7188RM, DLG7188WM, DLG8388NM, DLG8388WM, DLG9588WM, DLGX0002TM, DLGX3701V/00

Fitment reminder: Match the complete model number, including suffixes and revision digits, before ordering. Confirm the complete dryer model and revision — similar LG thermistors may differ in probe dimensions or connector type.
