Whirlpool Washer Agitator directional cogs / agitator repair kit 80040, Replaces 99989668, 387091, 3366877, 285770, 285612, 80040VP

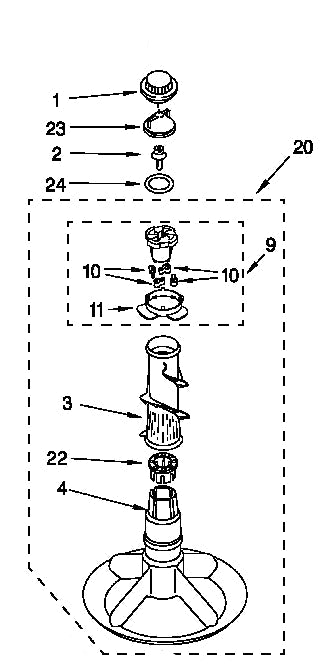

OEM kit containing four plastic agitator directional cogs, also called agitator dogs or dog ears. The cogs allow the upper agitator to rotate in one direction while preventing reverse rotation; commonly used in direct-drive top-load washers.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Washer agitates poorly or will not agitate effectively.
• Upper agitator spins freely in both directions.
• Clothes receive reduced wash action because the upper agitator is not ratcheting.
• Agitator may move intermittently or slip under load.

Check Before Replacing

• With the washer unplugged and empty, gently check whether the upper agitator rotates freely in both directions; excessive free rotation can indicate worn directional cogs, but this check is not conclusive.
• Observe whether the lower agitator moves while the upper portion fails to engage during a normal cycle; do not place hands in the washer while it is operating.
• Inspect the accessible cogs for visibly worn, cracked, or missing teeth only after following the model-specific procedure for removing the agitator.
• Confirm that the installed agitator design and model-specific parts list call for the 80040 cog set before ordering.

Pro Tip

Part Details

Key Features

• Whirlpool OEM agitator directional cogs, also called agitator dogs or dog ears.
• Set contains four plastic cogs.
• Designed for commonly used Whirlpool direct-drive top-load washer agitators.
• Allows one-way ratcheting of the upper agitator.
• Listed by Whirlpool as an agitator repair kit for an upper agitator that is not moving properly while the bottom part does.

Installation Notes

• Disconnect electrical power before servicing the washer.
• Use the model-specific agitator removal and reassembly procedure; the exact access method can vary by washer.
• Replace all four cogs as a set and ensure they are seated in the agitator cam in the correct orientation.
• Inspect the cam, retainer, and agitator teeth during disassembly; replace additional components only if the model-specific parts information or their condition requires it.
• Reassemble the agitator securely and verify proper one-way ratcheting by hand before restoring power.

Verified Compatible Models

11020642991, 11020922991, 11021882001, 11022862100, 11026812690, 11029522800, ITW4300SQ0

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
