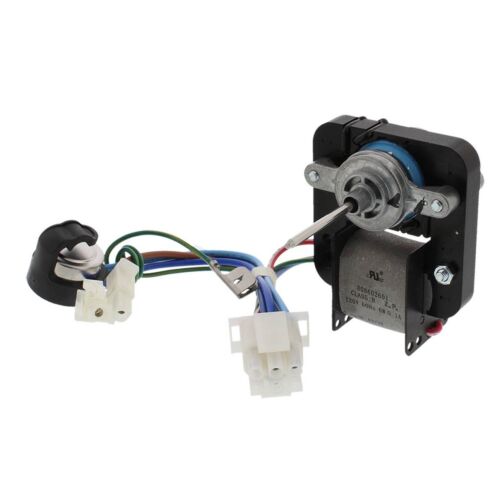

Electrolux / Frigidaire Refrigerator Evaporator fan motor with harness 808602602, Replaces 808602601, 241854601

Genuine OEM refrigerator evaporator fan motor with harness; some listings also identify the assembly as including a defrost thermostat. The motor circulates air through the refrigerator compartment.

Is This the Right Part?

Common Symptoms

• Evaporator fan does not run
• Unusual fan noise
• Freezer or refrigerator compartment is warmer than expected
• Frost or ice buildup associated with inadequate air circulation
• Refrigerator runs longer than usual

Check Before Replacing

• With the refrigerator unplugged, visually inspect the fan blade and surrounding area for ice, obstruction, or physical damage.
• With power disconnected, gently rotate the fan blade by hand; it should turn freely without binding or excessive roughness.
• Listen for abnormal fan noise during operation, without reaching into the compartment or bypassing safety controls.
• If appropriate for the appliance and technician skill level, check motor-winding continuity with power disconnected and the harness isolated; lack of continuity can indicate an open motor winding, but other refrigerator faults can produce similar symptoms.
• Inspect the motor and harness connectors for loose, damaged, or visibly overheated connections; confirm the refrigerator model's wiring diagram before electrical testing.

Pro Tip

Part Details

Key Features

• Genuine OEM evaporator fan motor with harness
• Designed for selected Frigidaire, Electrolux, Crosley, Kenmore, and White-Westinghouse refrigerators
• Draws air over the evaporator coils and distributes it through the compartments
• Listed specification: 120 volts, 6 watts
• Some listings identify the assembly as including a defrost thermostat

Installation Notes

• Disconnect electrical power before installation.
• Access is generally from the freezer evaporator/fan area; remove only the covers or panels required for the appliance model.
• Record or photograph connector positions and harness routing before disconnecting the old assembly.
• Keep the replacement harness clear of the fan blade and reinstall connectors fully.
• After installation, restore power and verify that the fan operates normally without abnormal noise or obstruction.

Verified Compatible Models

25355333607, BFHS2611LM0, BFHS2611LM1, BFHS2611LM2, CRSE230KW0, CRSE234JB2, CRSE234JB3, CRSE234JQ2, CRSE234JQ3, CRSE234JSM2, CRSE234JSM3, CRSE234JW2, CRSE234JW3, CRSE264JB2, CRSE264JQ2

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
