When a radiant surface element fails, that burner stops heating entirely or produces uneven, unreliable heat — making it impossible to boil, simmer, or fry with any consistency. The 903118-9010 is the correct OEM replacement element that restores full 2200W heating performance to your 8" burner zone.
✓ Symptoms This Part Fixes
- Burner won’t heat at all when turned on
- Burner heats unevenly or only partially glows
- Element glows red in spots but not uniformly
- Burner takes much longer than normal to reach temperature
- Visible cracks, blistering, or burn marks on the element surface
- Range trips the breaker when that burner is used
✓ Part Details

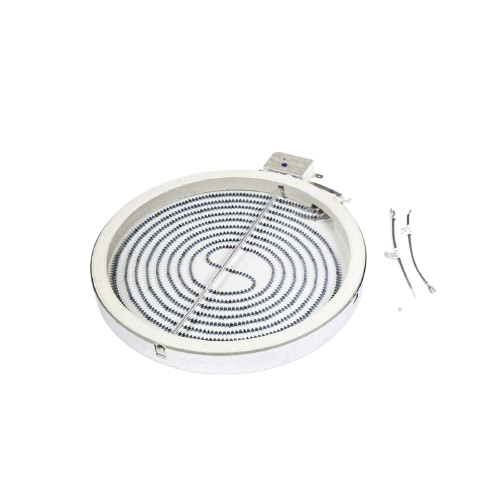

- OEM Part Number: 903118-9010
- Type: Radiant Surface Element (Smooth-Top / Glass Cooktop)
- Size: 8 inches
- Power: 2200 Watts
- Cross-Reference: 318198801
- Fits: Frigidaire, Kenmore, Crosley, Gibson, Westinghouse, Maytag electric ranges and cooktops
✓ Installation Notes
- Skill Level: Intermediate — glass cooktop disassembly required
- Disconnect power at the breaker before starting — do not rely on the range switch alone
- The glass cooktop must be lifted to access the element beneath
- Photograph the element wiring connections before disconnecting
- Handle the glass cooktop carefully — support it fully when lifted to avoid cracking
- Restore power and test the burner at multiple heat settings before reassembling
✓ Compatible Models
Fits select Frigidaire, Kenmore, Crosley, Gibson, Westinghouse, and Maytag electric range and cooktop models including: FEF365ASH, FEF365ASJ, FEF366ASH, FEF366ASJ, FEF366CBC, FES365EBA, FES367ABD, FES367CEBC, FES368DSA, FED365EBA, FED367ABD, FEC30S6ABC, FEC32S6ABC, GLED388DBA, GLES388DBA, MEF365BHD3, MEF367CGB2, PFEF373ES1, PFEF375CS3, BFEF374EB1, CFEF372EB1, CFES365EB1, CGEF322ES1, CGLEF384DS2, WEF365BHDB, 79045781300, 79046101300, 79090152300, 79092312302, 79094312301, 79095312302, and many more. Verify your model number before ordering.
✓ Frequently Asked Questions
How do I know if the surface element is the problem? If one burner won’t heat while others work fine, or if you see visible damage (cracks, blistering, burn marks) on the element surface, the element itself is the most likely cause. Test the infinite switch first if the element shows no visible damage.
Is this compatible with my glass cooktop range? Yes — 903118-9010 is a radiant element designed for smooth-top (glass/ceramic) electric ranges. Verify your model number before ordering.
Does this replace 318198801? Yes — 903118-9010 is the current OEM part number that supersedes 318198801.
✓ Model-Specific Repair Pages
A failed infinite switch (the burner control knob switch) cuts power to the element and produces identical symptoms to a dead element — no heat, no glow. Before ordering a new element, use a multimeter to test continuity across the element terminals with it disconnected. If the element tests good, the infinite switch is your fix instead. If the element fails continuity, 903118-9010 is what you need.
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
