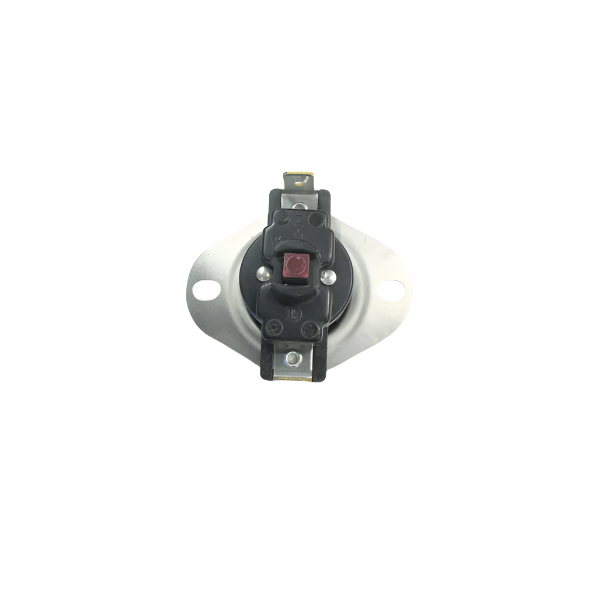

Dexter Laundry Commercial Dryer Safety Thermostat / Overtemp Thermostat 9576-207-006 – Superseded by 9576-213-001

Is This the Right Part?

Common Symptoms

• Repeated tripping of the manual-reset safety thermostat
• Dryer heat shuts off because the safety thermostat has opened the circuit

Check Before Replacing

• With power disconnected, inspect the thermostat terminals and wiring for loose or damaged connections.
• Check whether the manual-reset button has tripped; resetting does not establish that the thermostat or the underlying over-temperature condition is fault-free.
• Use the manufacturer’s wiring diagram or service documentation to verify the thermostat’s circuit position before electrical testing.

Pro Tip

Part Details

Installation Notes

• Disconnect electrical power before servicing.
• Install only in the documented safety-thermostat location and verify the replacement part against the dryer model and serial number.
• Do not bypass the safety thermostat.

Verified Compatible Models

DC0050__-10, DC0080__-10, DCTD30, DN0050NC-10, DN0050NC-11EB2R, DRC55, DTCK80, T-170, T-30, T-350 SWD, T-50, T-80

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
