✅ This is a Complete Door Assembly — Not Just the Glass. ADC30000601 includes the full outer door panel, inner glass (4890W1N005L), and inner plate (MGJ67004401) as a single factory-assembled unit. No sourcing individual panels — bolt it on and you’re done.

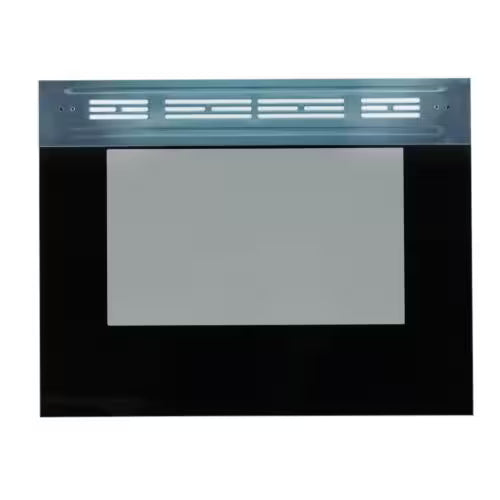

LG Range Oven Door Broken or Cracked? Door Assembly ADC30000601 – Full OEM Replacement Fast
A broken, shattered, or heat-damaged LG range oven door requires a complete door assembly replacement — not just the glass panel. In most LG freestanding and slide-in ranges, the oven door is a multi-layer assembly consisting of the outer door panel, inner glass (4890W1N005L), and inner plate (MGJ67004401) — all integrated into a single unit. When the door is cracked, shattered, or structurally damaged, heat escapes during cooking, oven temperatures become unstable, and the appliance may be unsafe to operate. ⚡ Common damage point in LG ranges after impact, thermal shock, or self-clean cycle stress. Part ADC30000601 is the genuine OEM LG complete door assembly that restores a full factory seal, proper insulation, and safe oven operation — in a single bolt-on replacement.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Range powers on and heating elements function normally
- ✔ Oven control board and temperature sensor are confirmed OK
- ✔ Door hinges are intact and not bent or seized
- ✔ ONLY problem is a broken, cracked, shattered, or structurally damaged oven door
Not sure? Send us your model number — we'll confirm before you order.
🔧 Common Symptoms
- Oven door glass cracked, shattered, or broken
- Heat escaping from around the door during baking or broiling
- Oven temperature inconsistent or unable to hold set temperature
- Door panel physically damaged, dented, or warped
- Inner glass delaminated or discoloured after self-clean cycle
✔ If these symptoms match, the complete door assembly is the correct fix — replacing individual glass panels on LG doors is not recommended as the assembly is factory-sealed.
✔ In most cases, swapping the ADC30000601 door assembly fully restores oven seal, insulation, and safe operation.
📦 Part Details
- Part Number: ADC30000601
- Type: Complete Range Oven Door Assembly — full bolt-on replacement
- Includes: Outer door panel, inner glass (4890W1N005L), inner plate (MGJ67004401)
- OEM: Genuine LG replacement part
- Also Known As: ADC30000601, 4890W1N005L, MGJ67004401, LG oven door, LG range door assembly
- Brands: LG
⚠️ Recommended While Repairing:
Before installing the new door, inspect both door hinges for bending, cracking, or seized pivot points. A damaged hinge is often the root cause of door glass failure — installing a new door on a bent hinge will stress the glass and can cause it to crack again. Replace hinges at the same time to protect the repair.
Before installing the new door, inspect both door hinges for bending, cracking, or seized pivot points. A damaged hinge is often the root cause of door glass failure — installing a new door on a bent hinge will stress the glass and can cause it to crack again. Replace hinges at the same time to protect the repair.
⚙️ Installation
Skill Level: MODERATE — 20 to 40 minutes. Disconnect power before servicing. Open the existing door to the broil-stop position, flip the hinge locks down to release the door, then lift the door straight up and off the hinges. Align the new ADC30000601 door assembly onto the hinge arms, flip the locks back up to secure, and close the door fully to confirm proper seal and alignment.
✓ Compatible Models
Confirmed compatible with select LG freestanding and slide-in range models using the ADC30000601 door assembly. Contact us to verify your model number before ordering.
💡 Pro Tip
Check the Hinges Before You Install the New Door:
LG range door glass failures are frequently caused by a bent or seized hinge putting uneven stress on the door frame — not by impact alone. Before bolting on the new ADC30000601 assembly, manually cycle both hinges through their full range of motion. They should move smoothly and return to position under spring tension. If either hinge is stiff, bent, or doesn’t spring back, replace it first — otherwise the new door is at risk of the same failure.
LG range door glass failures are frequently caused by a bent or seized hinge putting uneven stress on the door frame — not by impact alone. Before bolting on the new ADC30000601 assembly, manually cycle both hinges through their full range of motion. They should move smoothly and return to position under spring tension. If either hinge is stiff, bent, or doesn’t spring back, replace it first — otherwise the new door is at risk of the same failure.
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
