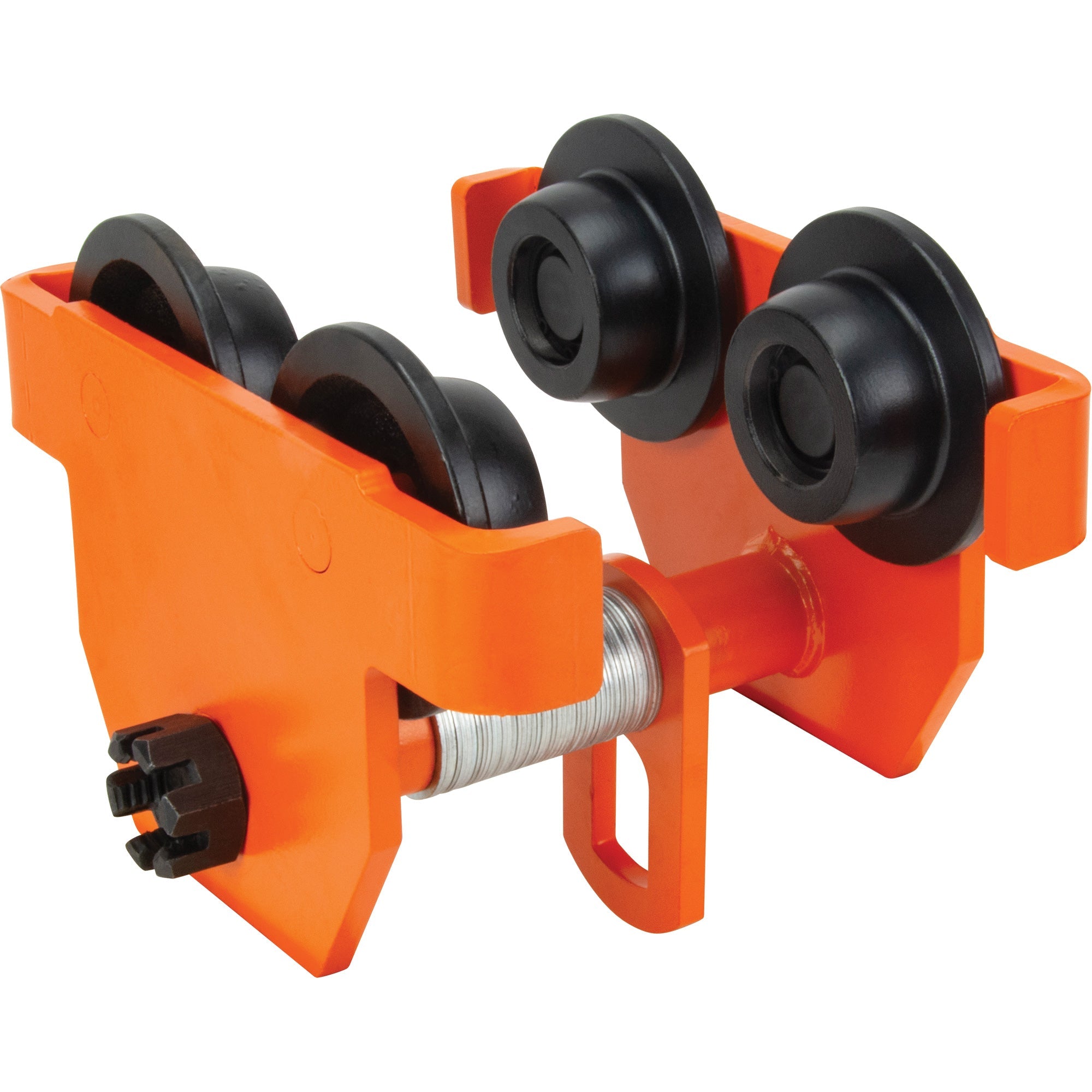

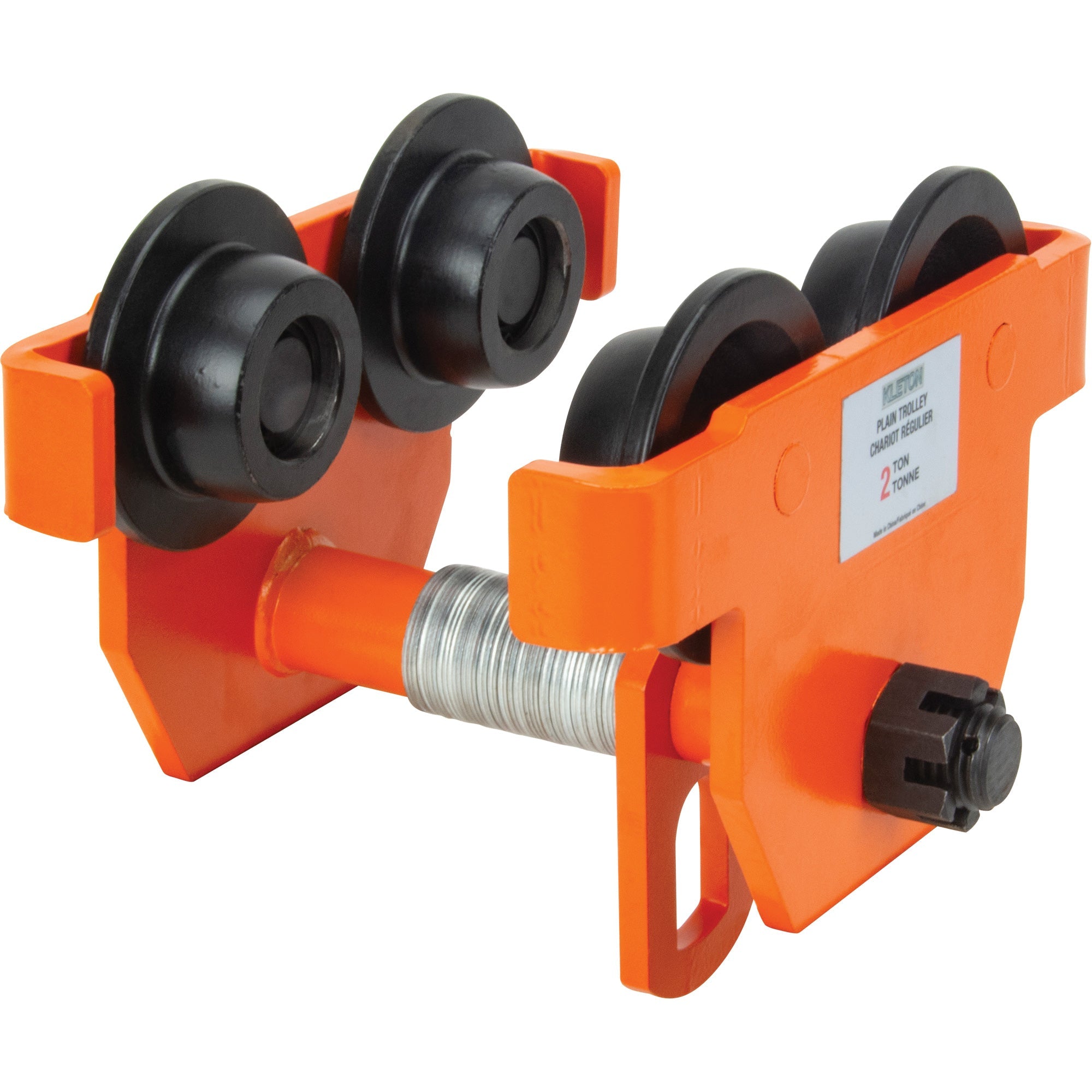

- Easily adjusts to fit various flanges, I-beams and H-beams
- Use on straight or curved track
- Can be installed or removed at any position on the beam
- Heavy-duty cast iron wheels
- Deep width flange provides superior contact with the beam
- Safety plate included
- Meets ASME B30.16
- Capacity: 10000 lbs. (5 tons)
- I-Beam Flange Width: 4-14/16" - 6-7/8"
- Manufacturer's Warranty: 1 Year Limited
- Net Weight: 66.37 lbs.

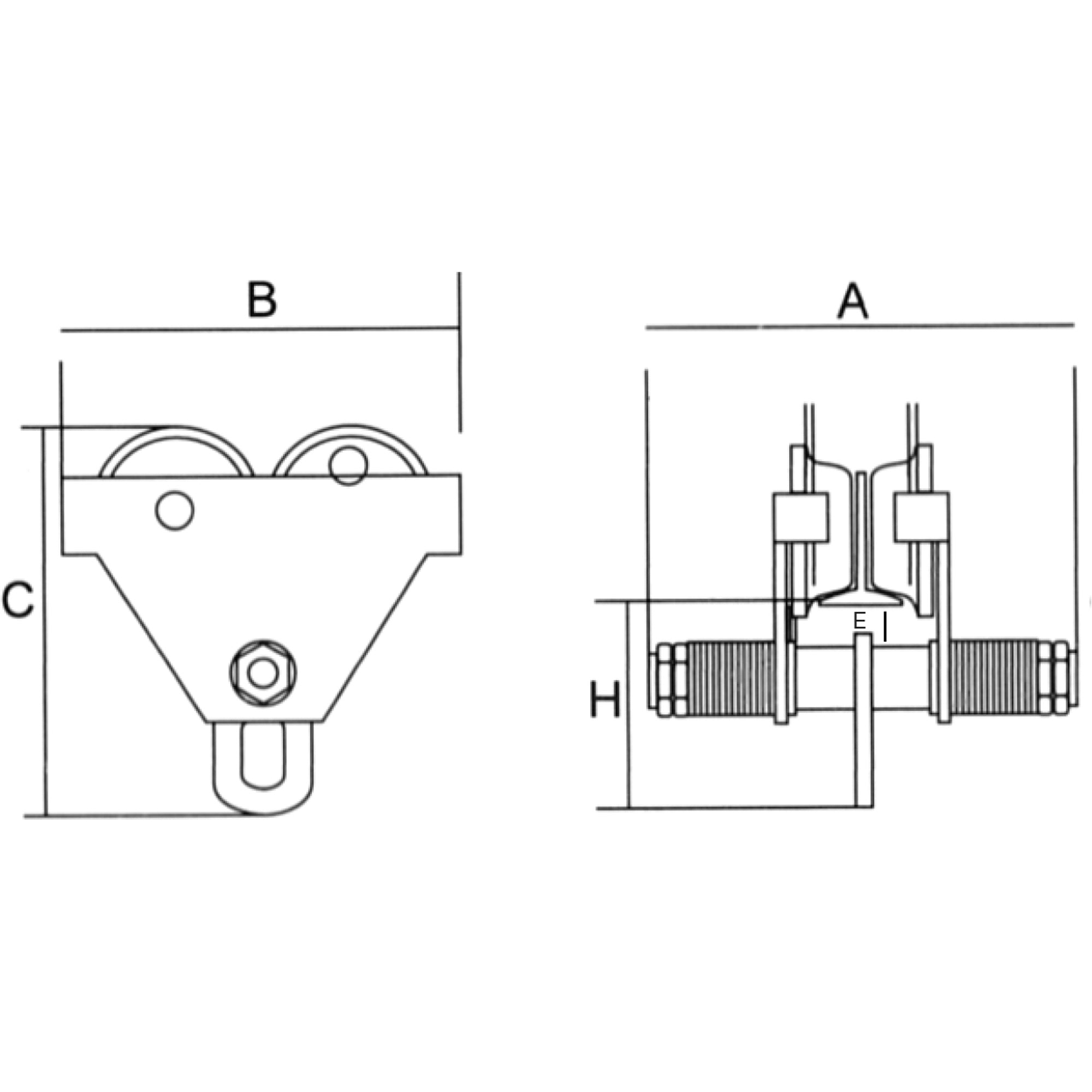

- A: 13-9/16"
- B: 14-1/8"
- C: 14-1/8"
- E: 13/16"
- H: 7-3/16"
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
