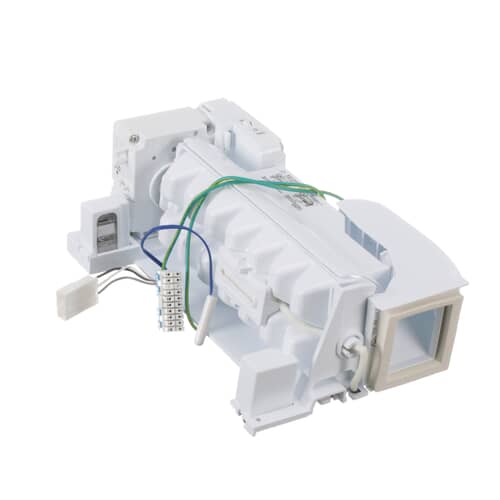

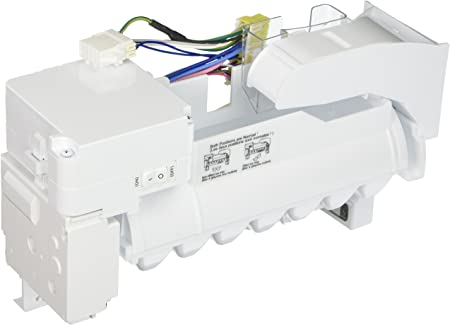

LG Refrigerator Ice Maker Assembly AEQ73110212, Replaces AEQ73110208, AEQ73110211, EAD61050402

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• No ice or reduced ice production
• Ice maker does not complete its harvest cycle
• Small or irregular ice output
• Water leaking or missing the ice mold
• Ice production stops when the ice maker is off or the freezer is too warm

Check Before Replacing

• Confirm the refrigerator’s ice-maker function is switched on.
• Verify that the refrigerator water-supply valve is open and the supply hose is not kinked.
• Check that the freezer is cold enough for ice production; LG recommends approximately -4°F (-20°C) or colder for reliable production.
• If the appliance provides an ice-maker test function, run the model-specific test and observe whether the motor cycles and water enters the mold; stop and request service if the test fails.
• Inspect the ice bin and ice-maker compartment for incorrect bin installation, heavy ice clumping, or visible water leakage.

Pro Tip

Part Details

Installation Notes

• Disconnect refrigerator power before accessing or replacing the ice-maker assembly; follow the refrigerator’s service documentation.
• Turn off the refrigerator water supply before disconnecting any water-related connection.
• Remove the ice bin and carefully disconnect the ice-maker electrical harness before removing the old assembly.
• Install the replacement assembly in the existing mounting position and ensure the wiring connector is fully seated; do not force connectors or overtighten mounting hardware.
• Restore the water supply and power, confirm the ice-maker function is enabled, and allow the freezer to reach operating temperature before expecting ice production.
• Discard initial ice according to the refrigerator’s owner or service instructions if the appliance has been newly installed or serviced.

Verified Compatible Models

79570322311, 79570322312, 79570323311, 79570323312, 79570329311, 79570329312, 79570332410, 79570333410, 79570339410, 79572063316, 79572482410, 79572482411, 79572483410, 79572483411, 79572489410

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
