DISHWASHER FAILS TO START OR COMPLETE A CYCLE

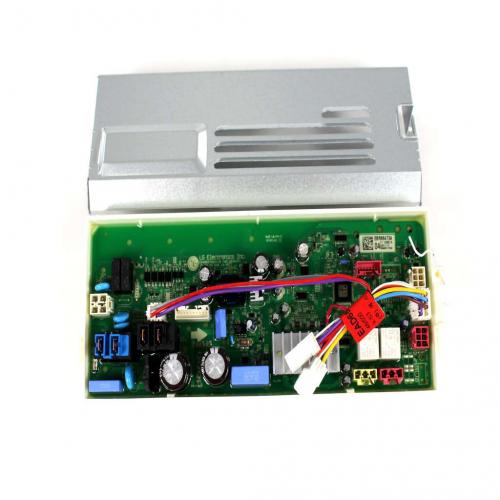

LG Dishwasher Main Control Board / Electronic Control Board AGM76429511, Fixes Dishwasher fails to start or complete a cycle
Genuine LG OEM electronic main control board that manages dishwasher washing, draining, and drying functions.
Part AGM76429511Replaces AGM76429503, EBR79609803, EBR79609805, EBR86473404LG
Guaranteed to Fit — or your money back.
Confirm your full appliance model number before ordering.
Confirm your full appliance model number before ordering.
Is This the Right Part?
Part NumberAGM76429511
ReplacesAGM76429503, EBR79609803, EBR79609805, EBR86473404
ManufacturerLG
Appliance TypeDishwasher
Part TypeDishwasher Main Control Board / Electronic Control Board
✅ Cross Reference Information
Current Part NumberAGM76429511
ReplacesAGM76429503, EBR79609803, EBR79609805, EBR86473404
Common Symptoms
- Dishwasher has no apparent power or becomes unresponsive
- Dishwasher stops mid-cycle
- Wash, drain, or dry functions do not operate correctly
- Control buttons or cycle selections do not respond
- Dishwasher does not drain or fill when other related components and wiring test good
Check Before Replacing
- Confirm the dishwasher model number and compare it with the part listing before replacement.
- Check for displayed error codes and follow the model-specific service or diagnostic procedure; an error code does not by itself prove the control board is defective.
- With power disconnected, visually inspect the board and wiring harnesses for burnt areas, corrosion, loose connectors, or damaged wiring.
- Confirm the door latch or door-switch function and user-interface operation before condemning the main board.
- If the dishwasher is completely dead, have a qualified technician verify power reaches the appliance and control board before replacing the board.
Pro Tip
A control-board symptom can be caused by the door switch, user interface, wiring, power supply, or another load. Rule out those conditions before replacing the board.
Part Details
Part NumberAGM76429511
Part TypeDishwasher Main Control Board / Electronic Control Board
ManufacturerLG
Appliance TypeDishwasher
Primary FunctionControls the dishwasher’s major electrical operations, including wash-cycle sequencing, water circulation, draining, heating, and drying.
Installation Notes
- Disconnect electrical power to the dishwasher before installation.
- Wear protective gloves when handling the board and door-panel components.
- Follow the model-specific service documentation for access and connector placement.
- With power disconnected, transfer connectors one at a time or document their original positions before removal.
- Handle the printed-circuit board by its edges and avoid contact with electronic components.
- After installation, restore power and verify operation using the appliance’s normal or model-specific diagnostic procedure.
Verified Compatible Models
LDF5545BD, LDPN6761T, LDB4548ST/00, LDF5545BD/00, LDF5545SS/00, LDF5545ST, LDF5545WW, LDF5545WW/00, LDFN4542B/00, LDFN4542D/00, LDFN4542S/00, LDFN4542W, LDFN4542W/00, LDFN454HT, LDFN454HT/00, LDP6797BM, LDP6797BM/01
Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
