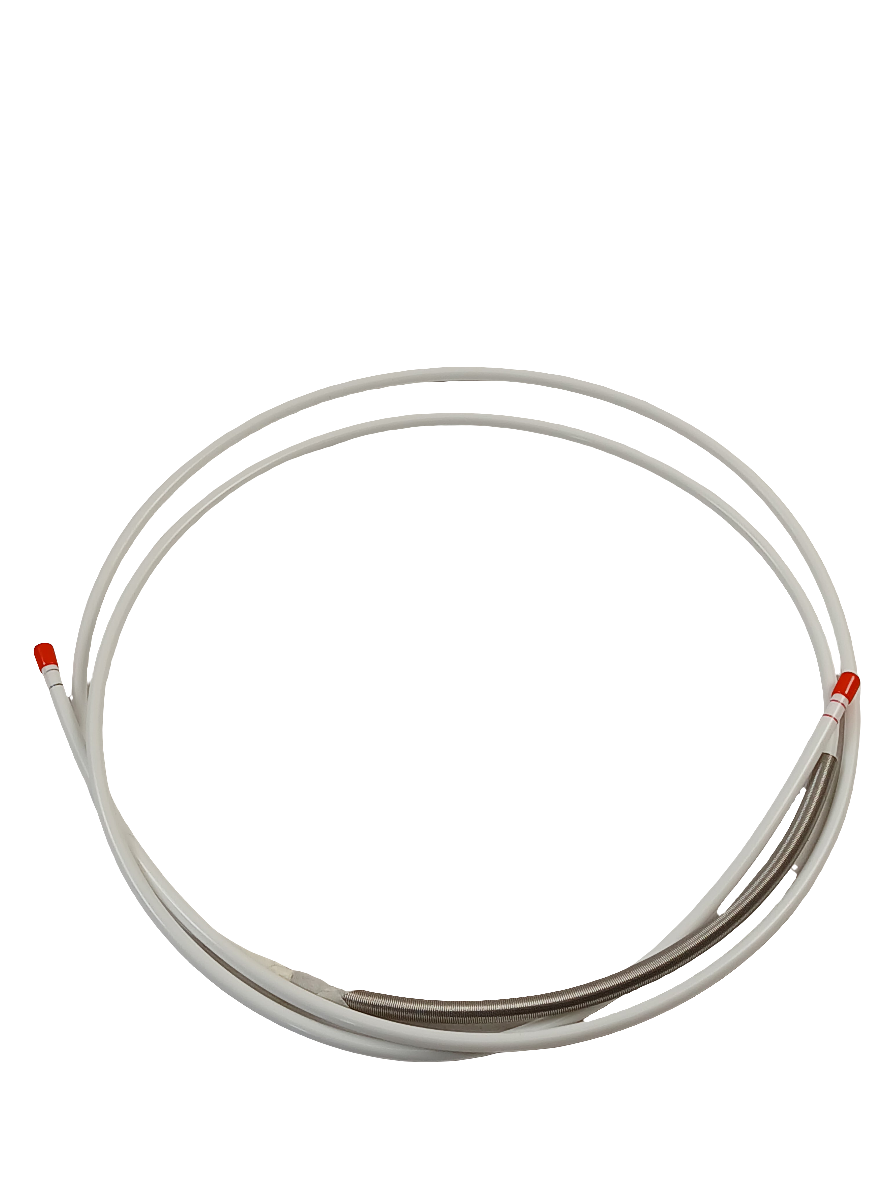

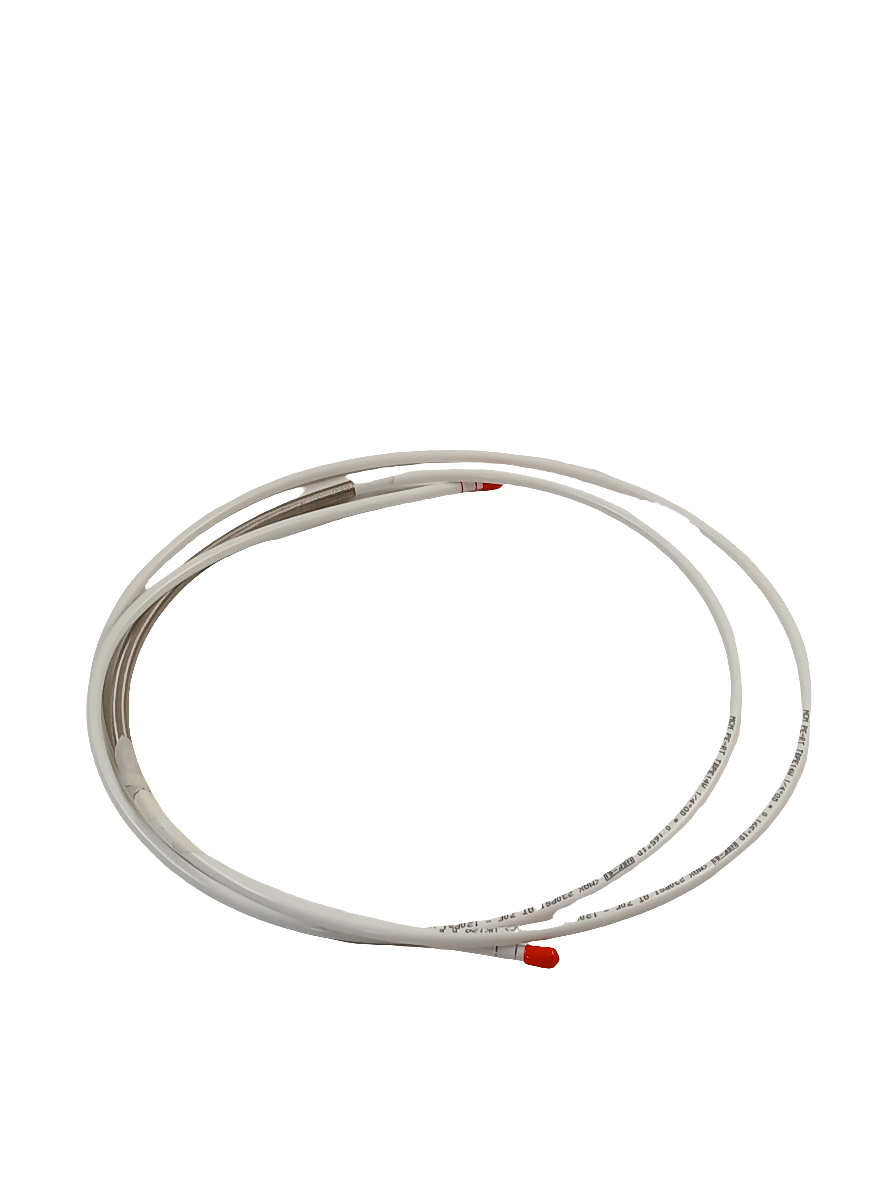

LG Refrigerator Inject Tube Assembly (Ice Maker Fill Tube) AJR73964201, Replaces 4970JQ3016J

Genuine LG refrigerator ice-maker fill/inject tube assembly that directs water into the ice-maker mold during the fill cycle.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Little or no ice production when the ice maker otherwise cycles
• Water leaking near the ice-maker fill path
• Ice buildup or blockage at the fill-tube outlet
• Water flow entering the ice maker inconsistently or outside the mold

Check Before Replacing

• With the refrigerator unplugged and the water supply safely shut off, visually inspect the tube and its outlet for ice blockage, kinks, cracks, deformation, or disconnected tubing.
• Check for visible water residue or leakage around the tube connections after restoring the water supply, without touching energized components.
• Confirm that the tube outlet is aligned with the ice-maker fill area and is not obstructed by surrounding ice or parts.
• If the tube appears clear and intact but the ice maker still receives no water, check other portions of the refrigerator water system rather than assuming this tube is defective.

Pro Tip

Part Details

Key Features

• Genuine LG injector/fill-tube assembly
• Designed for refrigerator ice-maker water delivery
• Directs water into the ice-maker mold
• Listed by appliance-parts suppliers as an OEM component

Installation Notes

• Disconnect electrical power before beginning installation.
• Shut off the refrigerator water supply and be prepared for residual water in the tubing.
• Replace the tube using the same routing and connection orientation as the removed part; do not force or sharply bend the tubing.
• After installation, restore the water supply and inspect the connections for leaks before returning the refrigerator to normal operation.

Verified Compatible Models

795.70332410, 70323, 70329, 70355, 70357, 71355, 72493, 72495, 72595, 72597, 73102, 73105, 73107, 73109, 73115, LFX25973D, LFX25974ST, LFX28968D, LFX28968SB, LFX28968ST, LFX28968SW, LFX28978SB, LFX28978ST, LFX28978WH, LFX28979ST, LFX28979SW, LFX28992ST, LFXS24566S, LFXS26596S, LFXS26973D, LFXS26973S, LFXS27566S, LFXS28566D, LFXS28566D/00, LFXS28566M, LFXS28566S, LFXS28596D, LFXS28596M, LFXS28596S, LFXS28968D, LFXS28968D/00, LFXS28968S, LMX28988ST/06, LMXS27626D, LMXS27626S, LMXS27676D, LMXS28596D, LMXS28596S, LMXS28626D, LMXS28626S

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
