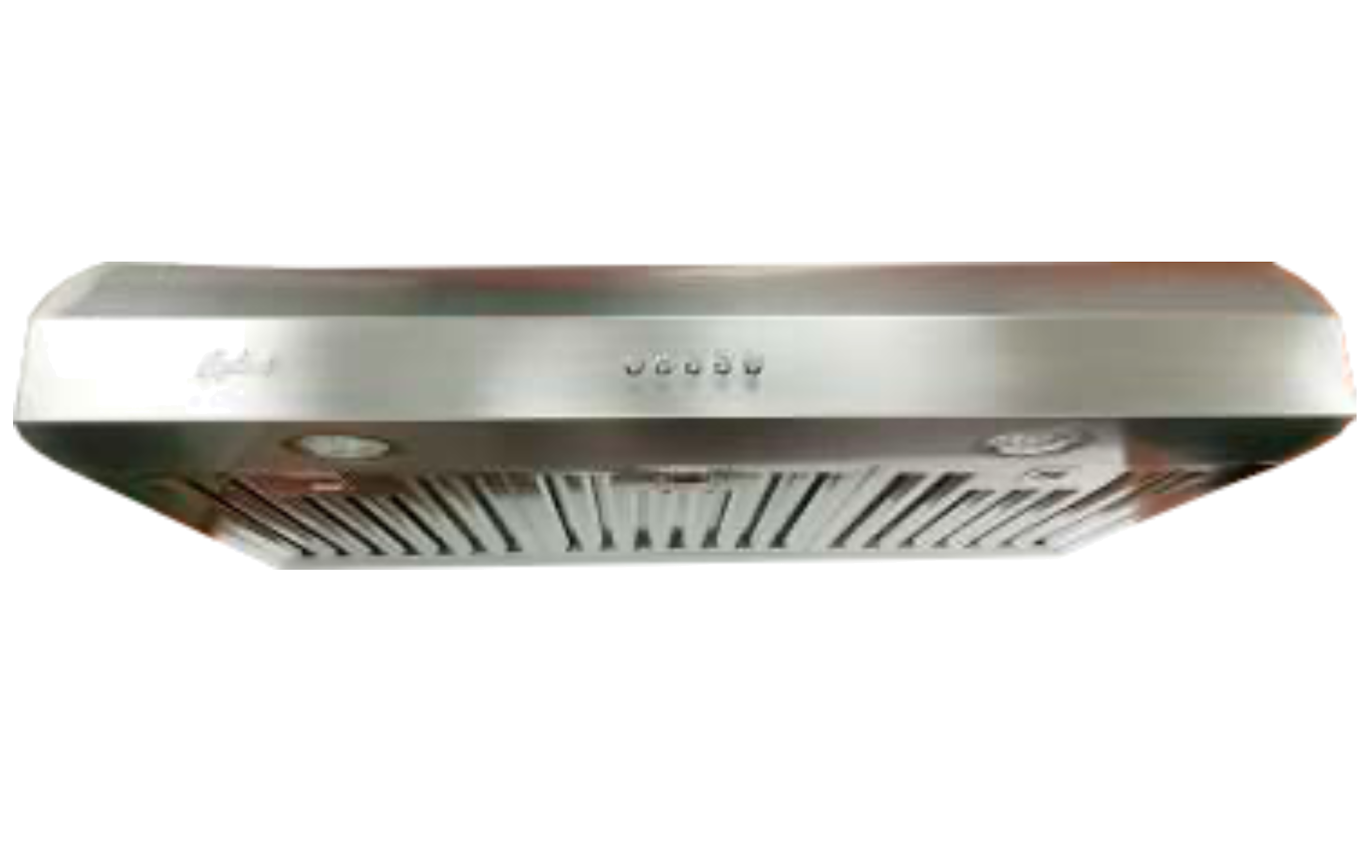

Cyclone Range Hoods Inc. CYB919R Classic Collection 30-inch Stainless Steel Under Cabinet Range Hood CYB919R30SS

A 30-inch stainless steel under-cabinet range hood with dual fans, 570 CFM airflow, LED lighting, and removable stainless steel baffle filters.

Is This the Right Part?

Common Symptoms

• Reduced or absent airflow
• Excessive operating noise
• Cooking smoke or grease remaining in the kitchen
• Range hood lighting not operating

Check Before Replacing

• Confirm the hood has electrical power and that the three-speed push-button controls respond.
• Check whether the fan produces airflow at each available speed.
• Inspect the removable baffle filters for heavy grease buildup that could restrict airflow.
• Verify that the exterior duct path and damper are not visibly obstructed.

Pro Tip

Part Details

Key Features

• 30-inch nominal width
• 29.88-inch product width
• 20.25-inch depth
• 5.63-inch height
• 570 CFM maximum airflow
• Dual-fan design with axial blowers rated at 1,600 RPM,

Installation Notes

• This is a ducted under-cabinet range hood.
• Electrical connection is 120 V, 60 Hz, 2.4 A, with hard-wire connection.
• The unit has a 3 1/4 x 10-inch rectangular top or rear knockout and is specified with 6-inch round ducting.
• Disconnect electrical power before installation or service; installation should follow the manufacturer’s instructions and applicable local codes.
