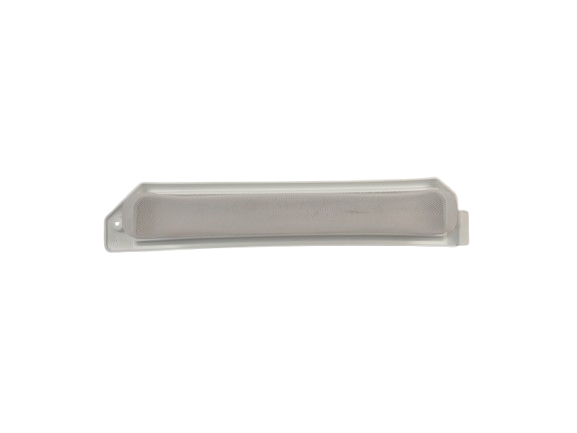

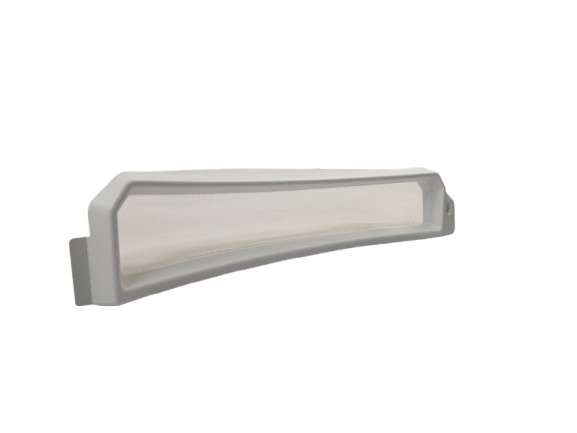

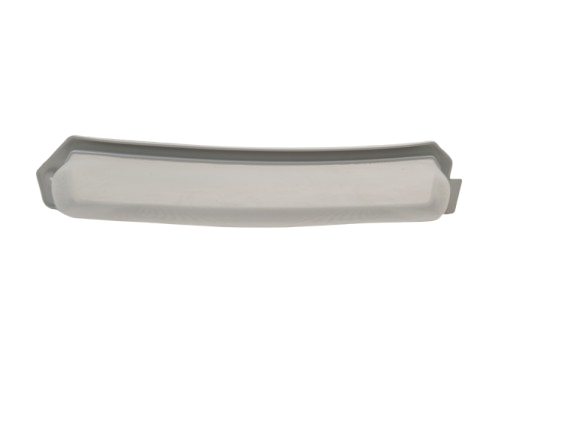

Alliance Laundry Systems / Speed Queen Dryer Lint Filter (White) D503980W, Replaces 503980, 503980W

White OEM dryer lint filter used in select Alliance Laundry Systems, Speed Queen, and related commercial/residential dryers. Official parts manuals identify D503980W as the lint filter; applicability may depend on model and serial number.

Is This the Right Part?

Common Symptoms

• Torn or missing filter mesh
• Lint collecting around the filter opening
• Filter does not seat securely or leaves visible gaps
• Restricted airflow or longer drying times
• Lint buildup in the exhaust path

Check Before Replacing

• Turn the dryer off and disconnect power before inspecting the filter.
• Remove the filter and check the mesh and frame for tears, cracks, warping, heavy residue, or missing sections.
• Check that the filter seats fully in its housing without rocking or leaving visible gaps.
• Clean lint from the filter and surrounding accessible filter area, then verify that the filter is completely dry before reinstalling.
• If drying remains slow after the filter is clean or replaced, inspect the vent path for restriction rather than assuming the filter is the only cause.

Pro Tip

Part Details

Key Features

• Genuine Alliance Laundry Systems / Speed Queen lint filter
• White filter design identified for applicable models
• Captures lint and debris from dryer airflow
• Direct-fit replacement for appliances that specify D503980W
• Replaces archived numbers 503980 and 503980W

Installation Notes

• Disconnect power before servicing.
• Remove the existing filter from its housing using the normal removal direction for the appliance.
• Compare the replacement with the old filter for frame shape, screen orientation, handle, and tabs before installation.
• Insert D503980W fully into the designated filter housing and confirm that it is seated securely with no visible gaps.
• Do not operate the dryer with the lint filter loose, damaged, blocked, or missing.
• Verify the appliance model and serial number before installation because filter shape and housing details can vary.

Verified Compatible Models

ADG3SRGS113CW01, ADG3SRGS113TW01, ADGE8RGS113CW01, ADGE8RGS113TW01, ADGE9BSS113CN01, ADGE9BSS113FN01, ADGE9RGS113CW01, ADGE9RGS113FW01, ADGE9RGS113TW01, ASGE8AGW113TW01, ZDE3SRGS173FW28, ZDEE8BGS543FN01, ZDEE9BGS543FW01

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
