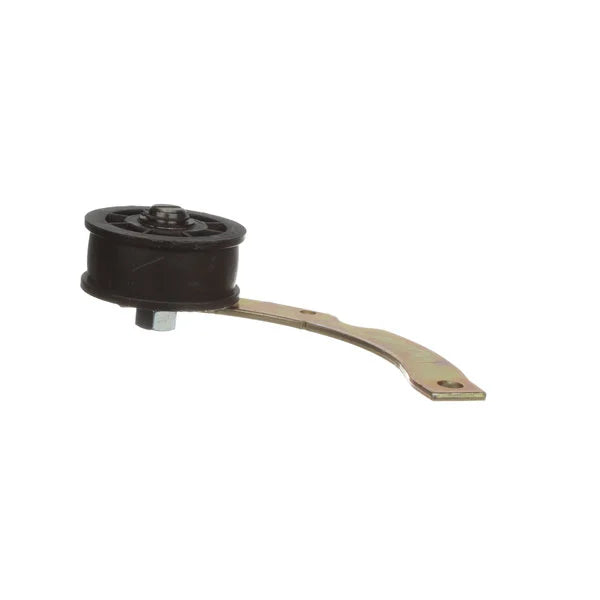

Alliance Laundry Systems (Speed Queen) Dryer Idler Lever and Wheel Assembly D516792, Replaces D510158

Genuine Alliance/Speed Queen dryer idler lever and wheel assembly. The official parts manual identifies D516792 as including the idler-spring, nut, idler lever, shaft, washer, idler wheel-and-bearing assembly, and retaining ring (items 13-18).

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Squealing, squeaking, or grinding from the belt-drive area
• Drum fails to tumble or rotates inconsistently
• Drive belt slips or loses proper tension
• Visible wear, damage, or binding at the idler wheel
• Vibration associated with irregular belt tracking

Check Before Replacing

• Disconnect electrical power before inspection.
• With the dryer safely accessible and the belt unloaded as specified by the model’s service documentation, check whether the idler wheel rotates freely without binding or roughness.
• Inspect the idler wheel, lever, shaft, washer, retaining ring, and belt-contact area for visible wear, cracking, deformation, or displacement.
• Check that the drive belt is routed correctly and remains seated on the idler wheel; do not assume the idler assembly is the cause without checking the belt and other drum-support components.
• Stop inspection and consult the model-specific service documentation if access requires removing panels or releasing belt tension.

Pro Tip

Part Details

Key Features

• Genuine Alliance Laundry Systems/Speed Queen idler lever and wheel assembly
• Assembly includes the idler spring, nut, idler lever, shaft, washer, idler wheel-and-bearing assembly, and retaining ring according to Alliance parts manuals
• Designed for the dryer motor, exhaust-fan, and belt-drive section
• Maintains consistent drum-belt tension during operation
• The exact assembly is documented for selected residential and commercial dryer or stacked laundry models

Installation Notes

• Disconnect electrical power before servicing.
• Use the model-specific Alliance/Speed Queen parts or service manual because access and belt-routing details vary by dryer model.
• Replace or reinstall the complete assembly with its included lever, wheel-and-bearing, shaft, washer, retaining ring, and spring-related components as applicable to the model diagram.
• Before restoring power, verify that the assembly is seated correctly, the retaining hardware is present, and the belt tracks properly over the idler wheel.
• Do not operate the dryer if the wheel binds, the belt is damaged, or any retaining hardware is missing.

Verified Compatible Models

ADEE9BGS173TW01, ADEE9RGS173TW01, ADG3SRGS115TW01-START-2001000001, ADGE9BGS113TW01, ATGE9AGP113TW01, ATGE9ASP115TW01, LED20AW-PLED20AW, SDE607QF1500, SDE807WF, SSE007LF1500, SSG109QF, ADEE9BGS175TW01 THRU S#1912999999, ADEE9RGS175TW01-THRU-S#1912999999, ADG3SRGS117TW01-START-S#2001000001, ADGE9RGS115TW01-THRU-S#1912999999

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
