Samsung Refrigerator Assembly Case Lock DA97-14471A, Replaces DA61-09570A

Samsung OEM assembly case lock, specified as AW3-14, magnet type. It functions as the refrigerator ice-bucket latch/lock mechanism.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Ice bucket is difficult to install or remove
• Ice bucket does not stay locked in position
• Ice bucket shifts or loosens during operation
• Ice dispensing may be affected when the bucket cannot seat or latch correctly

Check Before Replacing

• With the refrigerator powered off, remove and reinstall the ice bucket and confirm that the latch engages fully.
• Inspect the case-lock/latch area for visible cracks, deformation, missing plastic, or a loose magnet.
• Check that the ice bucket is seated evenly and that no ice buildup or foreign material prevents the latch from engaging.
• Compare the latch engagement with the refrigerator’s installation or service documentation; do not force the bucket if it will not seat.

Pro Tip

Part Details

Key Features

• Genuine Samsung OEM assembly case lock
• AW3-14 magnet-type design
• Used as an ice-bucket latch plate or case-lock assembly

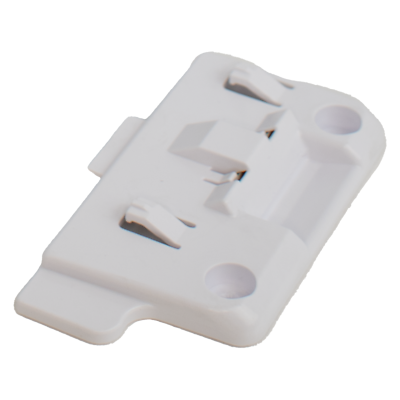

• White plastic latch component
• Replaces Samsung previous part number DA61-09570A

Installation Notes

• Disconnect power before service and handle the refrigerator and ice bucket carefully.
• Remove the ice bucket and follow the model-specific service or installation instructions for accessing the latch assembly.
• Confirm the replacement latch is positioned correctly and that the ice bucket latches securely before restoring power.
• Do not force the ice bucket or latch if alignment is incorrect; verify that the replacement part matches the refrigerator model and existing assembly.

Verified Compatible Models

RF22K9381SG/AA, RF22K9381SR/AA, RF22K9581SG/AA, RF22K9581SR/AA, RF22K9588SG/AA, RF22KREDBSG/AA, RF22KREDBSR/AA, RF23HCEDBBC/AA, RF23HCEDBSR/AA, RF23HSESBSR/AA, RF23J9011SG/AA, RF23J9011SR/AA, RF23J9018SR/AA, RF24FSEDBSR/AA, RF24J9960S4/AA, RF25HMEDBSG/AA, RF26J7500BC/AA, RF26J7500SR/AA, RF26J7500WW/AA, RF28HDEDBSR/AA, RF28HDEDPBC/AA, RF28HDEDPWW/AA, RF28HDEDTSR/AA, RF28HFEDBBC/AA, RF28HFEDBSR/AA, RF28HFEDBWW/AA, RF28HFEDTBC/AA, RF28HFEDTSR/AA, RF28HFEDTWW/AA, RF28HMEDBBC/AA, RF28HMEDBSR/AA, RF28HMEDBWW/AA, RF28HMELBSR/AA, RF28JBEDBSG/AA, RF28JBEDBSR/AA, RF28K9070SG/AA, RF28K9070SR/AA, RF28K9380SG/AA, RF28K9380SR/AA, RF28K9580SG/AA, RF28K9580SR/AA, RF30HBEDBSR/AA, RF30KMEDBSR/AA, RF263BEAEBC/AA, RF263BEAESG/AA, RF263TEAEBC/AA, RF263TEAESG/AA, RF263TEAESR/AA, RF263TEAEWW/AA, RF323TEDBSR/AA

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
