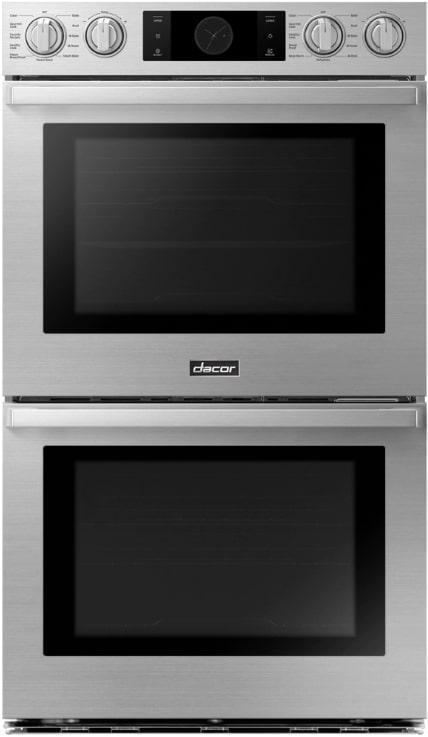

Dacor 30-Inch Transitional Double Wall Oven, Silver Stainless DOB30P977DS

Dacor 30-inch electric double wall oven in silver stainless, officially identified as model DOB30P977DS/DA.

Is This the Right Part?

Check Before Replacing

• With the oven cavity cool and doors closed, the installation manual documents a built-in self-diagnosis test: press UPPER and LOWER hidden keys simultaneously for 5 seconds, then select the install test.
• The documented self-diagnosis can report upper-broil, upper-bake, lower-broil, or lower-bake failures; a PASS result indicates no listed error was detected.

Pro Tip

Part Details

Key Features

• Silver Stainless finish
• 30-inch double wall oven configuration

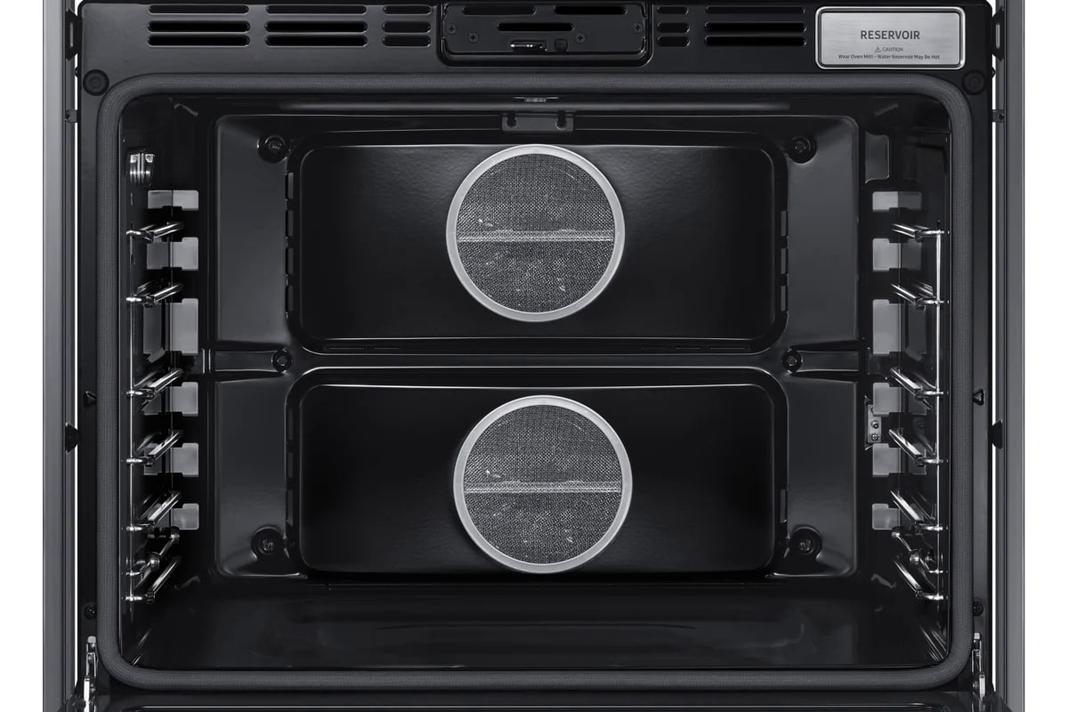

• Four-Part Pure Convection in both ovens

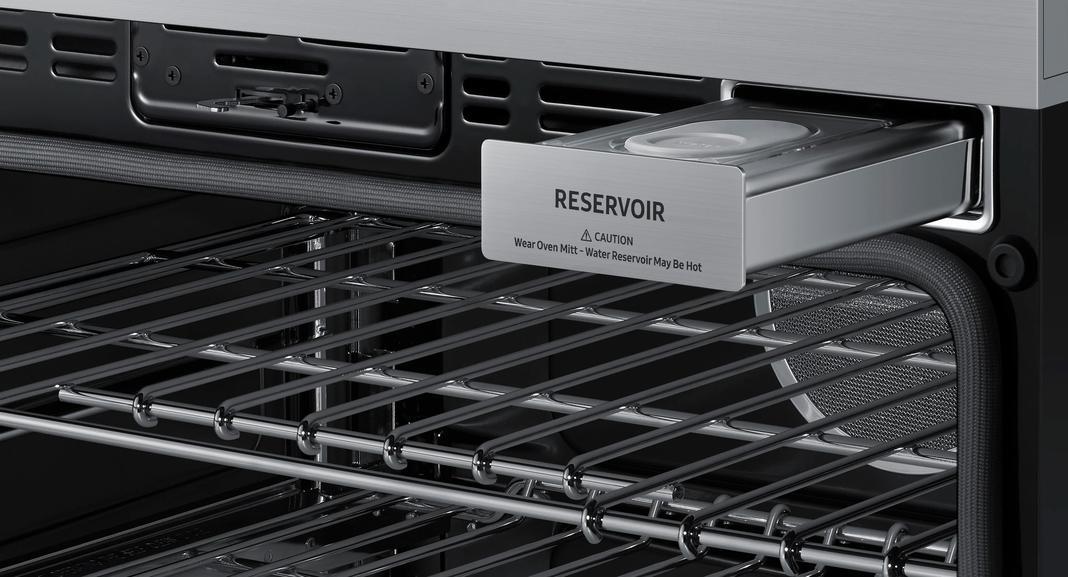

• Steam-assist cooking in the lower oven
• 7-inch motorized LCD touchscreen with knobs
• SmartThings Wi-Fi connectivity and Chef Mode guided cooking support a digital temperature probe, self-clean/GreenClean cleaning, and SoftShut hinges

Installation Notes

• The manufacturer specifies 240/208 V, 60 Hz, 50 A electrical service.
• Disconnect electrical power before servicing or making electrical connections.
• The installation manual requires two or more people to handle and move the double oven and instructs that it be secured to the cabinet with the supplied mounting screws.
• Use the documented cabinet cutout requirements: standard 28 1/2 x 50 1/4 x 23 1/2 inches (W x H x D), or flush 30 1/4 x 51 7/8 x 24 7/8 inches.

Verified Compatible Models

DOB30P977DS/DA

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
