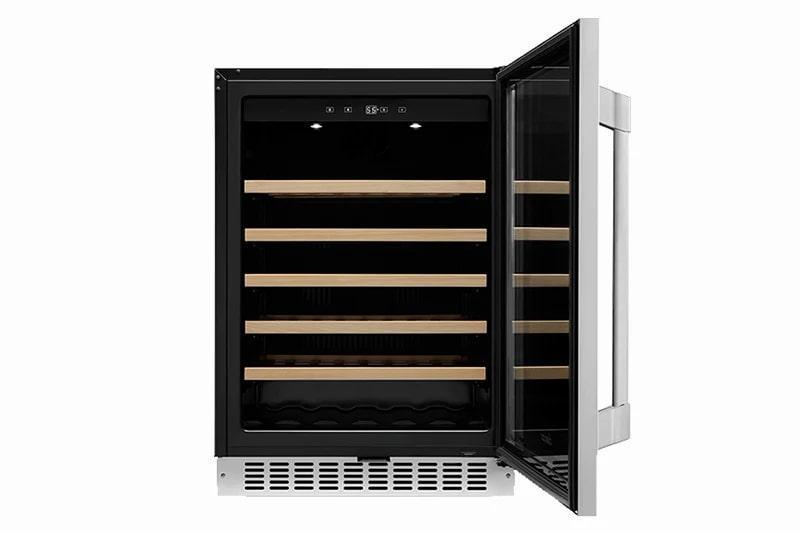

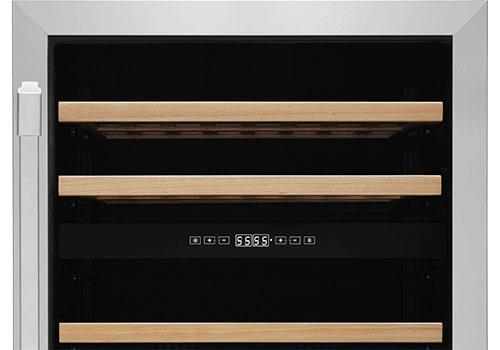

Dacor 24-Inch Undercounter Wine Cellar, Dual Zone, Right Hinge HWC242R
Dacor HWC242R is a silver-stainless, right-hinged 24-inch undercounter dual-zone wine cellar designed to store wine.
Part HWC242RDacor
Dacor HWC242R is a silver-stainless, right-hinged 24-inch undercounter dual-zone wine cellar designed to store wine.
Is This the Right Part?
Part NumberHWC242R
ManufacturerDacor
Appliance TypeWine cellar
Part Type24-Inch Undercounter Wine Cellar, Dual Zone, Right Hinge
Check Before Replacing
- If a door alarm sounds, verify that the door is fully closed; the documented door alarm activates after the door has been open for more than 60 seconds.
- If the temperature alarm sounds or the display flashes, check that the door is closed, the front vent is clear, and the unit has adequate airflow.
- Verify that each zone temperature setting is within the documented 41°F to 72°F range.
Pro Tip
For optimal performance, set the lower zone at least 8°F higher than the upper zone; the lower zone cannot be set colder than the upper zone.
Part Details
Part NumberHWC242R
Part Type24-Inch Undercounter Wine Cellar, Dual Zone, Right Hinge
ManufacturerDacor
Appliance TypeWine cellar
Primary FunctionStores wine in two independently controlled temperature zones.
Key Features
- Dual-zone wine storage.
- Right-hinged door.
- 45-bottle capacity listed in Dacor’s current specification sheet.
- Temperature range: 41°F to 72°F.
- Dual-pane, argon-filled UV-resistant glass door.

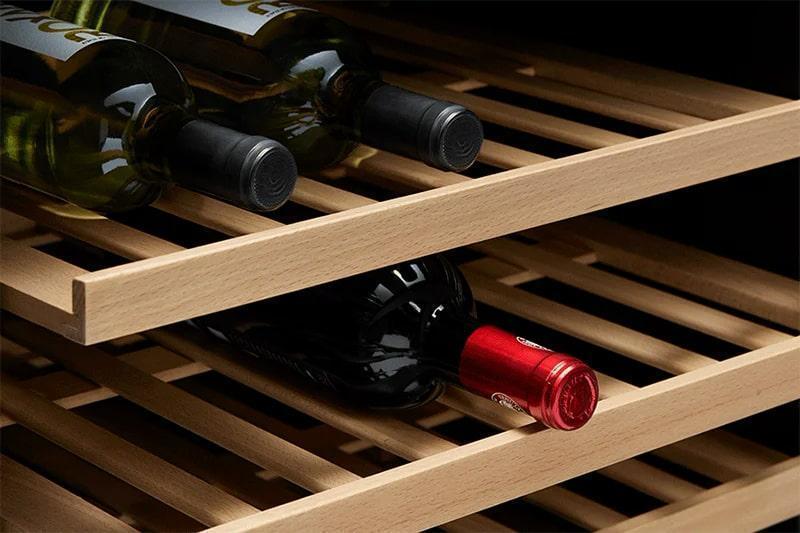

- Beechwood shelves; five full-width shelves listed in the current specification sheet. ക്ക്്്്്്്്്്്്់
Installation Notes
- Connect to a dedicated, grounded 115 Vac, 15 Amp circuit; do not use an extension cord or adapter plug.
- Do not install or use outdoors or in wet conditions.
- Maintain required ventilation clearance. The manual specifies a minimum enclosed-space clearance of 1/4 inch at each side and top, and 2 1/4 inches at the rear.
- Two people should unpack and set up the appliance.
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
