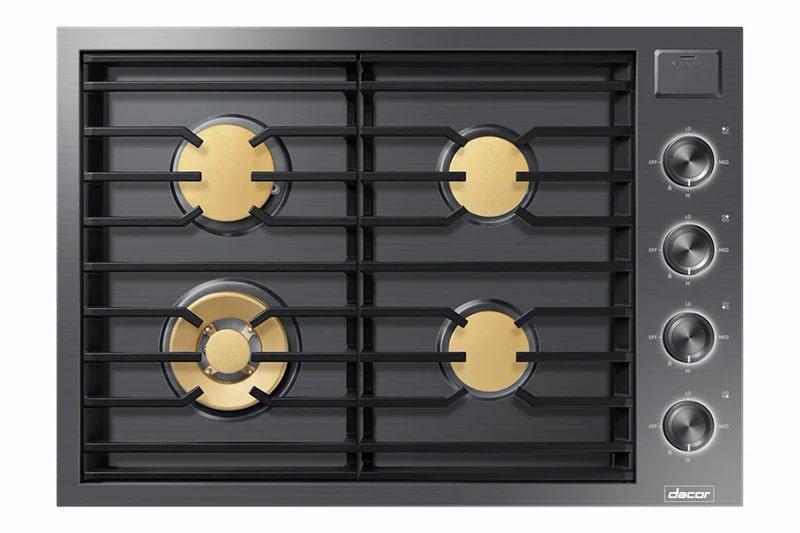

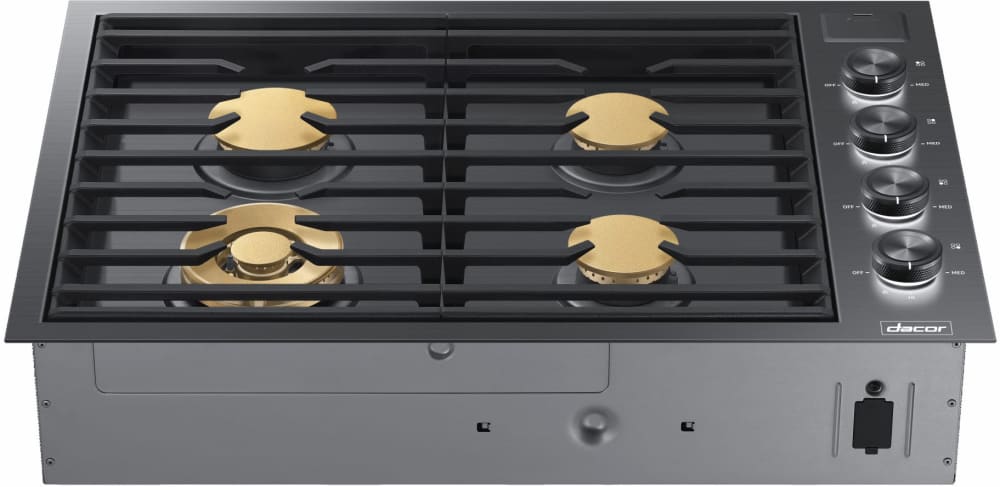

Dacor 30-Inch Gas Cooktop, Graphite Stainless Steel, Natural Gas / Liquid Propane DTG30M954FM

30-inch Dacor Contemporary gas cooktop with graphite stainless-steel finish, four sealed brass burners, electronic ignition, automatic re-ignition, Wi-Fi connectivity, and Bluetooth ventilation connection.

Is This the Right Part?

Common Symptoms

• Burner fails to ignite
• Burner flame goes out after ignition
• Uneven or reduced burner heating
• Ignition clicks without producing a flame

Check Before Replacing

• Confirm the cooktop has electrical power and that the gas supply is turned on.
• Check that burner caps and heads are correctly seated and clean before attempting ignition.
• Observe whether the ignition electrode sparks when a burner knob is turned.
• If a burner ignites but goes out, verify that the burner cap and head are properly positioned and that the flame reaches the electrode.

Pro Tip

Part Details

Key Features

• 30-inch width
• Graphite stainless-steel finish

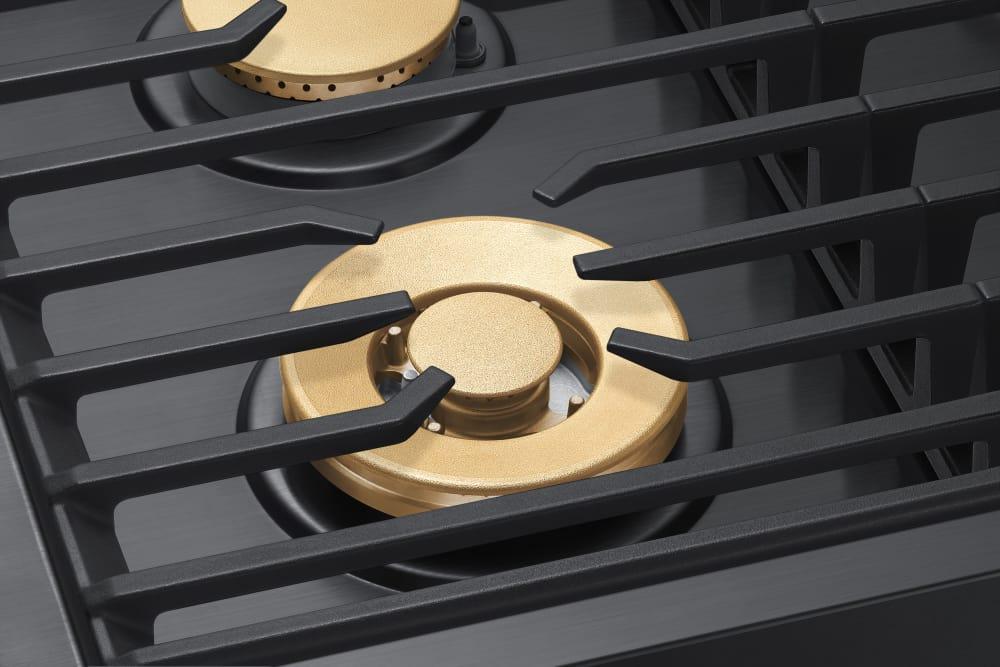

• Four sealed brass burners
• 18,500 BTU left-front dual burner
• 13,000 BTU left-rear rapid burner
• 9,500 BTU right-front burner-rated output per specification sheet and 9,500 BTU right-rear burner-rated output per product documentation/high-level specification listing

Installation Notes

• Use only with the specified natural-gas or liquid-propane configuration and the supplied or approved conversion components.
• Electrical requirement is 120 V, 60 Hz; verify the installation guide for the applicable circuit requirement before installation.
• Confirm required countertop cutout dimensions before replacement or installation.
• Gas and electrical connections should be handled according to the official Dacor installation instructions and applicable local codes.

Verified Compatible Models

DTG30M954FM/DA

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
