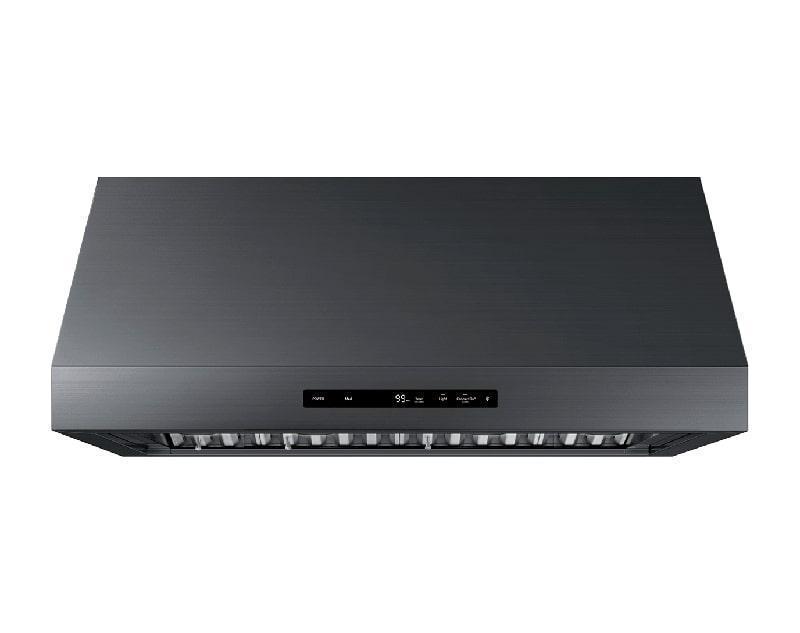

Dacor 36-inch Modernist wall-mount range hood DHD36M987WM

Dacor 36-inch ducted wall-mount range hood with a 600 CFM internal blower, four fan speeds, baffle filters, LED lighting, heat sensing, and Wi-Fi/Bluetooth connectivity.

Is This the Right Part?

Common Symptoms

• Fan does not operate or does not change speeds
• Hood lights do not operate

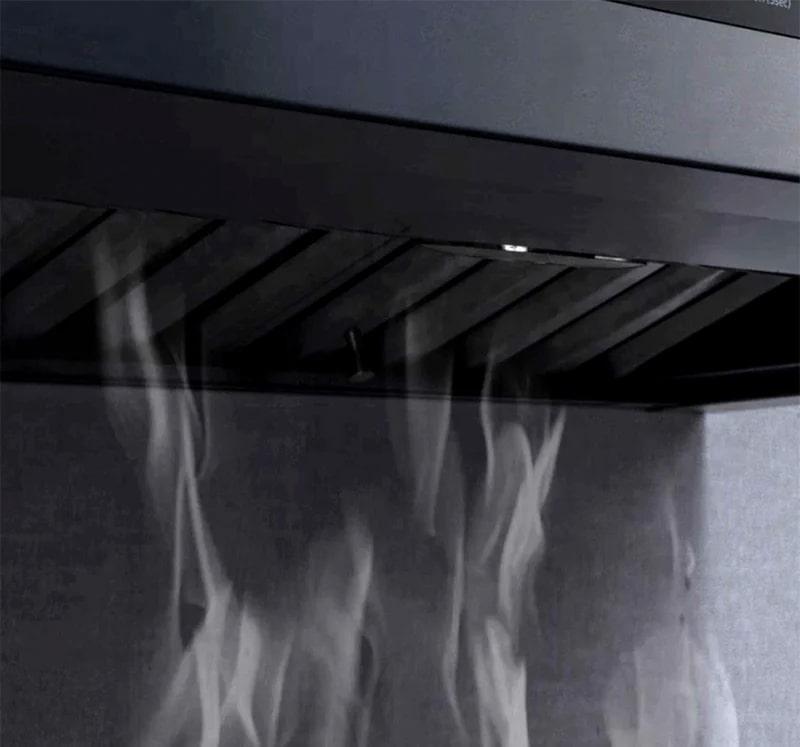

• Smoke and cooking odors are not being removed effectively
• Auto-on function does not activate when high heat is detected

Check Before Replacing

• Verify that the hood has electrical power and that its main power switch is on.

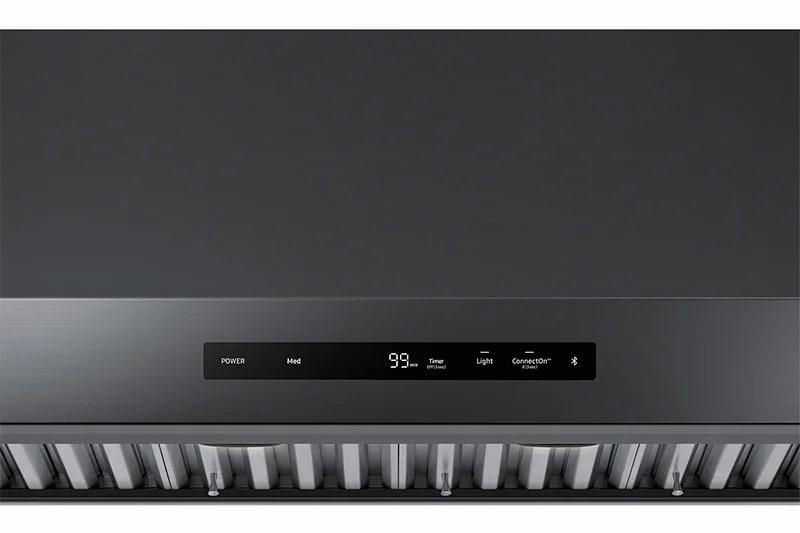

• Test the fan at Low, Medium, High, and Boost settings.

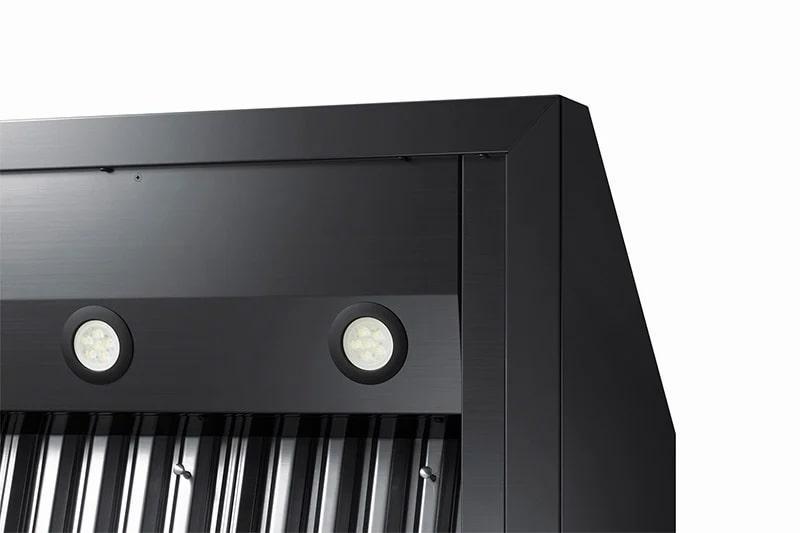

• Test the LED lighting at its available intensity settings.
• Confirm that the baffle filters and grease channel are installed and free of excessive grease or blockage.
• If Auto-On is being evaluated, confirm that the hood is exposed to normal cooking heat and that the feature is enabled.

Pro Tip

Part Details

Key Features

• 36-inch nominal width; 35 7/8-inch listed width
• 18-inch height
• 24-inch depth
• 600 CFM blower capacity
• Four fan speeds, including Boost
• 8-inch duct size/connectivity requirement listed by retailer documentation and installation literature references existing external ducting connections

Installation Notes

• This is a wall-mount, ducted hood—not an under-cabinet vent.
• Installation should be performed by qualified personnel.
• The hood must be properly grounded and connected to a dedicated 120 Vac, 60 Hz, 15-amp circuit according to applicable codes.
• Turn off power at the service panel before servicing or cleaning.
• Maintain at least 30 inches between the cooking surface and the lowest part of the hood unless the installation instructions for the specific installation require otherwise.
