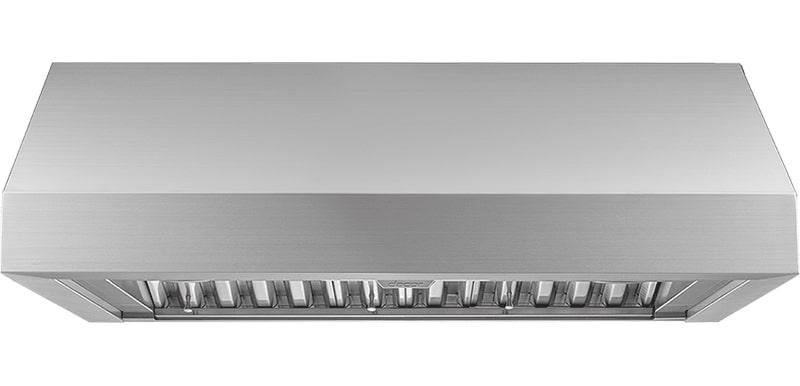

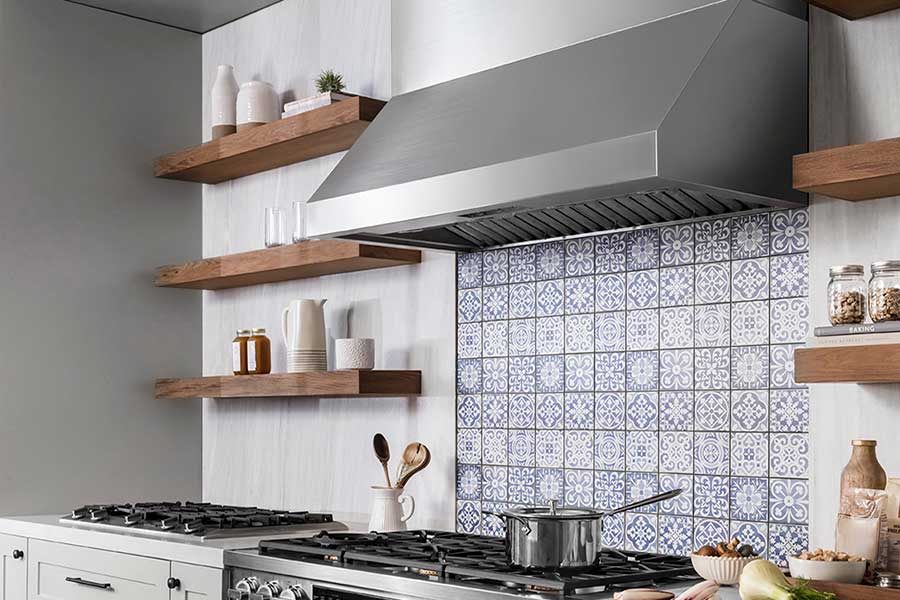

Dacor Wall-mount range hood 36-inch Pro Wall Hood, 12-inch High, Silver Stainless Steel HWHP3612S

Dacor Heritage 36-inch wall-mount Pro range hood with a 12-inch-high stainless-steel canopy and included 600 CFM internal blower.

Is This the Right Part?

Common Symptoms

• Reduced capture of smoke or odors when the baffle filters are blocked or the duct/damper airflow is obstructed.

Check Before Replacing

• Inspect the removable baffle filters for grease buildup or blockage.
• With power off, verify the hood damper flaps can open freely and inspect the duct path for obstructions.
• Confirm the hood is vented outdoors rather than into a wall, ceiling, attic, crawlspace, or garage.

Pro Tip

Part Details

Key Features

• 36-inch wall-mount Pro hood
• 12-inch height; 35 7/8-inch width; 24-inch depth
• Included 600 CFM single internal blower
• Four fan speeds

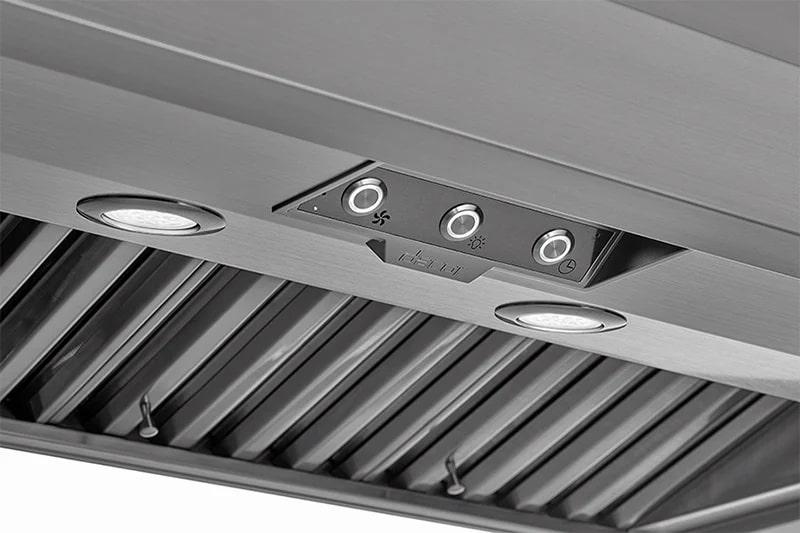

• Three dimmable LED lights
• Removable, dishwasher-safe baffle filters (three on the 36-inch model) with clean-filter reminder functionality documented for this model line and product listing materials; this exact model's specification sheet confirms removable baffle filters and LED lighting, while product listing identifies dishwasher-safe filters and clean-filter indicator features. To avoid unsupported bundling, excluded from list?

Installation Notes

• Wall-mount installation; the manufacturer installation instructions cover HWHP30/36/48 models.
• Use 8-inch ducting for the 36-inch single-blower model; ducted fans must vent outdoors.
• The blower is rotatable for top or rear exhaust.
• Hardwire to a grounded 120 Vac, 60 Hz dedicated circuit in accordance with applicable codes; electrical installation should be performed by a qualified/licensed electrician.
• Before servicing or cleaning, switch power off at the service panel and prevent accidental re-energization.
• The hood must be at least as wide as the cooktop; the instructions state it is approved for use with all Dacor ranges and cooktops.
