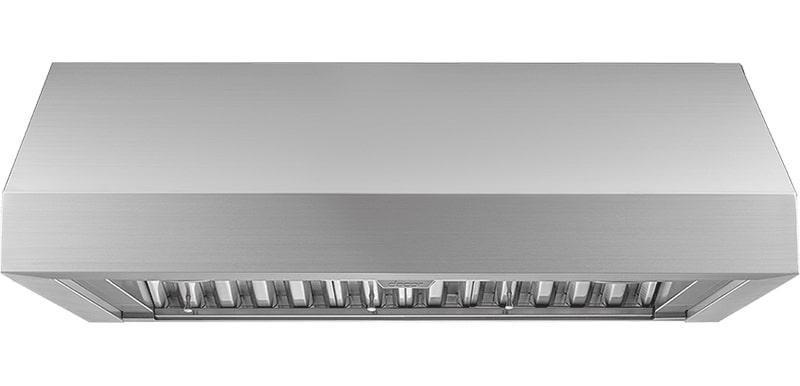

Dacor Range Hood Heritage Pro 36-inch Professional Wall Hood, 18-inch High, Stainless Steel HWHP3618S

Dacor 36-inch stainless-steel professional wall-mounted range hood with an internal blower, baffle filters, lighting, and four fan speeds.

Is This the Right Part?

Common Symptoms

• Reduced capture of cooking heat and smoke when filters are dirty or airflow is obstructed.
• Fan shuts off after 10 minutes when the timed feature is enabled.
• Fan starts automatically when hood temperature exceeds 140°F (60°C).

Check Before Replacing

• Confirm the fan speed is set appropriately for the cooking load.
• Inspect and clean the baffle filters; the manual identifies dirty or clogged filters as a cause of poor smoke and heat capture.
• Check for nearby drafts or HVAC airflow interference that can reduce capture performance.
• If the control panel is unlit and neither fan nor lights operate, check the hood main power switch and household breaker/fuse.

Pro Tip

Part Details

Key Features

• 35 7/8-inch width, 24-inch depth, and 18-inch height.
• 600 CFM internal blower.
• Four fan speeds.
• Stainless-steel, dishwasher-safe baffle filters.
• Three filters and three lights for the 36-inch HWHP 3618 configuration.
• 120V, 60Hz, 9A maximum connected load.

Installation Notes

• This is a wall hood, not an under-cabinet hood.
• The hood uses an 8-inch-diameter exhaust duct; ducting to the exterior is not manufactured, warranted, or serviced by Dacor.
• Turn power off at the circuit breaker or fuse box before cleaning or replacing lights.
