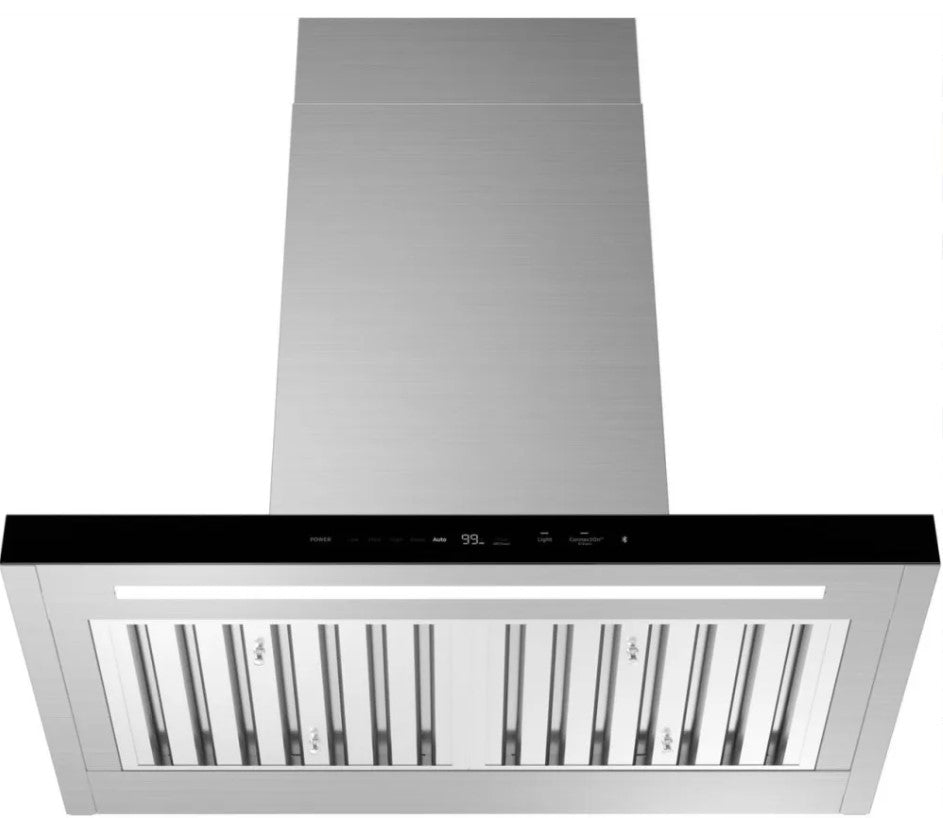

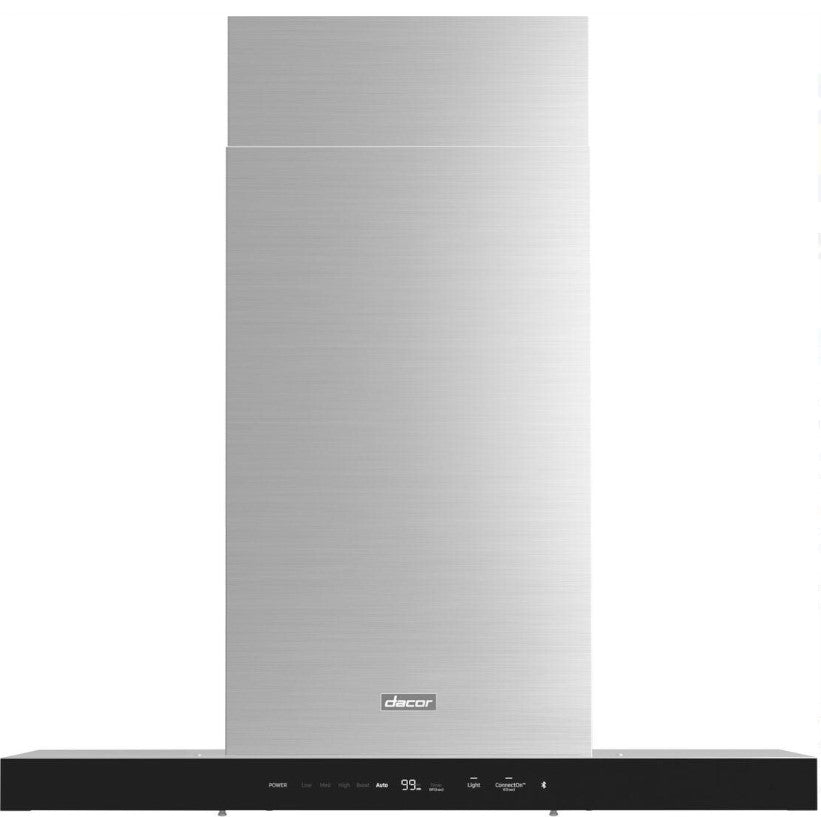

Dacor Range hood 36-Inch Chimney Wall Hood DHD36U990WS

Dacor 36-inch silver-stainless chimney wall hood with integrated ventilation, LED lighting, baffle filtration, and glass-touch controls.

Is This the Right Part?

Common Symptoms

• Reduced or absent ventilation when the fan is selected
• Excessive cooking smoke or odors remaining in the room
• Fan operation affected by grease buildup or a blocked/dirty filter

Check Before Replacing

• Verify that the hood has electrical power and that a fan speed can be selected.
• Check whether the baffle filter is excessively dirty or obstructed.
• Confirm that the duct path and exterior discharge are not visibly blocked.
• Check whether the automatic heat-sensor activation operates when the cooking area becomes hot.

Pro Tip

Part Details

Key Features

• 36-inch width
• Silver stainless-steel finish
• 1,200 CFM maximum ventilation; 780 CFM convertible configuration
• Four fan speeds
• Glass-touch control panel
• Auto-on heat sensors/temperature sensor capability

Installation Notes

• Installation must comply with applicable local electrical and building codes.
• Disconnect power at the service panel before wiring or servicing.
• The installation guide recommends installation by a qualified technician.
• A 10-inch duct connection and ducted venting configuration are documented for this model family.
• Duct-cover modification may be required for some ceiling heights and should be performed by a professional installer.
