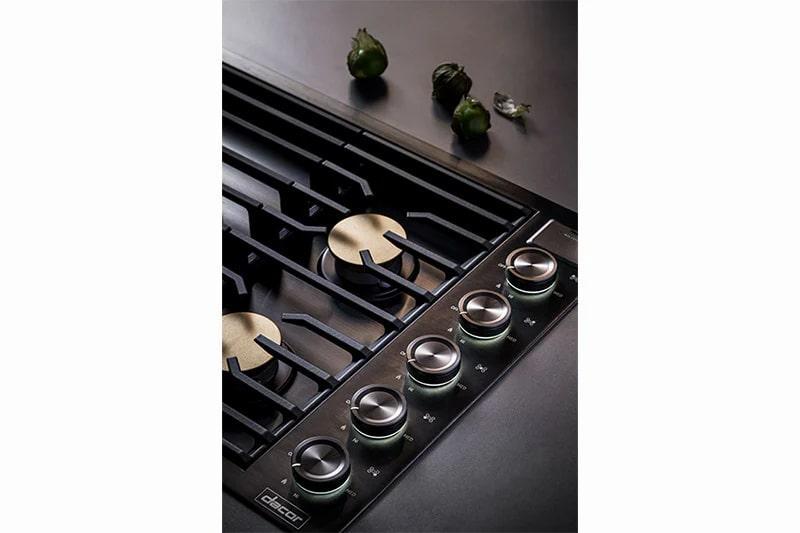

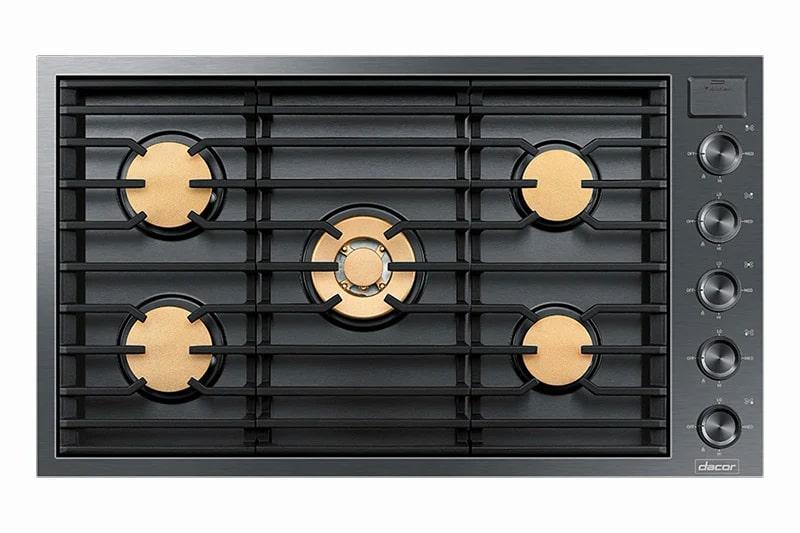

Dacor 36-Inch Gas Cooktop, Graphite Stainless Steel, Natural Gas DTG36M955FM

Dacor 36-inch contemporary gas cooktop with a graphite stainless-steel finish, five sealed brass burners, and natural-gas configuration.

Is This the Right Part?

Check Before Replacing

• Confirm the appliance identification label shows DTG36M955FM or DTG36M955FM/DA before ordering documentation or accessories.
• Verify the installation has a compatible natural-gas supply and 120 V, 60 Hz, 15 A electrical circuit.
• Check that the required countertop cutout is approximately 34 11/16 inches wide by 19 3/4 inches deep, using the installation instructions for final dimensions.

Pro Tip

Part Details

Key Features

• 36-inch overall width
• Graphite stainless-steel finish
• Natural-gas configuration

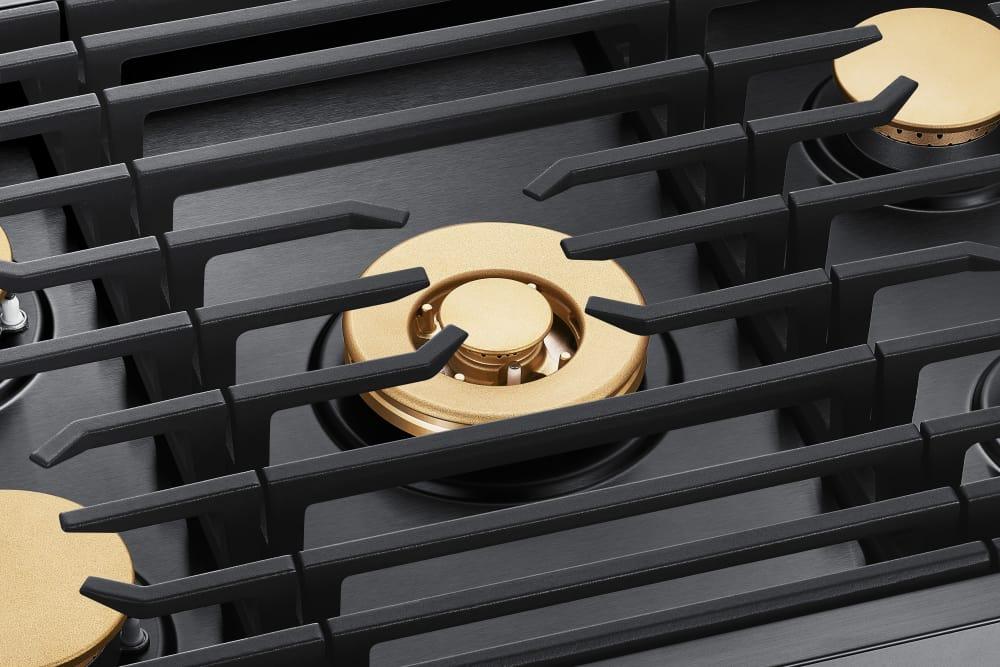

• Five sealed brass burners
• Dual-stacked burners
• Center dual burner rated at 18,500 BTU/hr according to the specification sheet listing; left burners 13,000 BTU/hr each and right burners 9,500 BTU/hr each

Installation Notes

• Designed for low-profile flush installation.
• Required electrical supply is 120 V, 60 Hz, 15 A.
• An LP conversion kit is documented as included or supported, but conversion should follow the manufacturer installation instructions and applicable code requirements.
• Use the manufacturer installation instructions for required clearances, gas connection, and final cutout verification.

Verified Compatible Models

DTG36M955FM/DA

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
