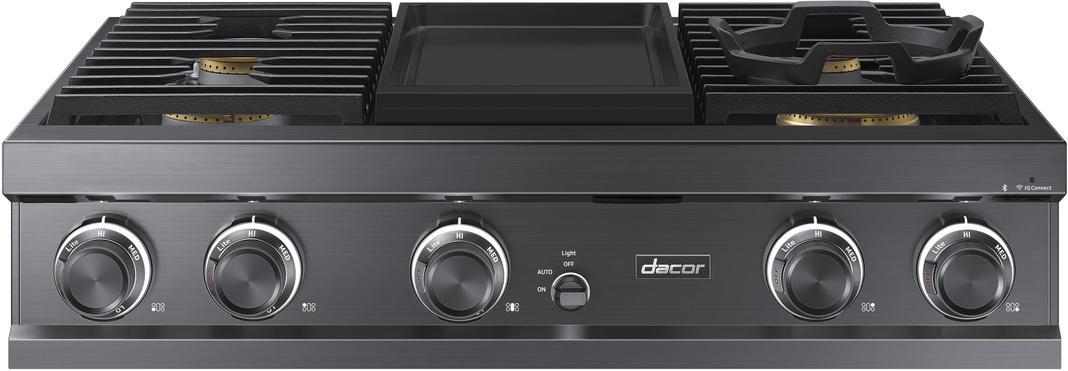

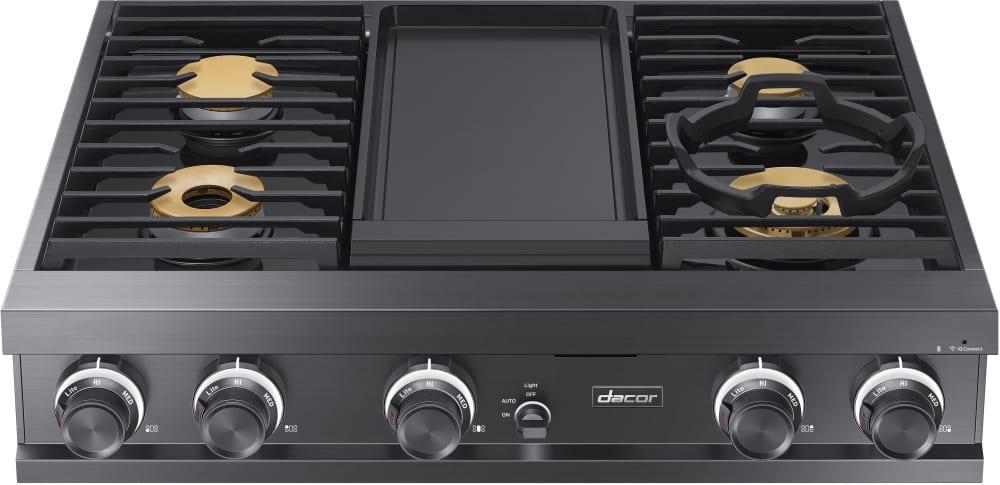

Dacor 36-Inch Gas Rangetop with Embedded Electric Griddle DTT36M974LS

Dacor Modernist 36-inch stainless-steel natural-gas rangetop with four sealed brass burners and an integrated electric griddle.

Is This the Right Part?

Common Symptoms

• Burner fails to ignite
• Burner flame goes out unexpectedly
• Uneven or weak burner flame
• Integrated griddle does not heat

Check Before Replacing

• Confirm the gas supply is turned on and the appliance is configured for the installed gas type.
• Check that burner heads and caps are correctly seated and free of visible blockage.
• Observe whether the ignition system produces a spark when a burner control is turned on.
• For griddle heating issues, verify that the control is set correctly and that the appliance has its required electrical supply.

Pro Tip

Part Details

Key Features

• 36-inch nominal width
• Stainless-steel finish
• Natural-gas configuration

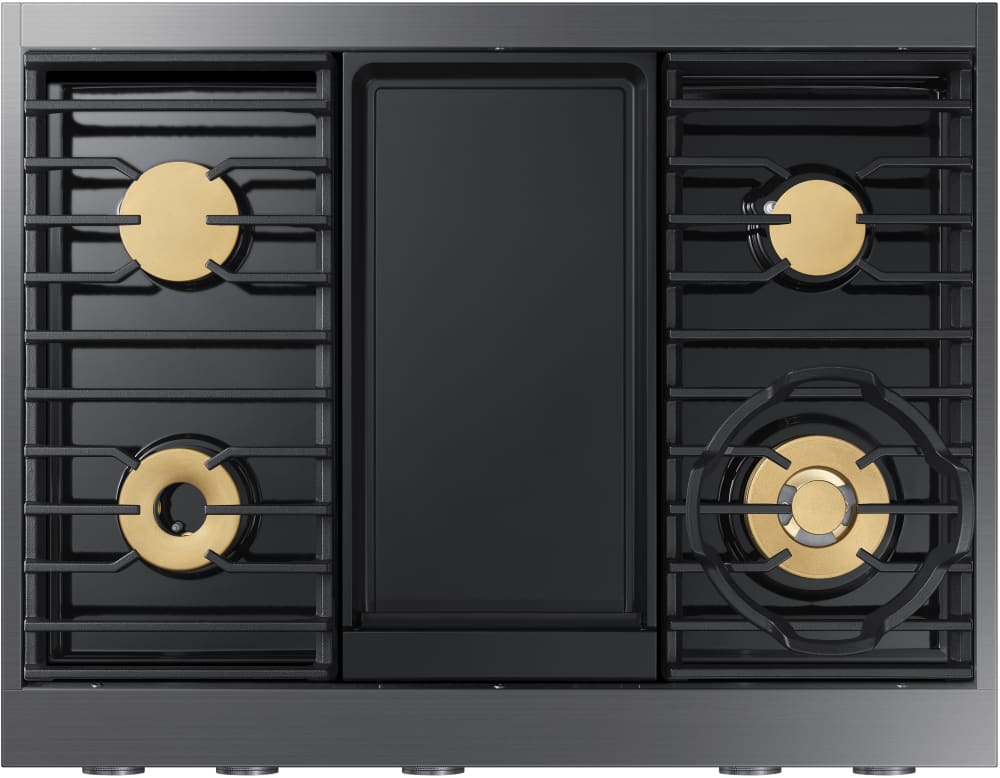

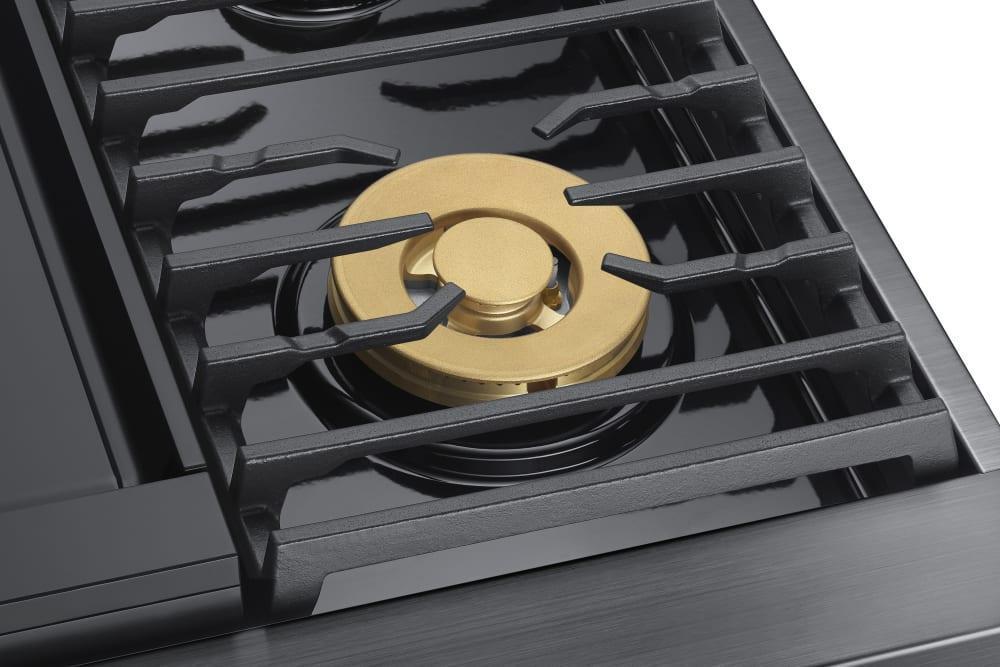

• Four sealed brass dual-stack burners
• Burner outputs of 22,000, 18,000, 16,000, and 9,000 BTU
• 1,400-watt electric griddle included36-inch nominal width; stainless-steel finish; natural-gas configuration; four sealed brass dual-stack burners; burner outputs of 22,000, 18,000, 16,000, and 9,000 BTU; 1,400-watt electric griddle; continuous grates; LED knob backlighting; LED ambient lighting; burner re-ignition; Wi-Fi and Bluetooth connectivity; 120 V, 60 Hz, 15 A electrical requirement; approximately 8 x 36 x 24 inches overall dimensions

Installation Notes

• Installation requires connection to both gas and electrical supplies.
• The appliance must be installed and adjusted for the applicable natural-gas or LP configuration by a qualified installer or service technician.
• Follow local codes and the manufacturer’s installation instructions.
• Disconnect electrical power and shut off the gas supply before service or removal.
