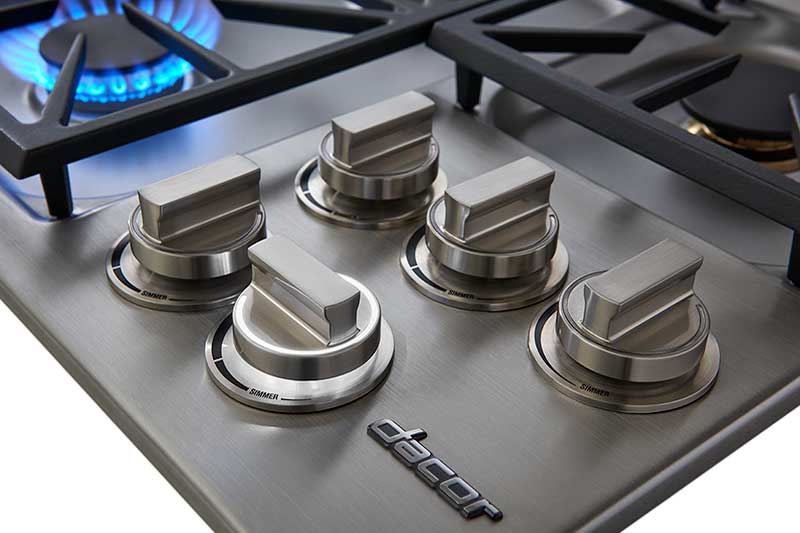

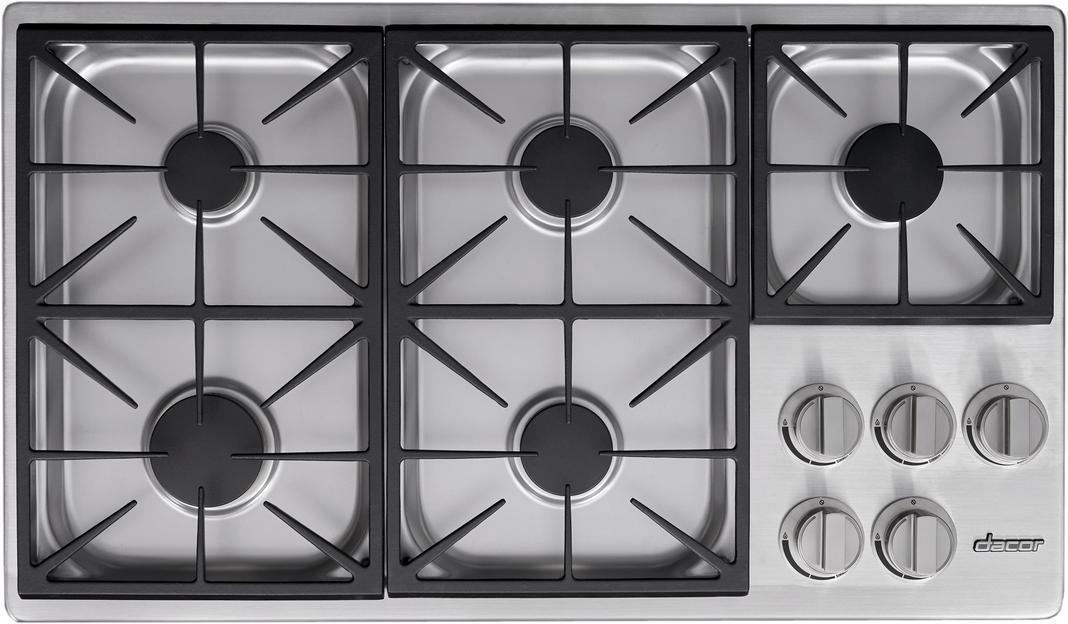

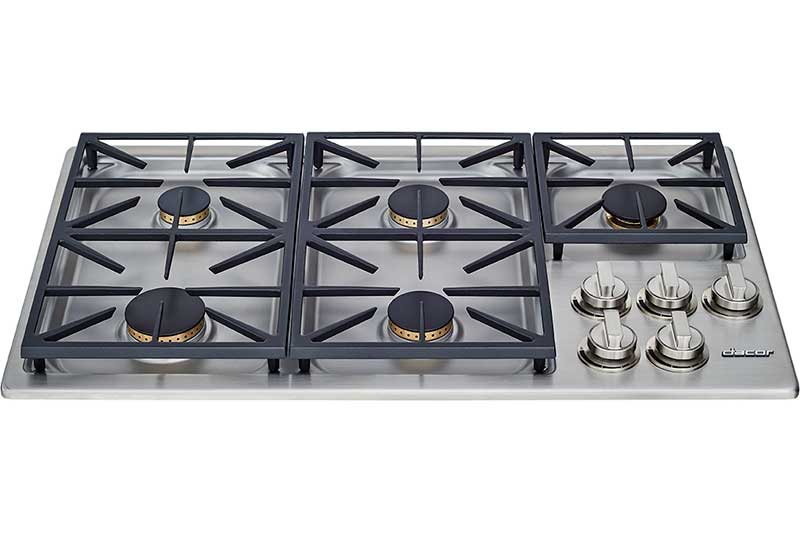

Dacor 36-inch Heritage Pro Gas Cooktop, liquid propane, stainless steel HDCT365GS/LP

Dacor 36-inch stainless-steel built-in gas cooktop configured for liquid propane, with five sealed burners.

Is This the Right Part?

Check Before Replacing

• Confirm the product data label on the underside of the chassis identifies an LP configuration; the installation instructions state that LP-configured units have “LP” at the end of the model number.
• Before installation or service, verify the gas supply is shut off and electrical power is disconnected.

Pro Tip

Part Details

Key Features

• 36-inch-wide stainless-steel gas cooktop
• Liquid-propane configuration
• Five sealed burners totaling 57,500 BTU
• 18,000-BTU, two 12,500-BTU, 9,500-BTU, and 5,000-BTU burner configuration
• Continuous porcelain-coated platform grates

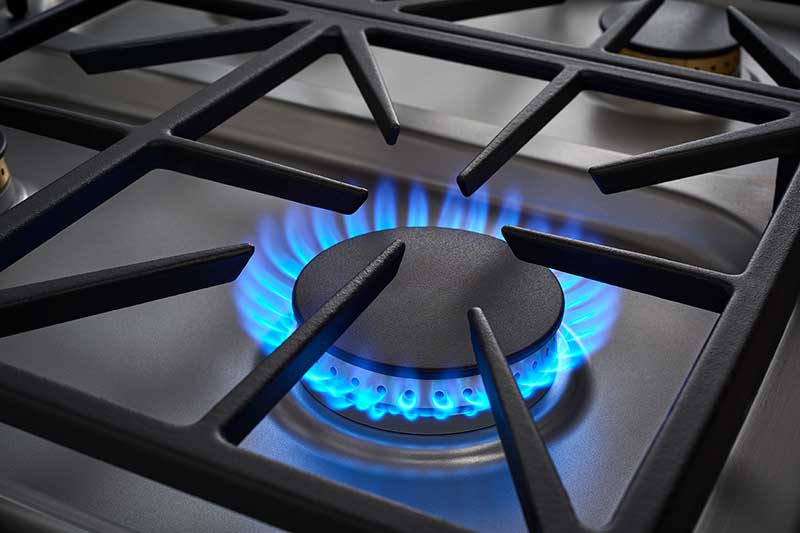

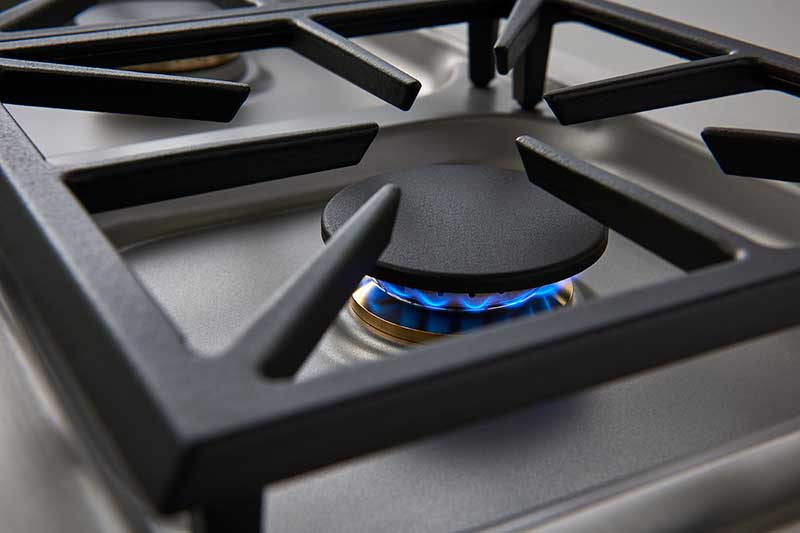

• SimmerSear burners with up to 18,000 BTU and ultra-low simmer capability for melting/simmering tasks without scorching, as documented in the specification sheet and retailer listing data

Installation Notes

• Installation instructions cover the HDCT365 LP configuration; installation and grounding must be performed by a qualified installer.
• Use the supplied gas regulator; do not install or operate the cooktop without it.
• The manual specifies a dedicated grounded 120 VAC, 60 Hz, 15 A three-prong outlet.
• The approved Dacor downdraft model listed for HDCT365 is MRV3615S.
• Do not permanently secure the cooktop with hardening compound or caulk; it must remain removable for service.
