Dacor Ventilation hood 48-inch Wall Hood, Stainless Steel DHD48M987WS, Fixes Blank

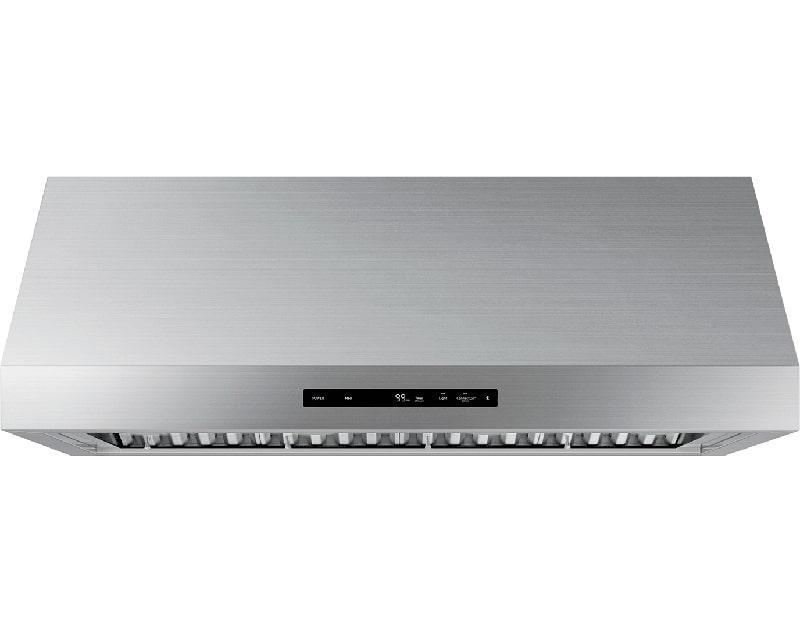

Dacor Modernist 48-inch stainless-steel wall-mounted range hood with a 1,200 CFM blower.
Part DHD48M987WSDacor
Dacor Modernist 48-inch stainless-steel wall-mounted range hood with a 1,200 CFM blower.
Is This the Right Part?
Part NumberDHD48M987WS
ManufacturerDacor
Appliance TypeVentilation hood
Part Type48-inch Wall Hood, Stainless Steel
Check Before Replacing
- Confirm the appliance nameplate shows model DHD48M987WS before ordering parts or service documentation.
- Verify that the hood has power and that the touch controls respond; these checks do not establish a component-level diagnosis.
- Check that the removable baffle filters are installed and clean when airflow is reduced.
Pro Tip
This is a complete wall hood model, not an individual replacement component; verify the model label before ordering service parts.
Part Details
Part NumberDHD48M987WS
Part Type48-inch Wall Hood, Stainless Steel
ManufacturerDacor
Appliance TypeVentilation hood
Primary FunctionExhausts cooking smoke, odors, grease, and heat through a wall-mounted hood ventilation system.
Key Features
- 1,200 CFM maximum airflow
- Four fan speeds: three steps plus booster

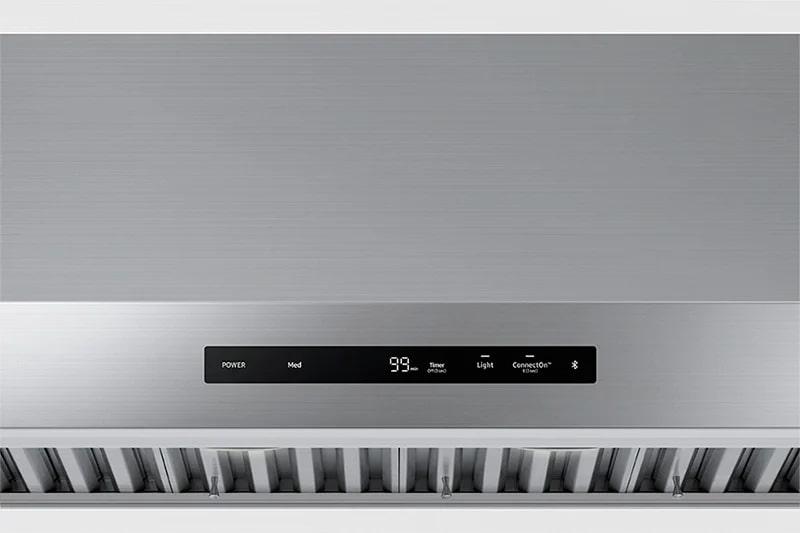

- Touch controls located at the front center
- Heat-sensor Auto On feature
- Wi-Fi Auto Connect and Bluetooth connectivity

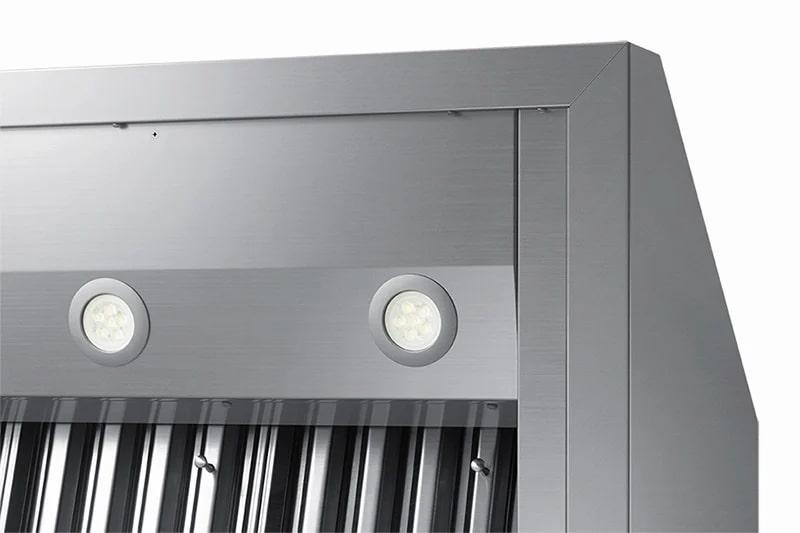

- Four LED lighting intensities and four LED bulbs listed in the specification sheet
Installation Notes
- Install as a wall hood, not as an under-cabinet hood; the specification sheet identifies the product as a 48-inch wall hood.
- Required electrical supply is documented as 120 V, 60 Hz, 15 A.
- Overall dimensions are approximately 18 inches high by 47 7/8 inches wide by 24 inches deep.
- Confirm ductwork, mounting location, and electrical installation against the manufacturer installation instructions.
