Dacor Range hood / ventilation hood 48-inch Professional Wall Range Hood, 18-inch Height, Stainless Steel HWHP4818S

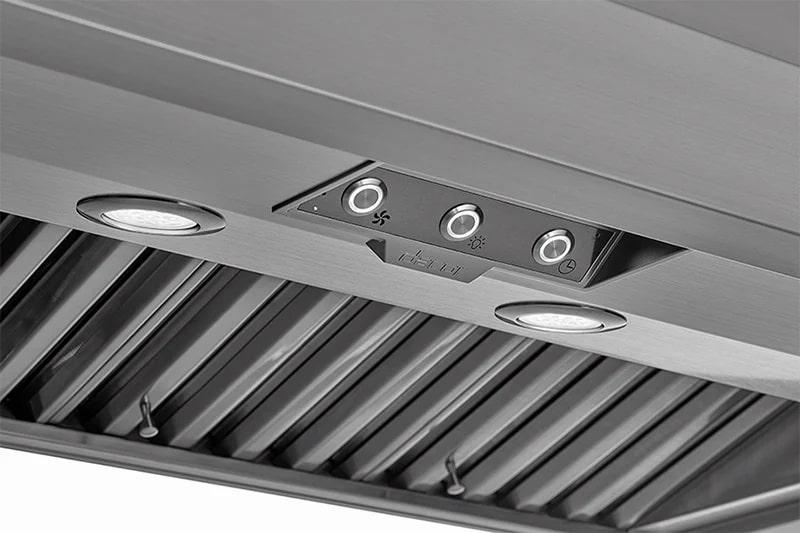

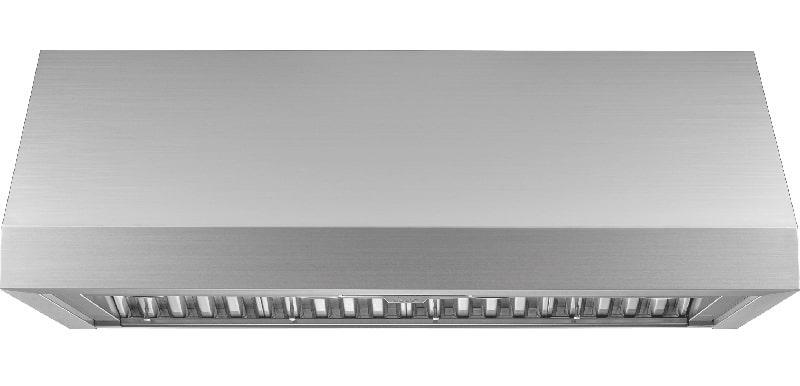

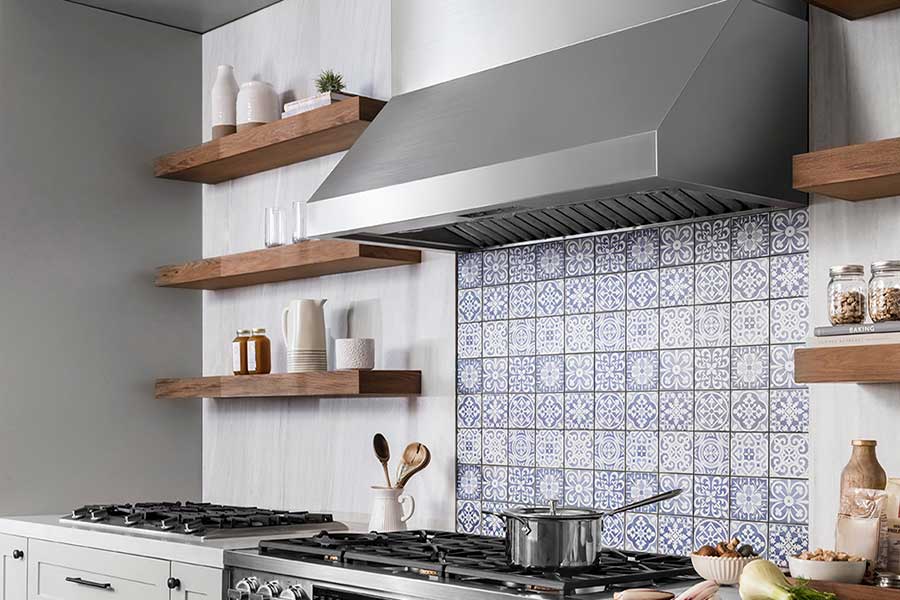

Dacor HWHP4818S is a 47 7/8-inch-wide, 18-inch-high professional wall-mounted range hood with stainless-steel baffle filters and dual internal blowers.

Is This the Right Part?

Common Symptoms

• Blower does not operate or operates at reduced airflow
• Cooking smoke or odors remain in the kitchen
• Hood lights do not illuminate
• Fan-speed controls or timer do not respond
• Grease accumulation caused by ineffective or unmaintained filtration

Check Before Replacing

• Confirm the hood has electrical power and that the circuit breaker has not tripped.
• Test each of the four fan-speed settings and observe whether the internal blowers operate.
• Check whether the LED lamps illuminate when the light control is activated.
• Inspect the removable baffle filters for heavy grease buildup or obstruction.
• Verify that the duct path and exterior termination are not visibly blocked.

Pro Tip

Part Details

Key Features

• 47 7/8-inch width
• 18-inch height
• 24-inch depth
• 1200 CFM total capacity using two 600 CFM internal centrifugal blowers
• Four fan speeds
• Stainless-steel baffle filters שא?

Installation Notes

• This is a wall-mounted hood, not an under-cabinet hood.
• The product documentation identifies the hood as ducted and supporting horizontal and vertical exhaust configurations.
• Disconnect electrical power before servicing or installation.
• Use the appliance data plate and installation documentation to confirm electrical and ducting requirements for the specific installation.

Verified Compatible Models

HWHP4818S

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
