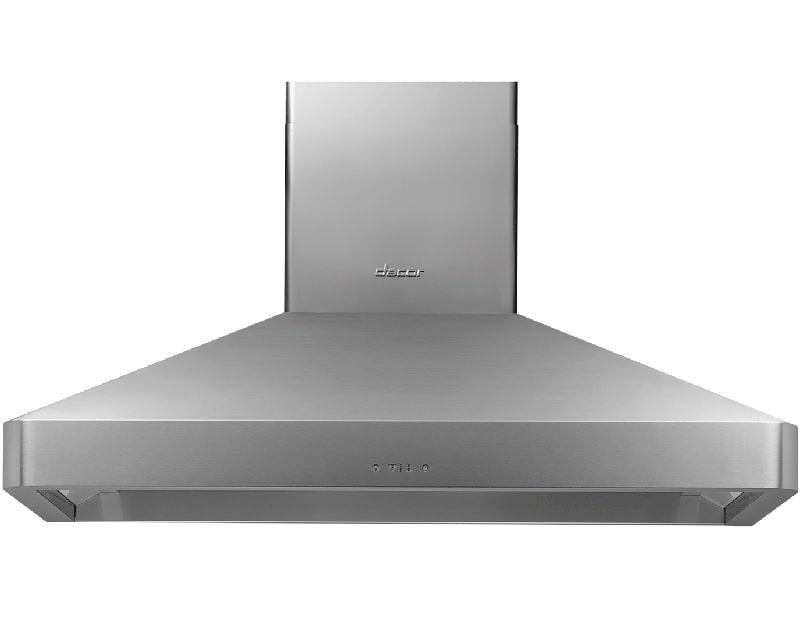

Dacor 48-Inch Wall-Mount Chimney Range Hood DHW482

Dacor Millennia 48-inch stainless-steel wall-mount chimney range hood with two internal blowers.

Is This the Right Part?

Common Symptoms

• Reduced or absent ventilation airflow
• Blower operation failure
• Range-hood lighting failure
• Excessive cooking smoke or heat remaining in the kitchen

Check Before Replacing

• Verify that the hood has power and that its dedicated circuit has not tripped.
• Confirm the main power switch behind the filter is on.
• Test the electronic fan controls at each available speed.
• Inspect and clean the dishwasher-safe baffle filters if airflow is reduced.
• Check that the duct path is not obstructed and that the external exhaust route is open.

Pro Tip

Part Details

Key Features

• 48-inch wall-mounted chimney hood
• Two 600-CFM blowers; 1,200 CFM combined at zero inches static pressure

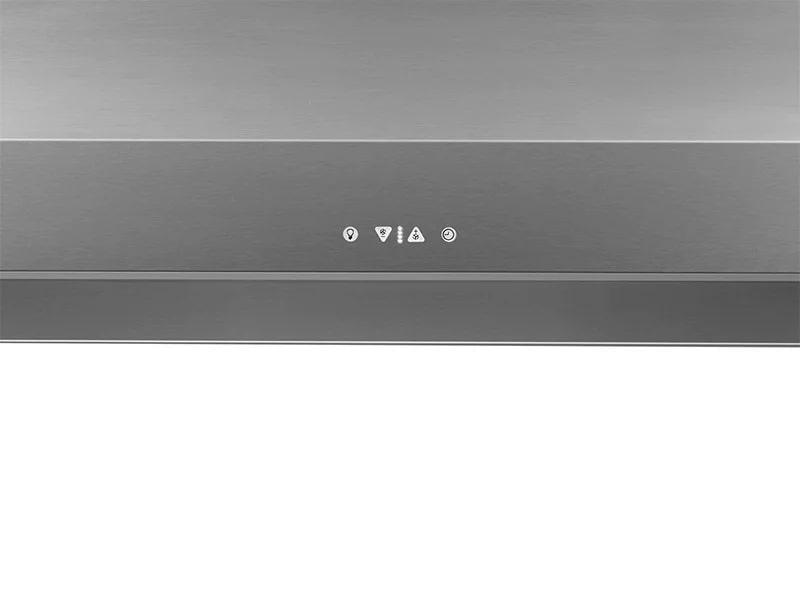

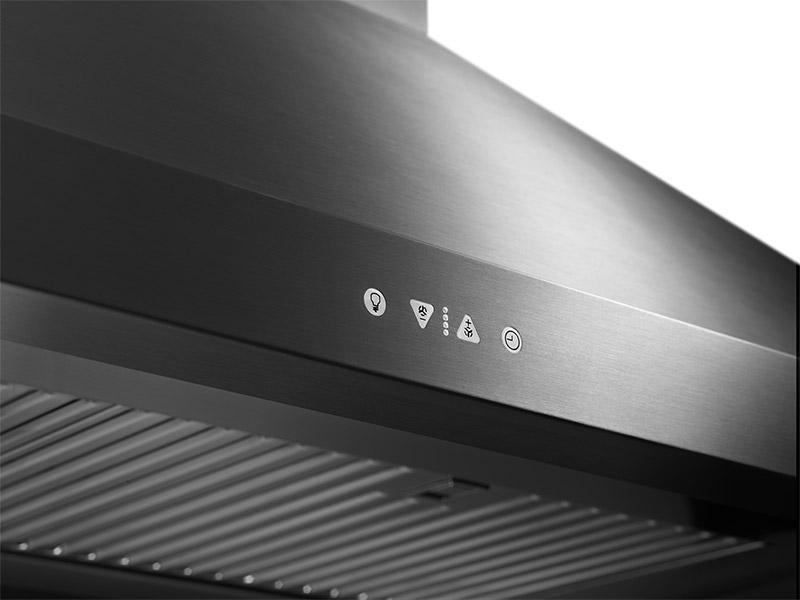

• Four-speed electronic fan control with timer and illuminated control panel

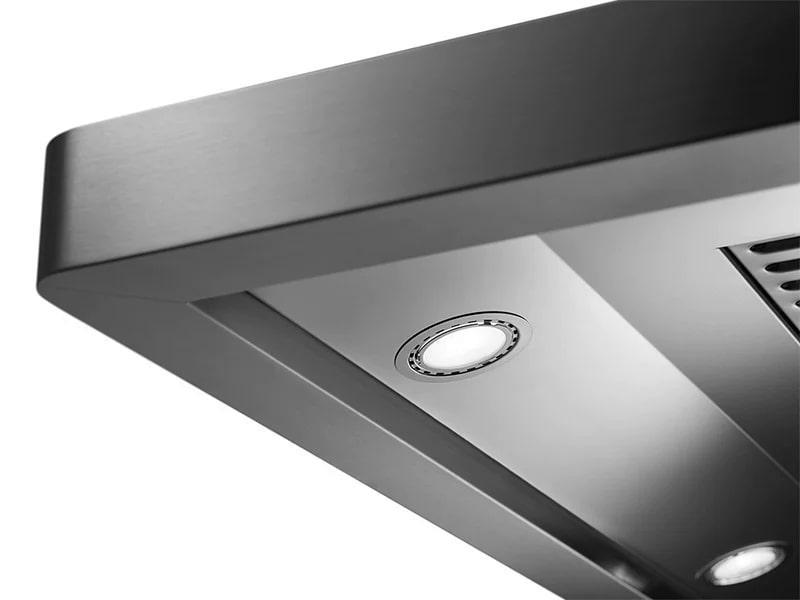

• Four 20-watt halogen lights

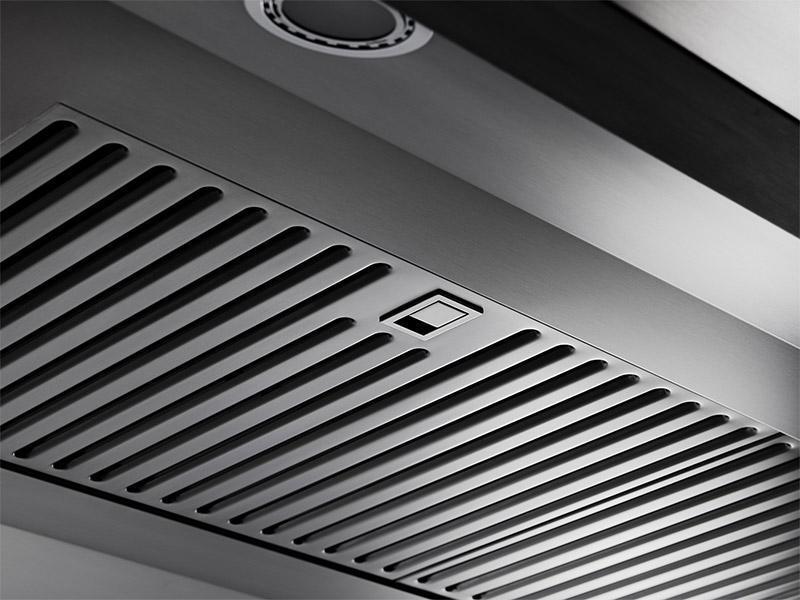

• Two dishwasher-safe baffle filters
• 8-inch round exhaust connection/collar capability noted in installation documentation

Installation Notes

• Install with a minimum 30-inch clearance between the hood and cooking surface; the range or cooktop manufacturer may require more.
• Use a dedicated grounded 120 VAC, 60 Hz, 15-amp circuit.
• Electrical service should be installed by a qualified/licensed electrician in accordance with applicable codes.
• The installation documentation identifies DHW482 as a double-blower model and specifies external ducting requirements.
• Do not add an additional in-line or external blower to increase duct-run length.

Verified Compatible Models

DHW482

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
