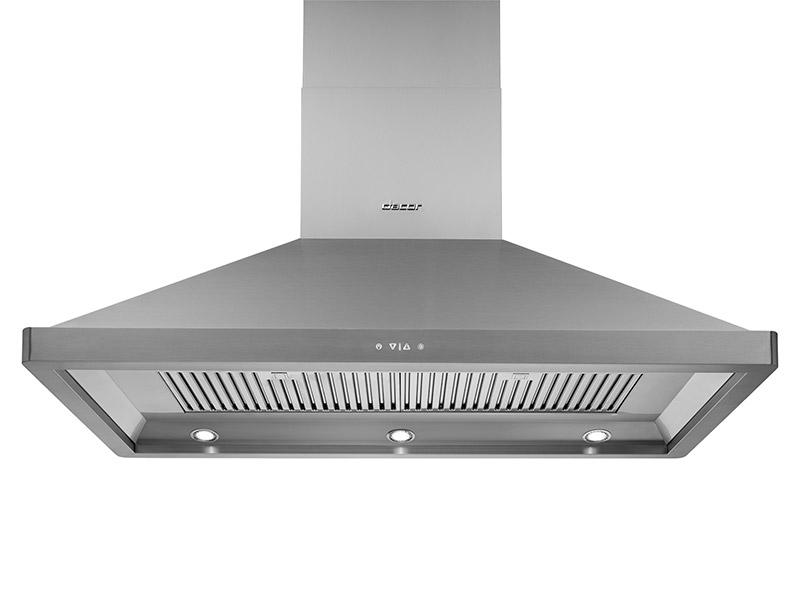

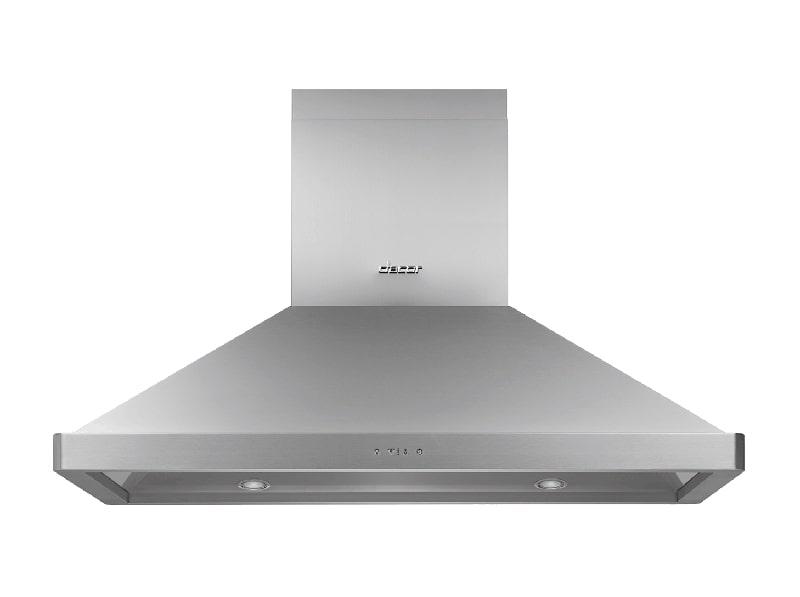

Dacor 42-inch ceiling-mount island range hood DHI421

Dacor DHI421 Heritage/Millennia ceiling-mount island range hood with a 600 CFM single blower, stainless-steel finish, four fan speeds, four halogen lights, and a dishwasher-safe baffle filter system.

Is This the Right Part?

Common Symptoms

• Blower system does not work while the control panel is lit.
• Control panel is not lit and the hood appears inoperative.
• Blower system shuts off after four hours of continuous operation; this is documented as normal automatic shutoff behavior.
• Reduced ventilation can occur if filters are blocked or grease-laden.

Check Before Replacing

• Verify that the main power switch behind the filter is switched on and that the control panel is lit.
• If the blower does not operate with the control panel lit, the manual directs the owner to call for service rather than identifying a user-serviceable diagnosis.
• Inspect the filter system for blockage or heavy grease buildup; do not operate the hood without the filter(s) installed.
• Confirm whether an apparent automatic shutdown occurred after four hours of continuous blower operation.

Pro Tip

Part Details

Key Features

• 42-inch hood width
• 600 CFM single blower
• Four blower speeds

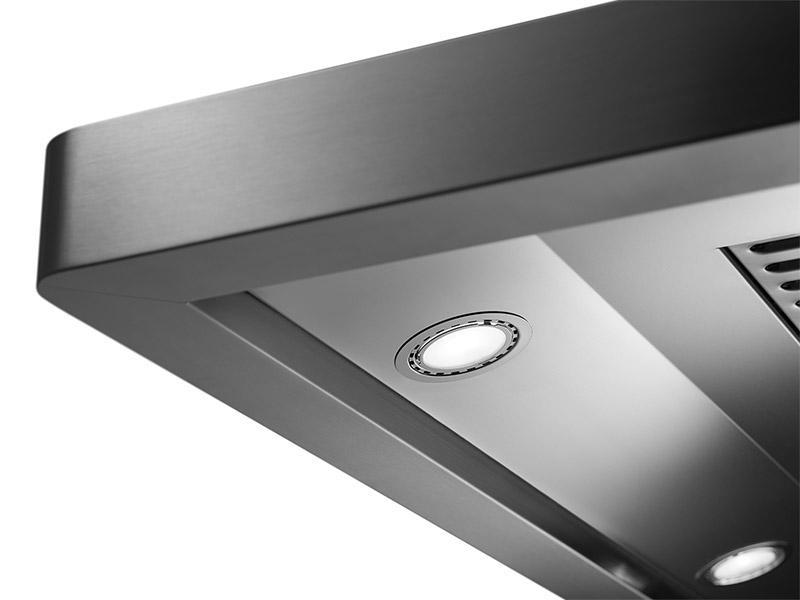

• Four 20-watt halogen lights
• 8-inch round exhaust; product documentation states it can accommodate up to a 10-inch duct
• Four-hour automatic blower shutoff setting4-hour automatic blower shutoff setting without the need for a repair diagnosis

Installation Notes

• Dacor documentation identifies DHI421 as a ceiling-mount island range hood.
• Dacor chimney part number DHICH is required.
• Use a qualified installer/electrician and follow applicable electrical codes.
• The installation manual specifies a dedicated, grounded 120 VAC, 15-amp, three-wire circuit.
• The minimum vertical distance from the cooking surface is 30 inches, subject to the range or cooktop manufacturer's requirements.
