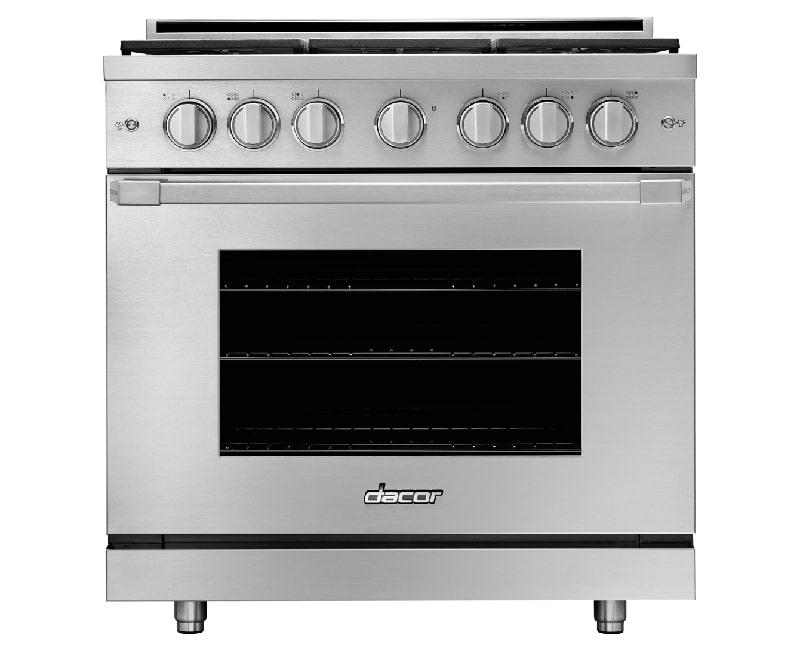

Dacor 36-inch Professional Gas Range — Liquid Propane HGPR36S/LP

Dacor 36-inch professional-style gas range configured for liquid propane, with a 5.2 cu. ft. self-cleaning convection oven and six sealed dual-stack brass burners.

Is This the Right Part?

Check Before Replacing

• Confirm the appliance rating label identifies model HGPR36S/LP before ordering model-specific parts or service documentation.
• Verify that the home gas service is liquid propane and that the range is configured for LP operation.
• For installation or gas-supply concerns, verify the LP manifold and minimum supply-pressure requirements against the installation instructions.

Pro Tip

Part Details

Key Features

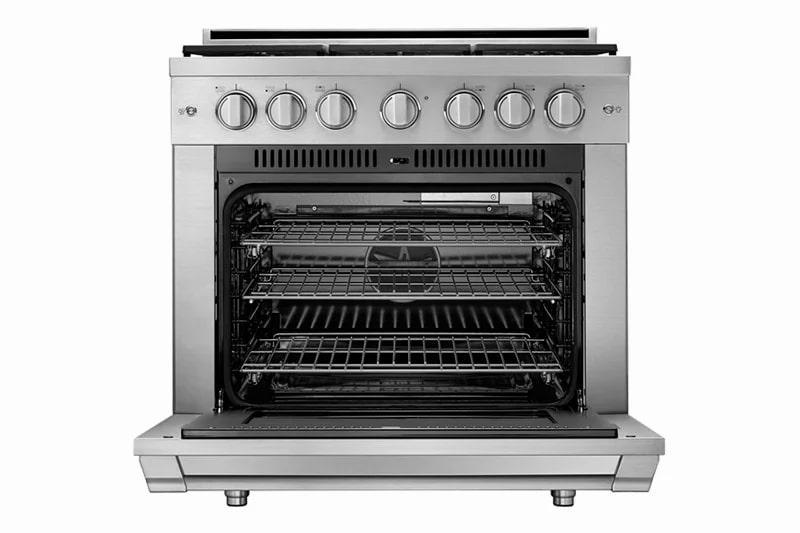

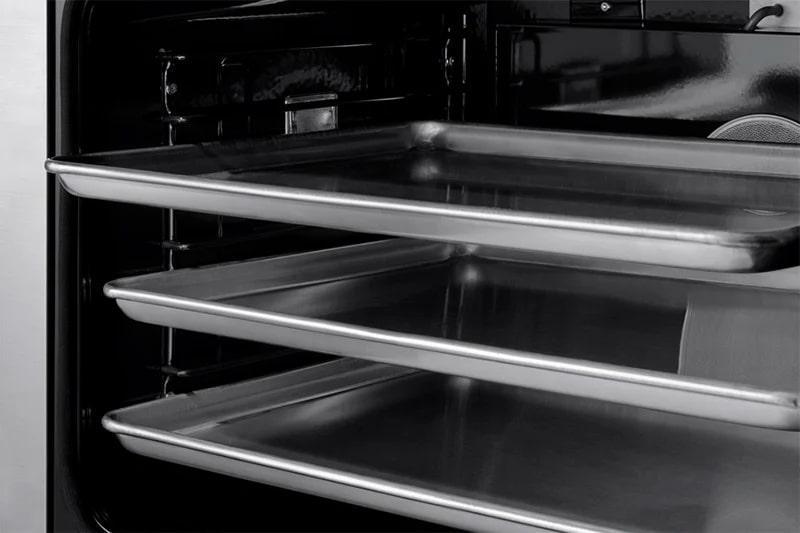

• 5.2 cu. ft. oven capacity

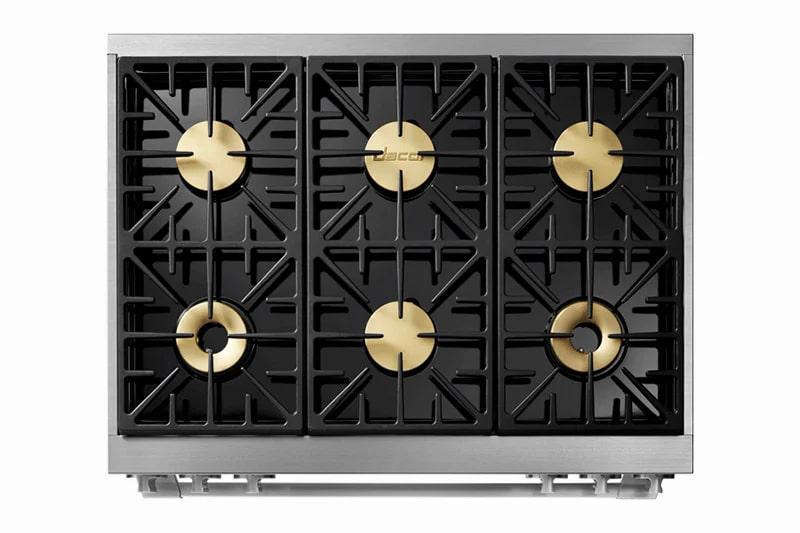

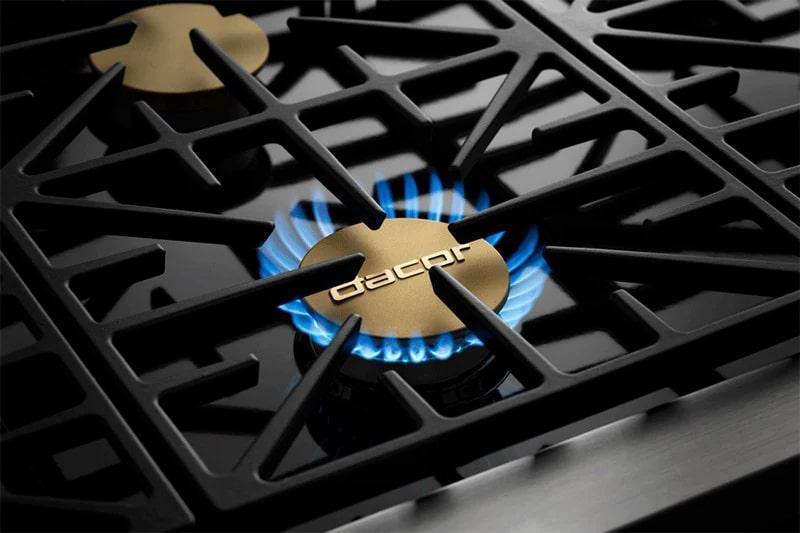

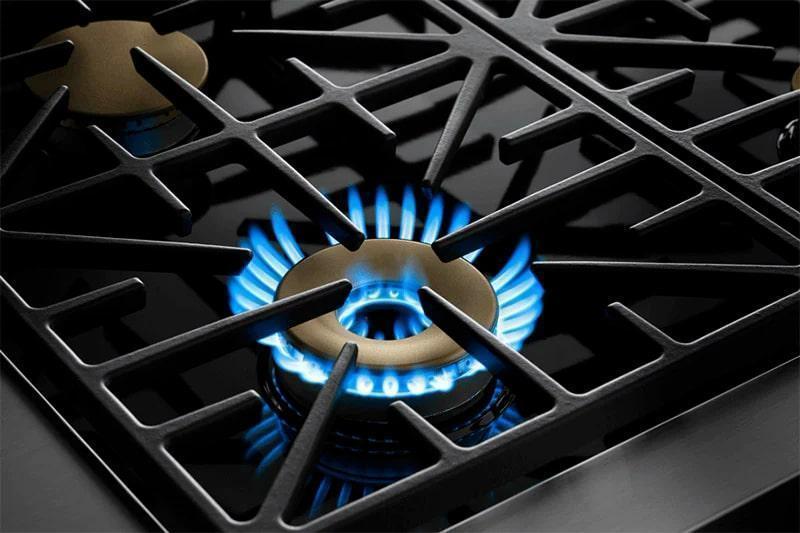

• Six sealed dual-stack brass burners
• 18,000 BTU front burners and 15,000 BTU rear/center burners
• Convection bake and convection broil
• Self-cleaning oven
• Continuous cast-iron grates

Installation Notes

• Installation must comply with applicable local codes and the National Fuel Gas Code where applicable.
• The range requires a dedicated grounded three-prong 120 VAC, 60 Hz, 15-amp electrical circuit.
• The LP installation specification lists 10 inches water column manifold pressure and 11 inches water column minimum gas-supply pressure.
• Use the factory-installed gas regulator and provide an accessible external manual gas shut-off valve.
• Installation should be performed by a qualified or authorized professional familiar with gas appliances.

Verified Compatible Models

HGPR36S/LP

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
