Dacor 30-inch Heritage Induction Pro Range — Stainless Steel, Canada HIPR30S-C

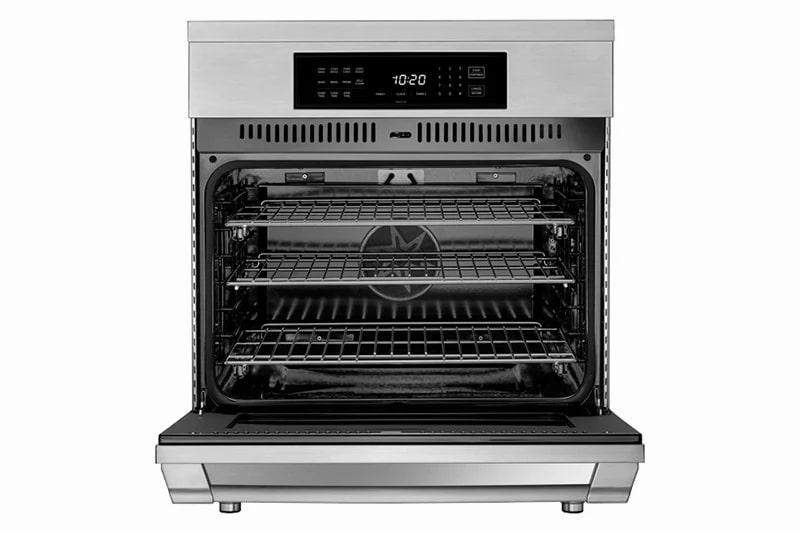

Dacor 30-inch electric induction range with a 5.2 cu. ft. oven, five induction coils, bridge element, convection cooking, and self-cleaning oven.

Is This the Right Part?

Check Before Replacing

• Verify the appliance rating label shows model HIPR30S-C before ordering related parts or service materials.
• Confirm the installation has a 240 V electrical supply and 50 A circuit as specified for this range.
• Confirm the available opening is at least 30 inches wide and 24 inches deep.

Pro Tip

Part Details

Key Features

• 5.2 cu. ft. oven capacity

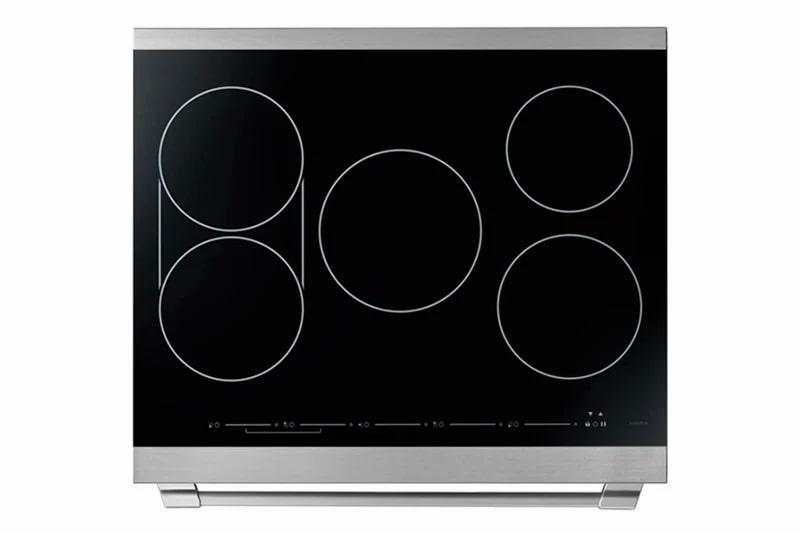

• Five induction coils plus one bridge element
• Induction Boost mode
• Pure Convection, convection bake, convection broil, convection roast, bake, and broil modes
• Smooth ceramic glass cooktop
• LED Tilt-Vue glass-touch oven controls—product literature specification varies by document naming but identifies the same control system family as HIPR30S-C/HIPR30S documentation—omitted as a conflict-sensitive detail from core identity claims

Installation Notes

• Electrical appliance; specified electrical requirements are 240 V, 60 Hz, with a 50 A circuit breaker.
• Required cutout is documented as 30 inches minimum wide by 24 inches deep.
• Use the model and serial number on the rating label to confirm installation and service documentation.
• Disconnect electrical power before servicing or installation work.

Verified Compatible Models

HIPR30S-C

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
