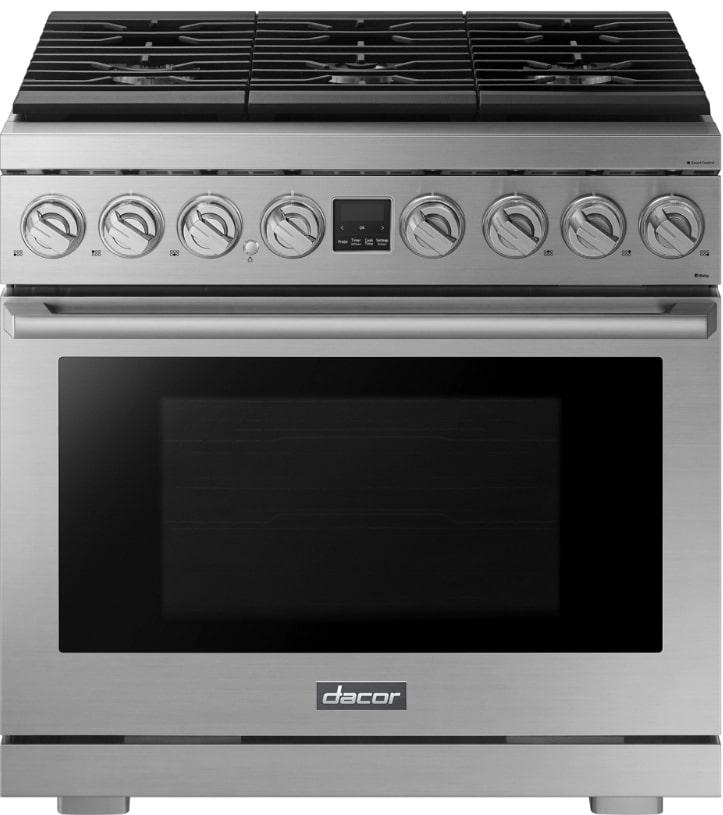

Dacor 36-Inch Transitional Gas Range DOP36P86GLS
36-inch Dacor transitional natural-gas range with a 5.9 cu. ft. oven, six sealed burners, three-part convection, self-cleaning, PMOLED touchscreen controls, and SmartThings Wi-Fi connectivity. Official documentation identifies the U.S./Canadian model as DOP36P86GLS/DA.
36-inch Dacor transitional natural-gas range with a 5.9 cu. ft. oven, six sealed burners, three-part convection, self-cleaning, PMOLED touchscreen controls, and SmartThings Wi-Fi connectivity. Official documentation identifies the U.S./Canadian model as DOP36P86GLS/DA.
Is This the Right Part?
Pro Tip
Part Details
Key Features
- 5.9 cu. ft. oven capacity

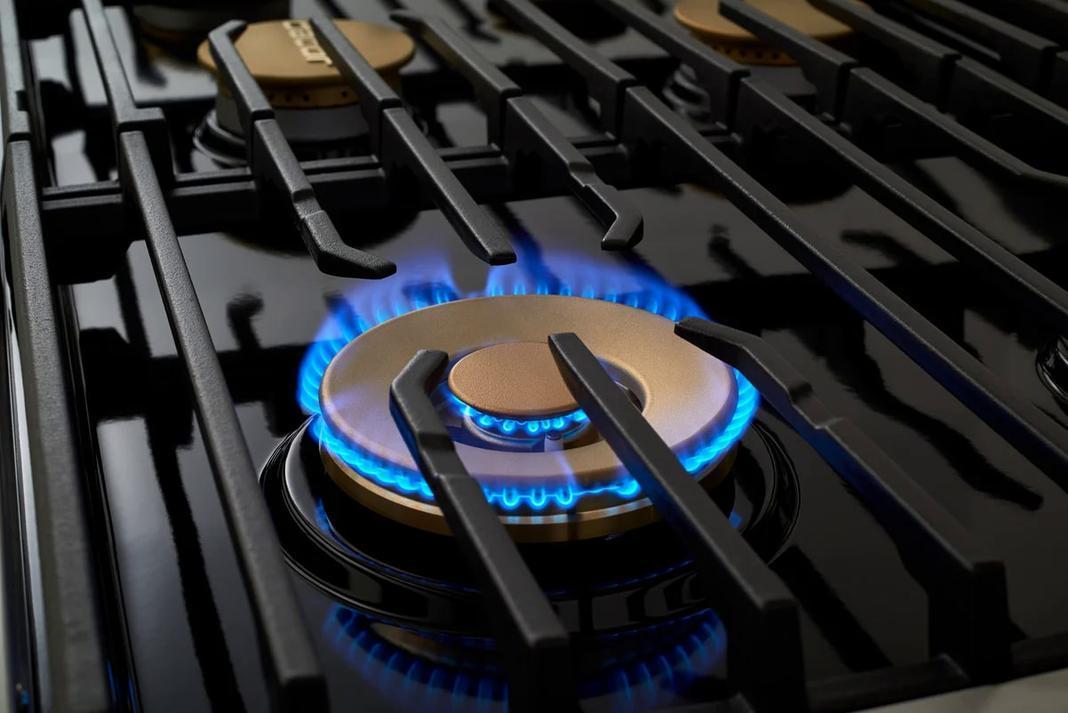

- Six sealed gas burners
- Three-part convection system
- 25,000 BTU bake burner
- 18,000 BTU broil burner
- 22,000 BTU left-front and right-front burners; 16,000 BTU for the other four burners at natural-gas rating per specification sheet[f] (source uses BTU ratings)
Installation Notes
- Natural gas model; liquid-propane conversion kit is included.
- Requires 120 V, 60 Hz, 10 A electrical supply.
- Overall dimensions are approximately 35 7/8 in. W × 36 in. H × 28 3/4 in. D.
- Installation must follow the Dacor installation guide, including gas, electrical, anti-tip, ventilation, and clearance requirements.
- Disconnect electrical power and shut off gas before service or installation work.
Verified Compatible Models
DOP36P86GLS/DA
Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
