Dacor 48-inch island-mount range hood DHI482

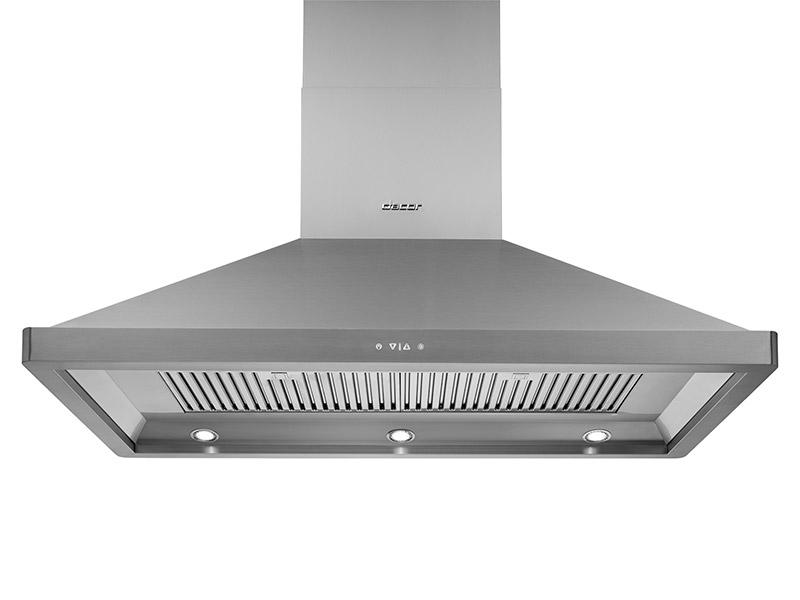

Dacor DHI482 Millennia ceiling-mounted island range hood with a 1,200 CFM dual-blower ventilation system, stainless-steel finish, four halogen lights, and two dishwasher-safe baffle filters.

Is This the Right Part?

Common Symptoms

• Blower system does not operate while the control panel is lit.
• Insufficient ventilation may occur when one or both blowers malfunction.
• Cooktop lighting may fail if the halogen lamp, socket, transformer, or related control components fail.

Check Before Replacing

• Verify the main power switch behind the filter is on and the control panel responds.
• If the control panel is lit but the blower does not operate, the manufacturer manual directs the owner to call for service rather than diagnose internally.
• Confirm that the filters are installed, clean, and not blocked before operating the hood.
• Check that the hood is connected to its dedicated grounded 120-volt circuit; electrical service should be handled by a qualified electrician.

Pro Tip

Part Details

Key Features

• 48-inch ceiling-mounted island hood
• 1,200 CFM total blower capacity from two blowers
• Four electronic blower speeds
• Ducted 8-inch exhaust

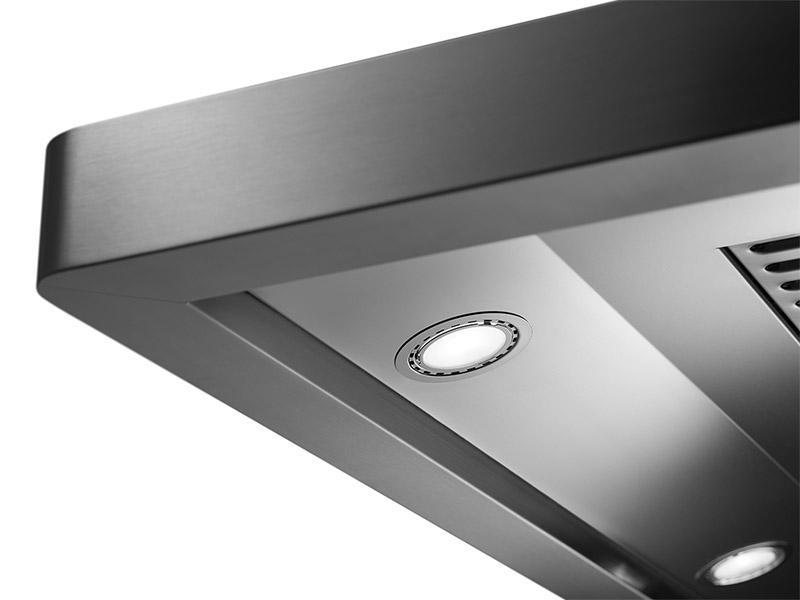

• Four 12-volt, 20-watt halogen lights

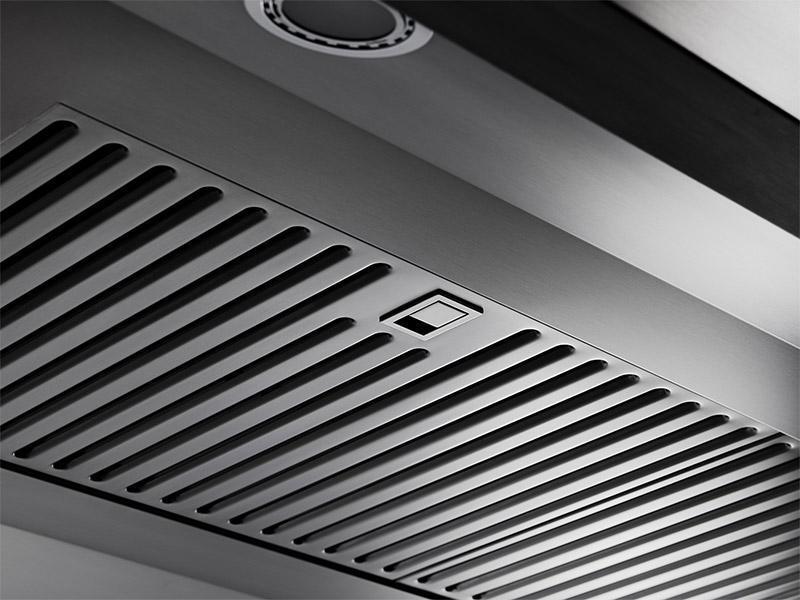

• Two dishwasher-safe baffle filters

Installation Notes

• Install the hood at least 30 inches above the cooking surface, or farther if required by the range or cooktop instructions.
• Use the supplied mounting bracket and attach it directly to ceiling studs or a properly reinforced mounting block.
• Electrical connection requires a dedicated, grounded 120 Vac, 60 Hz, 15-amp circuit and should be performed by a licensed or qualified electrician.
• The hood must be at least as wide as the cooktop or range beneath it.
• Disconnect electrical power before service or component replacement.

Verified Compatible Models

DHI482

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
